144pcs Ws2812b Addressable Rgb Led Pixel Strip With Datasheet

144pcs Ws2812b Addressable Rgb Led Pixel Strip With Datasheet thumbnail-1
144pcs Ws2812b Addressable Rgb Led Pixel Strip With Datasheet photo-1
US$ 19 - 22 MOQ: 1 Roll
Key Specifications
Get Latest Price
LED Light Source:
Epistar 5050
Type:
Flex LED Strips
Input Voltage(V):
DC5V
Contact Supplier Request Quote Chat Now
Shenzhen IPixel LED Light Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Yantian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar 5050
Type Flex LED Strips
Input Voltage(V) DC5V
Lamp Power 34.56W/M
Lamp Luminous Flux(lm) 18lm
Color Temperature(CCT) full color
Working Temperature(℃) -10, 40
Working Lifetime(Hour) 50000
Lamp Body Material Copper
Certification CE
Emitting Color Other, changeable
Place of Origin Guangdong, China
Brand Name iPixel LED
Model Number S1442812B

144pcs ws2812b addressable rgb led pixel strip with datasheet







Product Description

Addressable full color led strips(ws2812b) ——WS2811 IC built-in 5050 RGB LED chip.

Individually control —— 1IC & 1LED chip.

Standard Reel Lengt: 1meter/roll, also can be customized.

Cutted: 1 integrated RGB LEDs per segment, can be cutted per 1LED.

Sticky: with 3M adhesive on back side for sticky.

           screw+silicon clip, or 3M adhesive back side.

Type: waterproof--white PCB; non-waterproof--black PCB;

         waterproof--black PCB; non-waterproof--white PCB.

Brand: iPixel LED



Product Features



LED Chip SMD5050 RGB LED chip
IC Chip  WS2812B(WS2811 IC built-in 5050 RGB LED chip)
LED Quantity 144LEDs/m
Input Voltage DC5V
Watts 34.56W/M
IP Rate IP20(non-waterproof), IP65(Silicon-tube waterproof)
PCB Color White PCB, Black PCB
View Angle 120°
Standard Reel Length 1meter/roll, also can be customized
PCB Width 12mm
Operating Temperature -20 ~ +40°C
Storage Temperature -40 ~ +80°C
Color  Addressable full color





Product Pictures

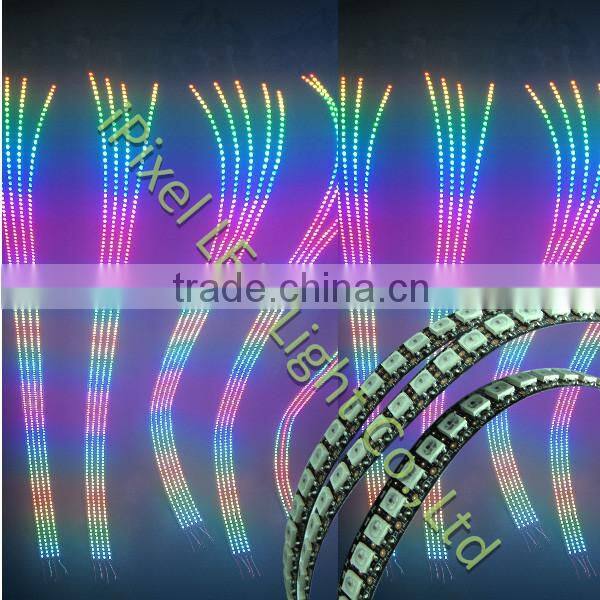

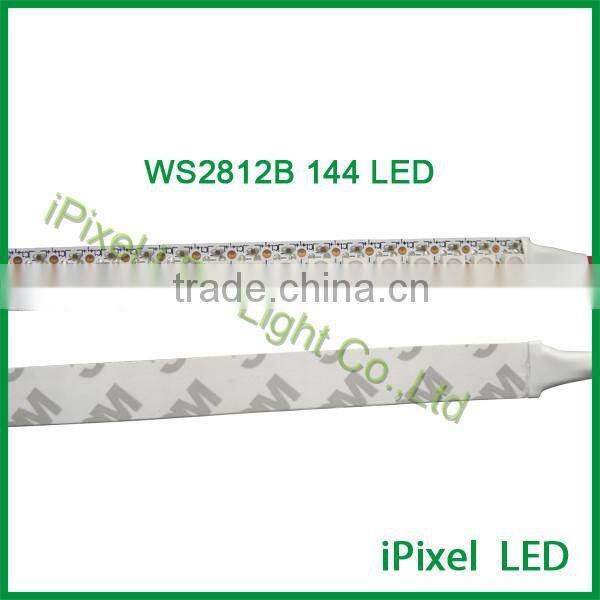

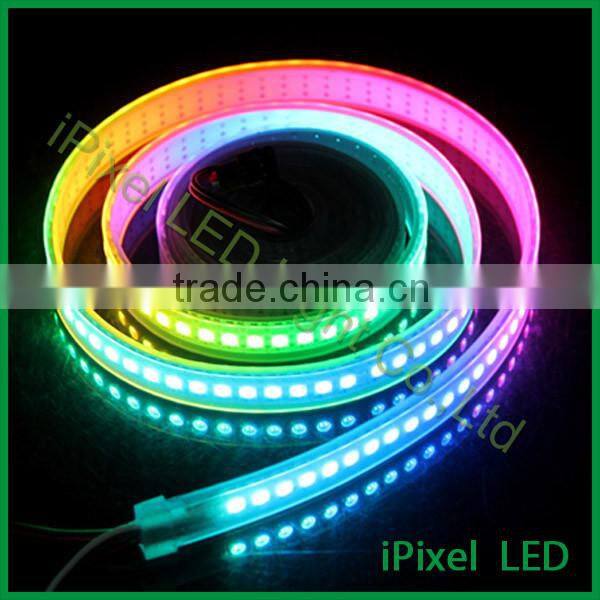

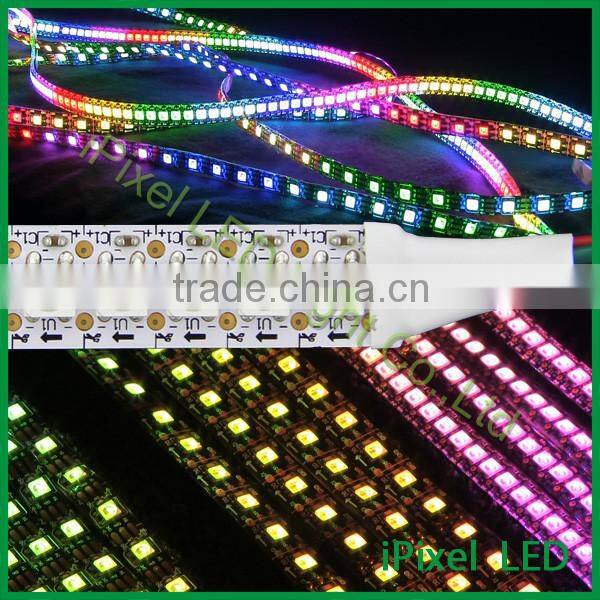

Addressable WS2812B 144LEDs/m led strip,

can be waterproof/non-waterproof; white pcb/black pcb.

It with ws2811 IC built in, individually 1LED & 1IC.

144pcs ws2812b addressable rgb led pixel strip with datasheet

144pcs ws2812b addressable rgb led pixel strip with datasheet

144pcs ws2812b addressable rgb led pixel strip with datasheet

144pcs ws2812b addressable rgb led pixel strip with datasheet



144pcs ws2812b addressable rgb led pixel strip with datasheet

144pcs ws2812b addressable rgb led pixel strip with datasheet

144pcs ws2812b addressable rgb led pixel strip with datasheet

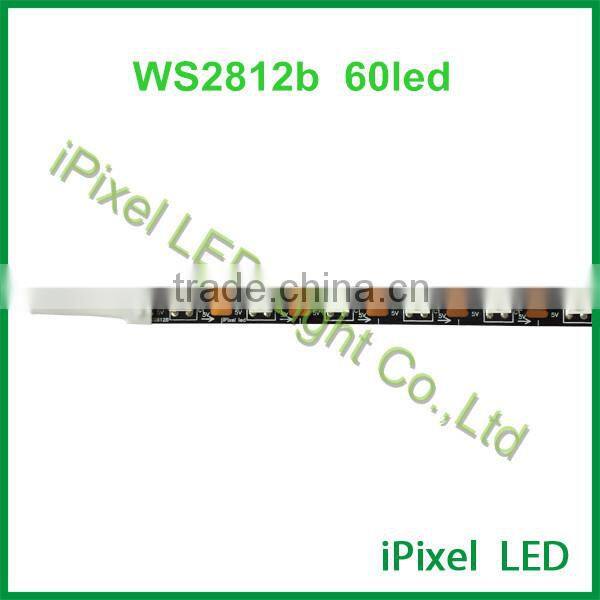

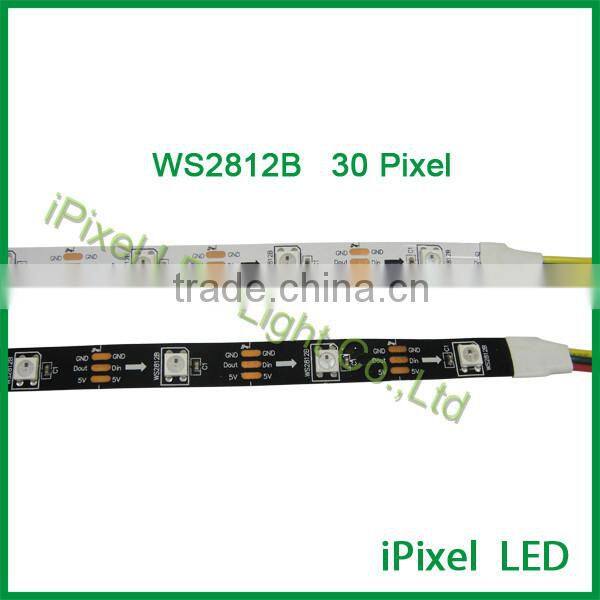

The compared of WS2812b 30leds/m, 60leds/m, 144leds/m:

TYPE 30LEDs/m 60LEDs/m 144LEDs/m
IC WS2812B WS2812B WS2812B
PCB Width 10mm 10mm 12mm
Standard Length 5meter/roll 5meter/roll 1meter/roll
PCB color white/black white/back white/black
Voltage DC5V DC5V DC5V
Watts 7.2W/M 14.4W/M 34.56W/M
Cutted per 1 LED per 1 LED per 1 LED



144pcs ws2812b addressable rgb led pixel strip with datasheet

144pcs ws2812b addressable rgb led pixel strip with datasheet

144pcs ws2812b addressable rgb led pixel strip with datasheet







Connection Way



SPI signal: LED Strip+LED power supply +LED controller

DMX control: LED Strip+LED pwer supply+DMX Controller+DMX decoder

LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino...

(offline / PC online)

LED power suppply: Meanwell power supply, T- series, A- series power supply...

(waterproof / non-waterproof)
