Digital ws2811 smart rgb pixel round led 12mm for channel letter
1. Individually control: 1PCS LED pixel & 1IC
2. IC chip: can be ws2801, ws2811, ucs1903, sm16716, lpd6803 IC .
3. Waterproof: Yes IP66, with full silicon glue waterproof protection.
4. Installation: Easy to install, you'd better drill the hole with 12mm.
5. With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.
6. Power supply: You must use a 5V DC power supply to power this pixel, do not use higher than 6V
or you can destroy the entire pixel.
7. Connetors: 3PIN or 4PIN JST female and male connectors.
each led pixel is seperate, you can connect them one by one via male and female connectors easliy.
3PIN: DAT, DC5V+, GND-
4PIN: DAT, CLK, DC5V+, GND
8. Factory sales directly, good quality and price, offer 2 years warranty and quikly after-sale service.
9. Color and effect: addressable lights you can set to any color, or animate, like running water,chasing
and scanning etc. depending on the different installation methods may compose different dynamic
effect of different color's character and design
10. Brand: iPixel LED
| Type | 3Pin connector | 4Pin connector |
| Product Name | 12mm round pixel led | 12mm round pixel led |
| IC Chip | ws2811,sm16716 | ws2801,ucs1903,lpd6803 |
| Led Chip | Epister F8mm Dot Led | Epister F8mm Dot Led |
| Voltage | DC5V | DC5V |
| Wattage | 0.3w/pcs | 0.3w/pcs |
| Wire | DAT,CLK,DC5V+ | DAT, CLK, DC5V+, GND- |
| Waterproof | Full silicon glue | Full silicon glue |
| Certification | CE,RoHS | CE,RoHS |
| Warranty | 2 years | 2 years |

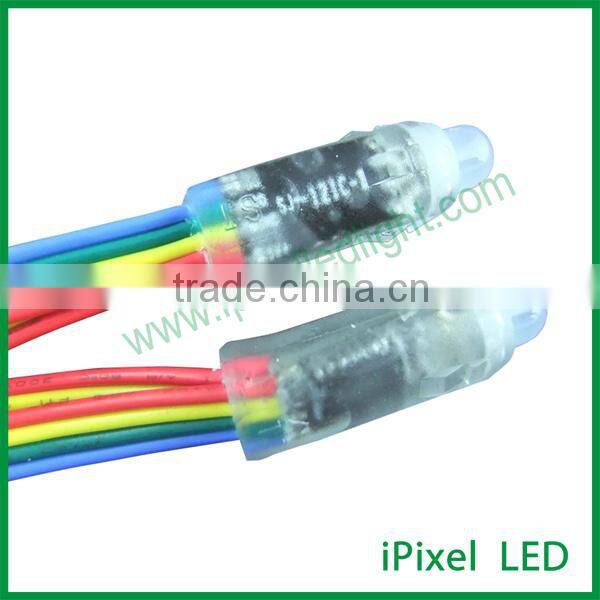

12mm round pixel led
Showing picture
26mm 3leds/pcs led pixel
35mm 9leds/pcs led pixel
SPI signal: LED Strip+LED power supply +LED controller
DMX control: LED Strip+LED pwer supply+DMX Controller+DMX decoder
LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino...
(offline / PC online)
LED power suppply: Meanwell power supply, T- series, A- series power supply...
(waterproof / non-waterproof)
