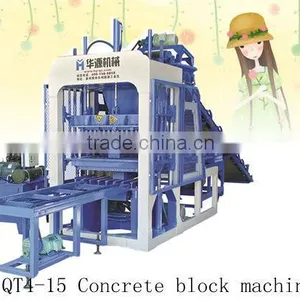

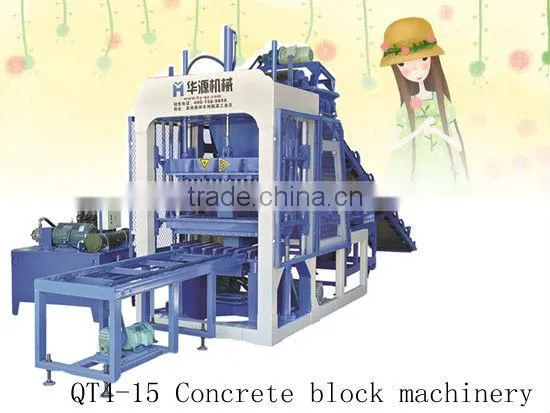

Help CenterHY QT 4-15Full Automatic Earth Interlocking Brick Making Machine
Related Products
-
Cement Fly Ash Concrete Hollow Block Making Machine From Quanzhou QT6-15US$ 30,000 - 36,000MOQ: 1 Set -
Curbstone Forming Machine Paving Making Machine(HY300T)US$ 24,000 - 28,000MOQ: 1 Set
-
PL 800 Batcher Machine for Concrete Low InvestmentUS$ 5,000 - 6,000MOQ: 1 Set
-
Cement Fly Ash Concrete Block Making Machine(QT6-15)US$ 30,000 - 36,000MOQ: 1 Set
-
Color Paver, Pavement Brick, Concree Block Making Machine QT4-15US$ 29,000 - 35,000MOQ: 1 Set
Specifications
Full automatic earth interlocking brick making machineFly ash brick making machine
concrete brick making machine
concrete bl
Full automatic block making machine low cost
Fly ash brick making machine
concrete brick making machine
concrete block making machine
Full automatic earth interlocking brick making machine
Main technical Specifications:
1. It consists of mechanic, electricity and hydraulic in one machine, and it runs automatically in circulation each procedure is interlocked, and the pressure is automatically assigned.
2. Uses Japan’s Mitsubishi PLC control system, PCL touch screen , easy to change mechanical action according to different raw materials.
3. Fault self-diagnosis, COM port for remote control guarantees technical support and maintenance.
Production raw materials: the stone powder, sand, gravel, cement, can be a lot of adding fly ash, slag, steel slag, coal gangue, ceramsite, perlite and other industrial waste.
multiple uses, it can produce all type of standard building blocks by changing mould.
1,Multi-holes block and hollow block .
2,Ceram site heat preservation block.
3,Composite heat preservation concrete block
The above production come with good heat preservation performance, and it meets the new national energy conservation policy.
Main technical parameters
Cycle Time |
15-20(s) |
Total Power |
23.6(kw) |
Vibration Type |
hydraulic vibration |
Vibration Frequency |
3800-4500(Times/sub) |
Machine Dimension |
8200×4350×2700(mm) |
Pallet Size |
850×560×20(mm) |
Vibration Force |
68KN |
Gross Weight |
6200(kg) |
Production/Mould |
4pcs/m (390x190x190mm) 12pcs/m (240x115x90mm) 26pcs/m (240x115x51mm) 15pcs/m (200x100x60mm)
|
Productions/8hours |
5236-7680pcs(390x190x190mm) 17280-23040pcs(240x115x90mm) 37440-49920pcs(240x115x51mm) 9636--28800pcs (200x100x60mm) |
