Specifications

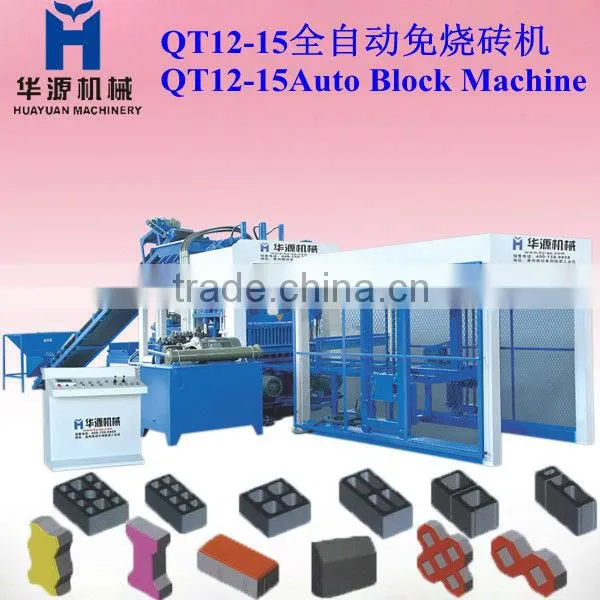

HY-QT 12-15 Frequency block making machineconcrete block making machine
used concrete block making machine
cement block
Hot sale in africa for QT12-15brick making machine south africa
1.Main technical parameters:
Cycle Time |
15-20(s) |
Vibration Type |
hydraulic vibration |
Total Power |
46.6(kw) |
Vibration |
150(KN) |
Vibration Frequency |
3800-4500(r/s) |
Gross Weight |
14200(kg) |
Pallet Size |
1350×880×25(mm) |
Machine Size |
11500×4550×2800(mm) |
Rated Pressure |
31.5(mpa) |
Stacking Machine Power |
3(kw) |
2,Main Technical Specifications:
A. Intelligence PLC touch screen and pure electrical element (high automatic and easy to operate ) ;
B. Arch breaking type of rapid feeding device (better feeding multi-hole bricks with better uniformity).
C. Forming production faster and with higher compactedness ;
D. High-heat treatment special technology (to make the mould more durable and more firm) .
Raw materials :crushed stone ,sand, cement, many types of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite , etc.
Multiple uses. It can produce all types of standard building blocks by changing mould.
A, Multi-holes block and hollow block ;
B, Ceramsite heat preservation block;
C, Composite heat preservation concrete block.
3.Advantage of manufacturing machine specification QTY12-15 concrete hollow brick machinery:
A:Hydraulic from Taiwan,the quality is very good.
B:the PLC is Siemens
C:the steel is our best national standard No.45 steel.
D:the welding is the best welding technology in our country,anti-wear, aseismatic,anti Moist
E:the mould is high temperature carburizing heat treatment through 900 Degrees Celsius
4. Complete production line of manufacturing machine specification QTY12-15 concrete hollow brick machinery:
1. Area: Workshop area: 150-200m2, all factory area 3000m2, the bigger, the better.
2. Workers : three or four
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4. raw material consumption per day:270-280T
5. water consumption per day:3%-5% of raw material .Weight.
5.Concrete Blocks Sizes and capacity:
Picture |
Bricks |
Sizes |
Pcs/mould |
Production per Shift(8 hours) |
multi-holes block |
240x115x90mm |
30 |
43200-57600pcs |
|
standard block |
240x115x51mm |
63 |
93600-124800pcs |
|
hollow block |
390x190x190mm |
12 |
17280-23040pcs |
|
color paver block |
200x100x60mm |
42 |
50400-60480pcs |
| Features: | ||||||||
| 1) Through maximizing the use of effective vibration, transfer evenly the vibration strenghth to all parts of a molding box to allow blocks to have higher density and the molding box have a longer service life. | ||||||||
| 2) Special storage and distribution system: A special feeding device is added and storage is computer-controlled. Therefor feeding can be done evenly and finished products have little error in strength. | ||||||||
| 3) Optimized power design, oil vibration and eliminate energy consumption computer-controlled synchronized vibration realize feeding under variable and low frequency and molding under high frequency table-mold synchronized vibration concrete can be made fully compact within 2 or 3 seconds to have a high strength. | ||||||||
| 4) Imported appliances and hydraulic parts and elements ensure the failure-free operation of the two systems. Advanced random inspection system enables remote control and failure diagnosis. | ||||||||
| 5) Mechanic operation can be adjusted on menu, eliminating the need of professional personnel human-machine interaction is realized operate automatically. | ||||||||
| 6) Electrical, mechanical and hydraulic integration PLC computer-controlled every step is under monitoring failure diagnosis, self-locking and output calculation use less cement. |
