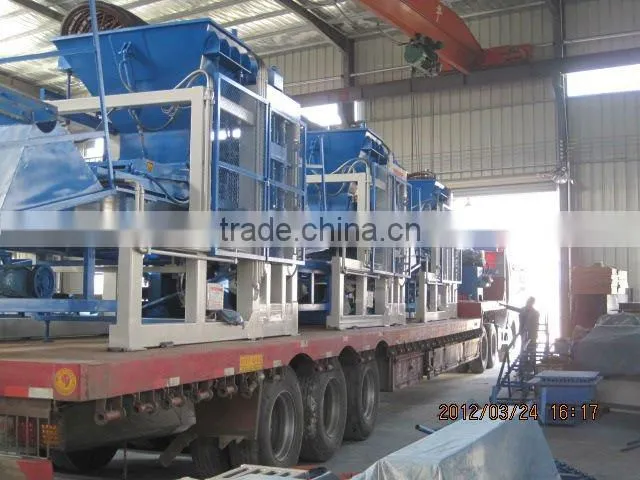

Help CenterQT4-15 Automatic Brick Forming Machine in Malaysia
Related Products
-
HY300t Type Semi-automatic Glass Block Making MachineUS$ 20,000 - 24,000MOQ: 1 Set -
HYM Cement Block Making Plant QT6-15US$ 30,000 - 36,000MOQ: 1 Set
-
JS 500 Brick MixerUS$ 10,000 - 15,000MOQ: 1 Set
-
Machine Breeze Block in India QT4-15US$ 29,000 - 35,000MOQ: 1 Set
-
QT4-15 Concrete Block Making Machinery in MalaysiaUS$ 29,000 - 35,000MOQ: 1 Set
Specifications
1,High automatic and easy to operate ;2,automatic PLC control;
3.multifuntion,superior quality;
4.double moulding system.
Main technical Specifications:

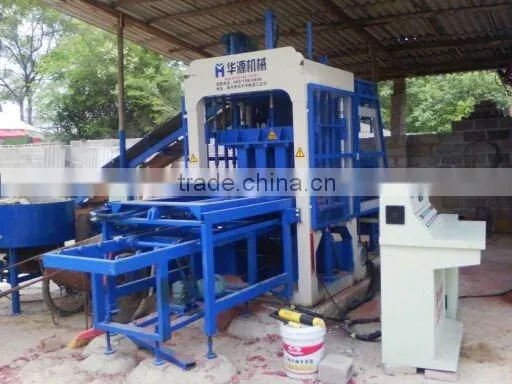

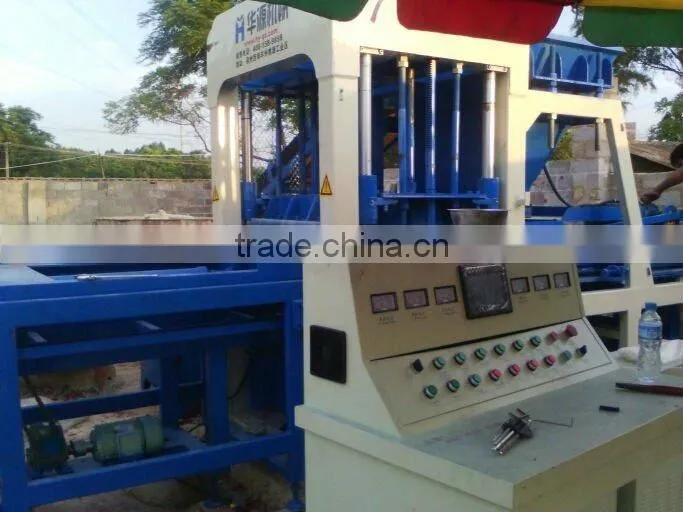

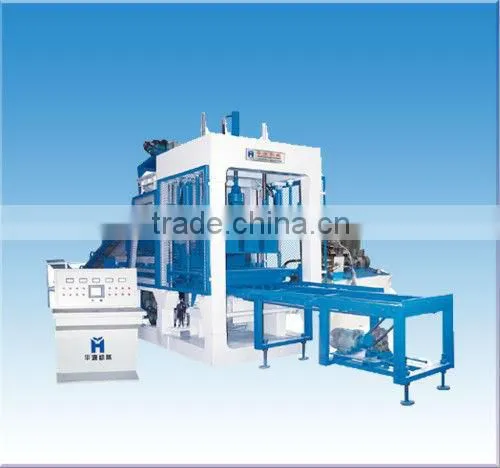

1. It consists of mechanic, electricity and hydraulic in one machine, and it runs automatically in circulation each procedure is interlocked, and the pressure is automatically assigned.

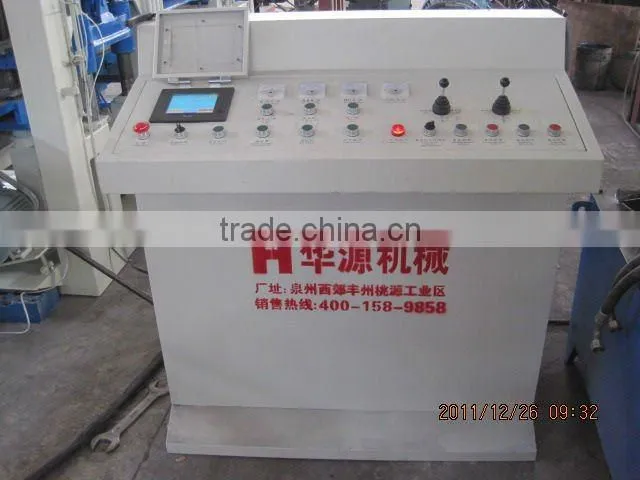

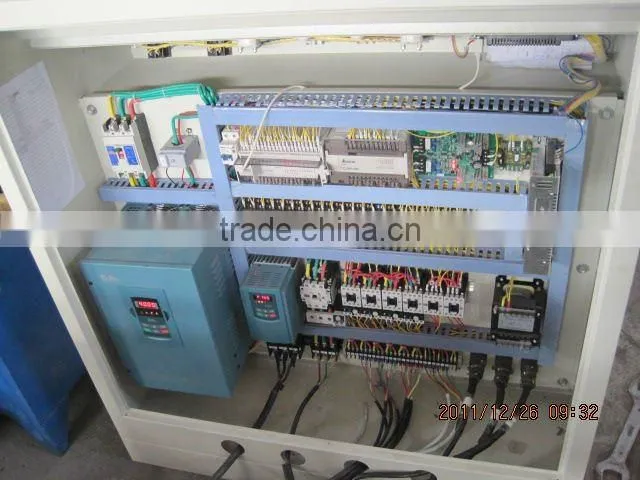

2. Useing intellent PLC control system, PCL touch screen , easy to change mechanical action according to different raw materials.
3. Fault self-diagnosis, comport for remote control guarantees technical support and maintenance.
Raw materials :crushed stone ,sand, cement, etc; many type of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite, ect. .

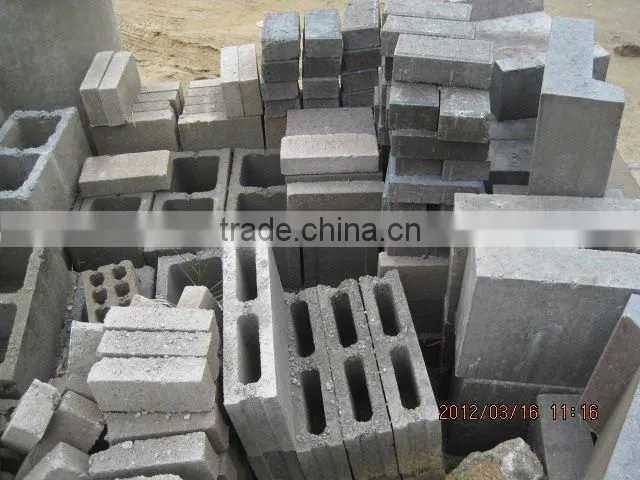

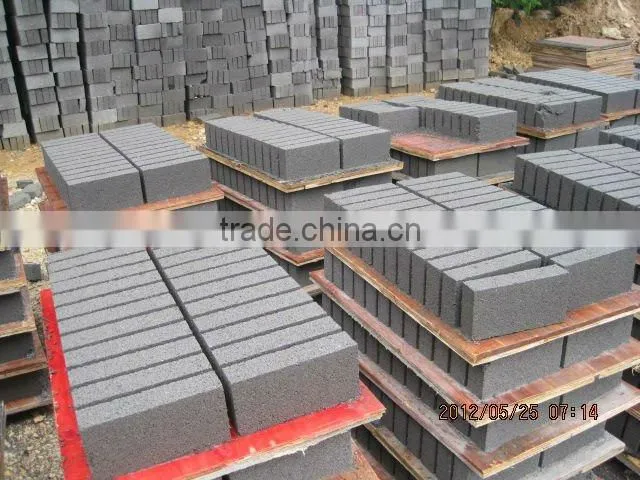

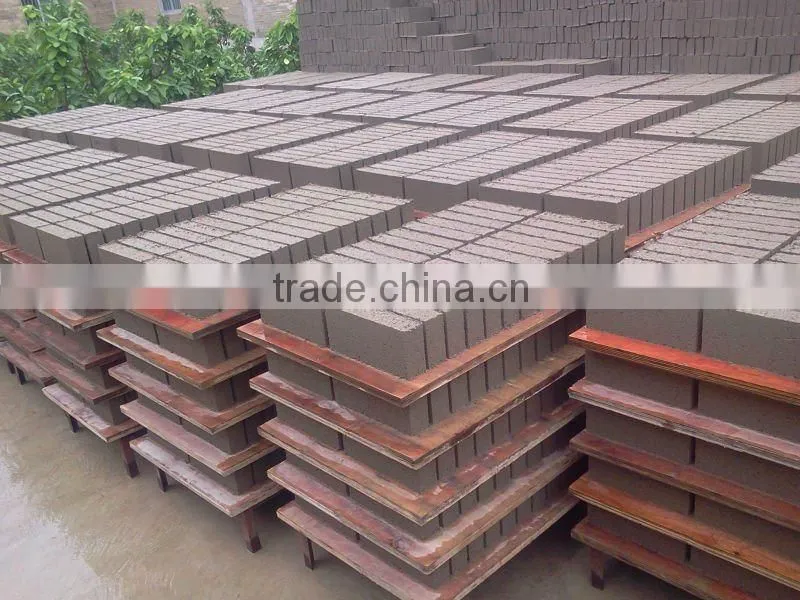

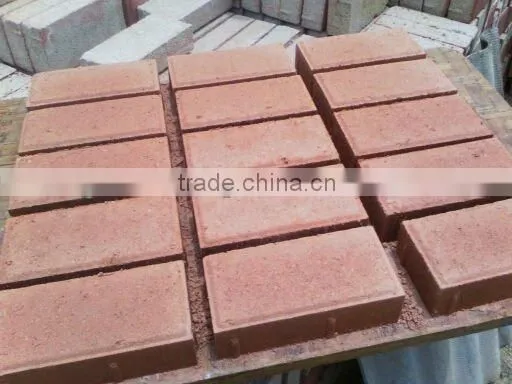

multiple uses, it can produce all type of standard building blocks by changing mould.
1,Multi-holes block and hollow block .
2,Ceram site heat preservation block.
3,Composite heat preservation concrete block
The above production come with good heat preservation performance, and it meets the new national energy conservation policy.
Cycle Time |
15-20(s) |
Total Power |
22(kw) |
Vibration Type |
hydraulic or moto vibration |
Vibration Frequency |
3800-4500(Times/sub) |
Machine Dimension |
8200×4350×2700(mm) |
Pallet Size |
850×560×20(mm) |
Vibration Force |
68KN |
Gross Weight |
6200(kg) |
Production/Mould |
4pcs/m (390x190x190mm) 12 pcs/m (240x115x90mm) 24 pcs/m (240x115x53mm) 15 pcs/m (200x100x60mm) |
Products/8h |
5236-7680pcs(390x190x190mm) 17280-23040pcs(240x115x90mm) 34560-46080pcs(240x115x53mm 9636-28800pcs (200x100x60mm) |
