Specifications
Manual concrete block making machine from china HYM4-30price concrete block machine
used concrete block making machine for sa

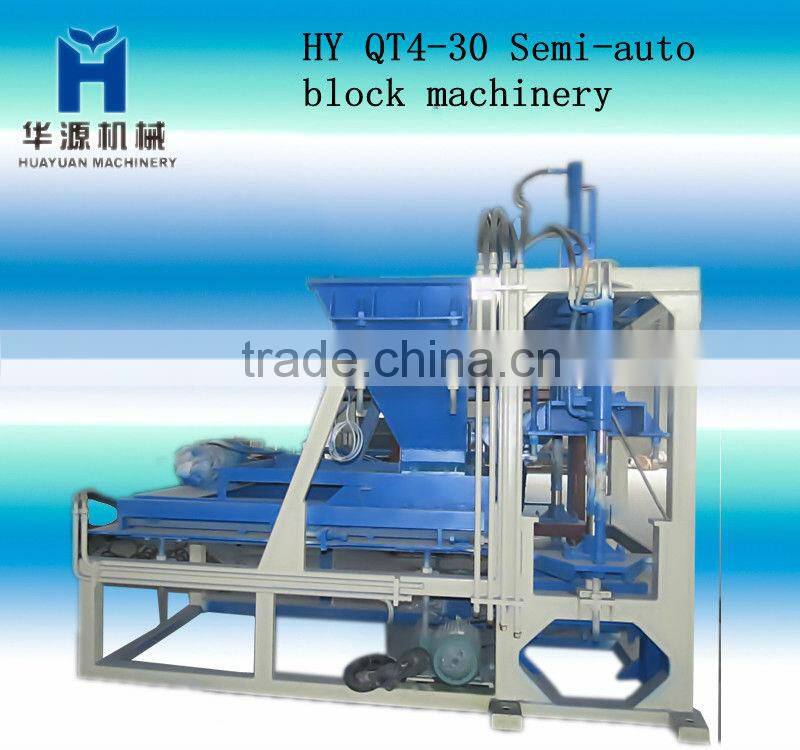

Manual concrete block making machine from china HYM4-30
price concrete block machine
used concrete block making machine for sales
1.Main technical parameters
Cycle Time |
20-30S |
Vibration Type |
hydraulic vibration |
Total Power |
19.9kw |
Oil pump motor |
Y132S2-4N+5.5kw |
Vibration Frequency |
3800-4500(times/sub) |
Side cylinder |
63*250Φ40 |
Pallet Size |
850×560×20(mm) |
Machine Size |
2700x1500x2200mm |
Rated Pressure |
8.5(mpa) |
|
|
2.Brick Sizes and capacity:
Brick |
Sizes |
Output/ mould |
Output/Shift(8hours) |
picture |
Hollow Block |
390x190x190mm |
4 |
3456-4320 |
|
Color brick |
200x100x60mm |
15 |
11520-14400 |
|
Solid brick |
240x115x51mm |
26 |
19920- 28000 |
|
Multi-holes block |
240x115x90mm |
12 |
9600-14400 |
|
Manufacturing Technique
- Production Process
| Mixing system |
| Conveyor Belt
|
| Block Making System
|
2.Production Flow Introduction
Mixing system :Mixer will mixingvarious raw materials to mixed, that to be a mixture or appropriate consistency machine.
Conveyor Belt:Conveyor Belt is supply the Stir well materials to timing feed in the system in the concrete block machine.
Block Machine:Block Machine is pressing raw material forming, change different mold production various specifications of cement block product
3,Production Main Processing Equipments
Technical Characteristic & Paramete
No. |
Name |
Technical Parameter |
Introductions |
product display |
|
1 |
HY-Conveyor Belt |
Power |
2.2KW |
Conveyor Belt is supply the Stir well materials to timing feed in the system in the concrete block machine.
|
|
Length |
6M |
||||
Revolvingspeed |
1430r/min |
||||
Frequency |
50Hz |
||||
|
2 |
HY-Block Making System |
power |
19.9kw |
Block Machine is pressing raw material forming, change different mold production various specifications of cement block product
|
|
Vibration frequency |
3800~4500r/min |
||||
Daily Capacity (8 hours) | |||||
Blocks |
2800-3800 |
||||
Paver bricks |
8600-11500 |
||||
Interlocking block |
10800-14400 |
||||
Solid bricks |
18700-2500 |
||||
Pallet size |
850×560×20(mm) |
||||
Dimension |
2700x1500x2200mm |
||||
|
JS350 Mixing System |
In/Out bunker |
420L/250L |
Mixer will mixingvarious raw materials to mixed, that to be a mixture or appropriate consistency machine.
|
|
Productivity |
5-6m3/h |
||||
Mixer motor |
11kw |
||||
Dimension |
1200-1500 |
||||
Total weight |
100kgs |
||||
