QT4-15 Interlocking Brick Machine
1,cycle time:15-25s
2,pressure:25MPa
3,Power:22.9kw
4,pallet size:850*560*20mm

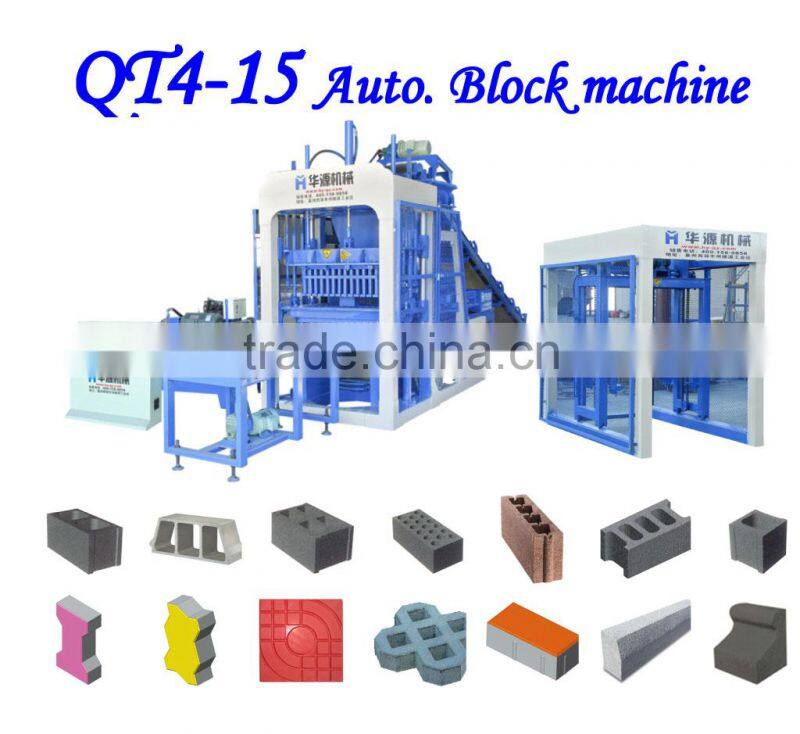

Small automatic interlocking brick machine QT4-15 interlocking brick machine price in africa
1,Induction of QT4-15 interlocking brick machine :
Characters: Model QT4-15 automatic interlocking brick machine is a kind of economic-type Machine exploited according to the requirement of small and medium-sized enterprise. It carries out the automatic production by adopting PLC control. It adopts hydraulic drive, double-layered material feeding (color face bricks), vibration press, and it has the double-control function of height and density. It has great excellence such as high vibration force, easy operation, convenient maintenance, reliable running, economy and utility, low investment and quick effect etc.
Product scope: QT4-15 interlocking brick machine can produces various bricks/blocks and interlocking brick including color-face bricks (layered material feeding), through-body tiles, dock linkage blocks, road curb bricks,solid bricks, hydraulic blocks,hollow blocks, interlocking brick, and standard bricks etc.
2, QT4-15 interlocking brick machine Description:
Brand |
HYM |
Cycle Time |
15-20(S) |
Total Power |
22.9kw |
Motor Frequency |
50Hz |
Vibration Type |
hydraulic vibration |
Gross Weight |
6200KG |
Pallet Size |
850×560×20(mm) |
Machine Dimension |
8200×4300×2600(mm) |

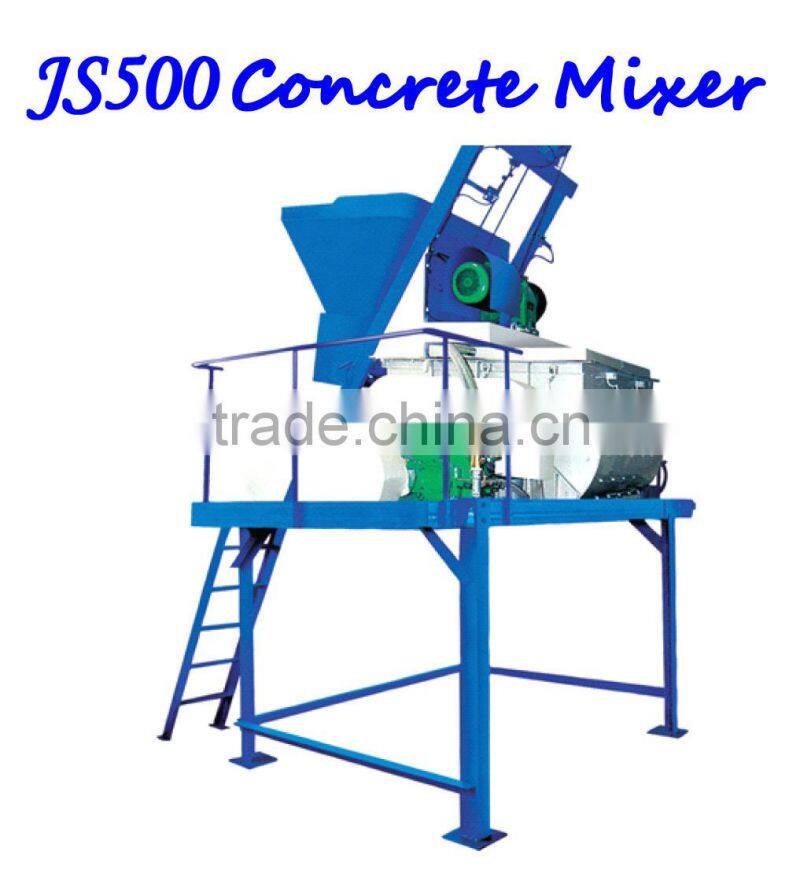

2,JS500 Concrete Mixer used for QT4-15 interlocking brick machine :
Feeding Capacity |
750(L) |
Exceeding Capacity |
500(L) |
Productivity |
25m³/h |
Mixing motor |
18.5(kw) |
Dimension(working) |
4460*3050* 5225(mm) |
Weight |
4000kg |
3, QT4-15 interlocking brick machne use Conveyor Belt for send Raw Materials :
Power |
2.2KW |
Length |
6M |
1430r/min |
|
50Hz |
4,Sample brick sizes` Capacity of QT4-15 interlocking brick machine :
Brick |
Sizes |
Output/ mould |
Output/Shift(8hours) |
Perforated brick |
240x115x90mm |
12
|
17280-23040pcs |
Solid brick |
240x115x51mm |
26
|
37440-49920pcs |
Hollow brick |
390x190x190mm |
4 |
5760-7680pcs |
interlocking brick |
200x100x60mm |
15 |
14400-18000pcs |
5,Equipments of QT4-15 interlocking brick machine price
| NO. | Equipment Name | Parameters | Qty. | Unit | |
| 1 | Batcher(PL1200) | Aggregate Hopper | 3m3 | 3 | sets |
| Weighing Hopper | 1200kg ±2% | 1 | set | ||
| Weighing Sensor | CST-1000 | 4 | sets | ||
| Vibrator,B-0.5 | 0.5kw | 3 | set | ||
| Motor | 1. 5kw | 5 | set | ||
| Conveyor Belt | B500x11.8m | 5 | set | ||
| Controller | 1 | set | |||
| Frame | Steel structure | 1 | set | ||
| 2 | Concrete Mixer | Mixing Bucket | JS500 | 1 | set |
| Mixing Motor | 18.5kW | ||||
| Controller | |||||
| Lubrication System | |||||
| Elevator | 5.5kw | ||||
| Bracket | |||||
| Water pump | 2.2 kw | ||||
| 3 |
QT4-15 auto. interlocking brick machine |
QT4-15 interlocking brick machine | Frequency control | 1 | set |
| Vibration motor | 4kw | 2 | sets | ||
| Material feeder | 1.5 kw | 1 | set | ||
| Pallet feeder | 2.2kw | 1 | set | ||
| Block conveyor | 1.5 kw | 1 | set | ||
| Hydraulic System | 7.5kw | 1 | set | ||
| PLC controller | 1 | set | |||
| Conveyor belt | 6m/2.2kw | 1 | set | ||
| Mold | free | 1 | set | ||
| Manual forklift | 1ton | 2 | sets | ||
| 4 | Automatic stacker |
Frame | SBJ6 | 1 | set |
| Moving motor | 1.5 kw | 1 | set | ||
| Elevating motor | 1.5 kw | 1 | set | ||
6, QT4-15 interlocking brick machine had saled to Congo, Algeria,Phillipiness,and All Over The World:

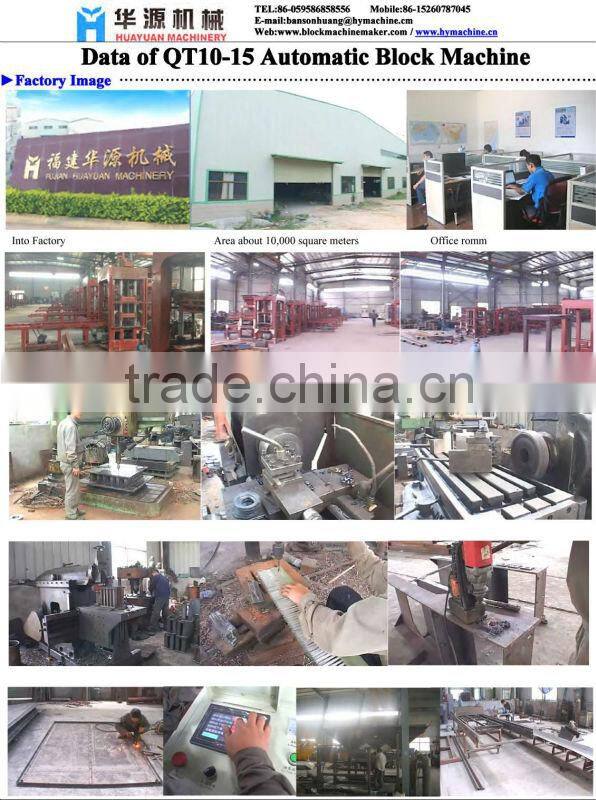

7,Photos of factory for interlocking brick machine :
8,Erection/Commission/Training of Huayuan interlocking brick machine
1 |
After the interlocking brick machine arrived at the Buyer plant, the Seller will send professional technician to assemble the interlocking brick machine and train the Buyer workers. |
2 |
The buyer have to pay our professional technicians extra service charge USD 80/day/person and arrange all the foods and staying. |
3 |
The buyer should buy the round-trip tickets before our technicians will go to installing the interlocking brick machine , |
4 |
The Buyer is also required to apply necessary files to apply visas for the technicians and also responsible for the safety of technician when they are in buyer`s country. |

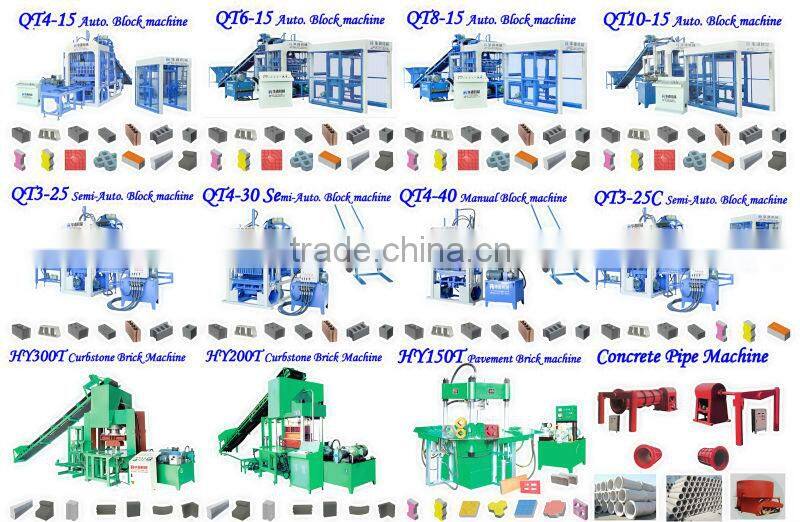

9,Recommended of our interlocking brick machine :
