Specifications
HYM cement block machinecement brick making prodction line
soil cement brick machine
china cement block making machine (reasonable price HYM)
HYM cement block machine
cement brick making prodction line
soil cement brick machine
1.Main technical Specifications:
1,its face mix device is able to produce pavers with color layer. |
2,Compact design semi-automatic control result in easy operation. Low investment brings you cost-saving |
3,Our machines , with harmonic cooperation with mechanical, electrical and hydraulic machines functions, guarantees a reliable and high output of concrete products |
Raw materials :crushed stone ,sand, cement, etc; many type of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite , ect. .
multiple uses, it can produce all type of standar d building blocks by changing mould.
1,Multi-holes block and hollow block .
2,Ceram site heat preservation block.
3,Composite heat preservation concrete block
The above production come with good heat preservation performance, and it meets the new national energy conservation policy.
2.Main technical parameters
Cycle Time |
20-30s/ time |
Capacity/8 hours |
Paving block 150-200square Hollow block 2400-3000pcs |
Vibration frequency |
4500-5100 Times/sub |
Oil pump motor |
Y132S2-4 N=5.5kw |
Jack cylinder |
80X300 Φ50 |
Side cylinder |
63X250 Φ40 |
Rated pressure of hydraulic system |
8.5Mpa |
Total Power |
16.3KW |
Pallet Size |
680 x 535 x 20mm |
Gross Weight |
About 3000kg |
Machine Dimension |
4000 x 3500 x 2300mm |
Load capacity |
Standard block 21pcs, Hollow block 3pcs |

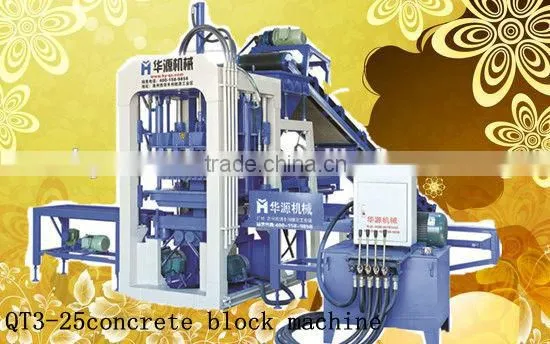

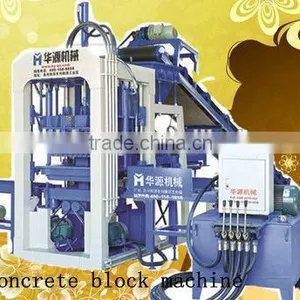

3.Product shows:
