1. moving concrete block machine QT4-40
2.lifetime:more than 20years
3.pallet:850*560*20
4.power:15.5kw
5.approvel:ISO&SGS&BV

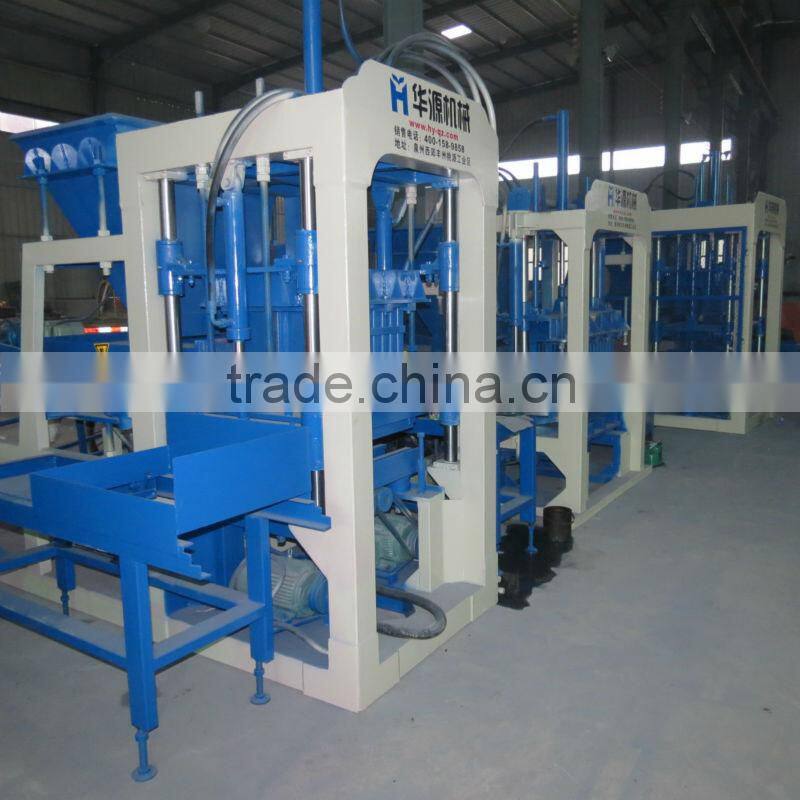

QT4-40 Easy Operated moving concrete block machine
1..Main technical Specifications:
1. It consists of mechanic, electricity and hydraulic in one machine, and it runs automatically in circulation each procedure is interlocked, and the pressure is automatically assigned.
2. Easy to change mechanical action according to different raw materials.
3. Fault self-diagnosis, comport for remote control guarantees technical support and maintenance.
Raw materials :crushed stone ,sand, cement, etc; many type of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite, ect. .
multiple uses, it can produce all type of standard building blocks by changing mould.
1,Multi-holes block and hollow block .
2,Ceram site heat preservation block.
3,Composite heat preservation concrete block
The above production come with good heat preservation performance, and it meets the new national energy conservation policy.
2.Technical parameters of QT4-15 moving concrete block machine :
Machine Dimension |
800×1600×2200(mm) |
Motor Frequency |
50HZ |
Cycle Time |
40-45(s) |
Total Power |
15.5(kw) |
Gross Weight |
1500kg |
Vibration Type |
hydraulic vibration |
Vibration Force |
8.5KN |
Pallet Size |
850×560×20(mm) |
3.Sample Brick Sizes and capacity:
Bricks |
Brick sizes |
Production per Mold(pcs) |
Production per Shift(8 hours) |
Picture |
Perforated brick |
240x115x90mm |
12 |
4200-6000Pcs |
|
Solid brick |
240x115x51mm |
26 |
9100-13000Pcs |
|
Hollow brick |
390x190x190mm |
4 |
1400-2000Pcs |
|
4,QT4-40 moving concrete block machine other information:
1. Area: Workshop area: 30-50m2, all factory area 1000m2, the bigger, the better.
2. Workers : three or four.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight:
(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
5. raw material consumption per day:30-40T
6. water consumption per day:3%-5% of raw material Weight.

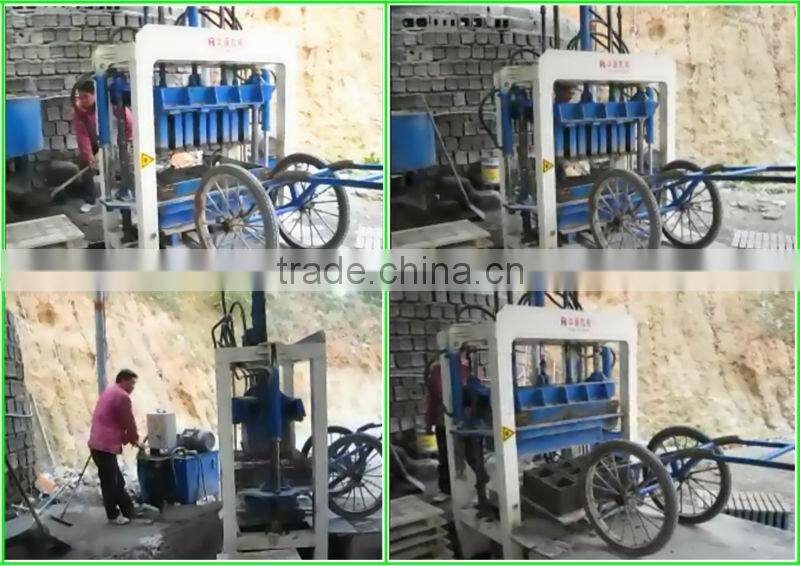

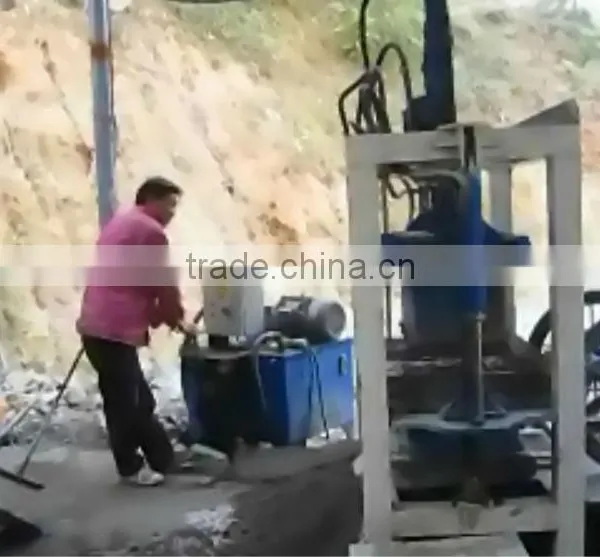

5.QT4-40 moving concrete block machine production Shows:
6.Block & Brick Sample:
8.The Customers From All Over The World:
9,Recommended Others concrete block making machine:
