Specifications
ncrete block making plant2.used concrete block making machine
ncrete block making machine
4.power:37.4kw
Chinese Brick Machine concrete brick press machines QTY6-15 Concrete hydraulic brick making machine
1,Main component
1. Recycle material feeding system: Economize in material for different or same density products.
2. PLC (computer automatic control): Hundreds program and process are ready to install, suitable for complex dynamic environment, and easy to handle.
3. Multi-source vibration system: For ensure the accuracy, the vibration frequency is adjustable.
4. Automatic diagnosis system: Unique system, Real-time monitoring to find out the fault, achieved remote- control by using telephone line..
2.Main technical parameters
Cycle Time | 15-20 Sec | Vibration Type | hydraulic vibration |
Total Power | 37.4kw | Vibration | 68(KN) |
Vibration Frequency | 3800-4500(times/sub) | Gross Weight | 7500(kg) |
Pallet Size | 880×680×20(mm) | Machine Size | 9450×3300×2700mm |
Rated Pressure | 31.5(mpa) | Stacking Machine Power | 2.25kw |
3.Brick Sizes and capacity of QT6-15 cement block making machine
Brick | Sizes | Output/ mould | Output/Shift(8hours) |
Blocks | 390x190x190mm | 6 | 8,640-11520 |
Porous bricks | 240x115x90mm | 15 | 21,600-28,800 |
Interlocking block | 200x100x60mm | 21 | 25,200-30,240 |
Solid bricks | 240x115x53mm | 30 | 47,200-63,600 |
Brick Sample

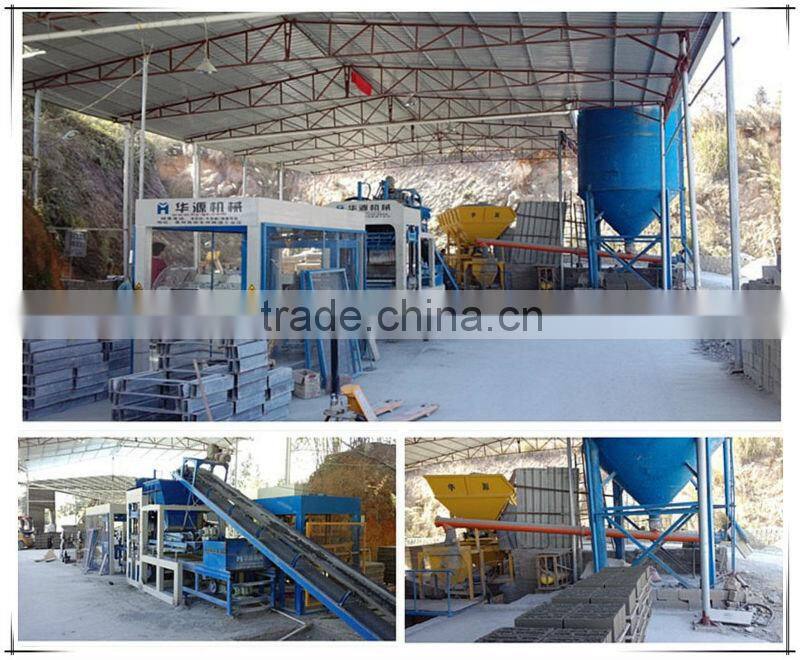

QT6-15 concrete block making production line:
4. Other Accessory Machine QT6-15 cement block making machine

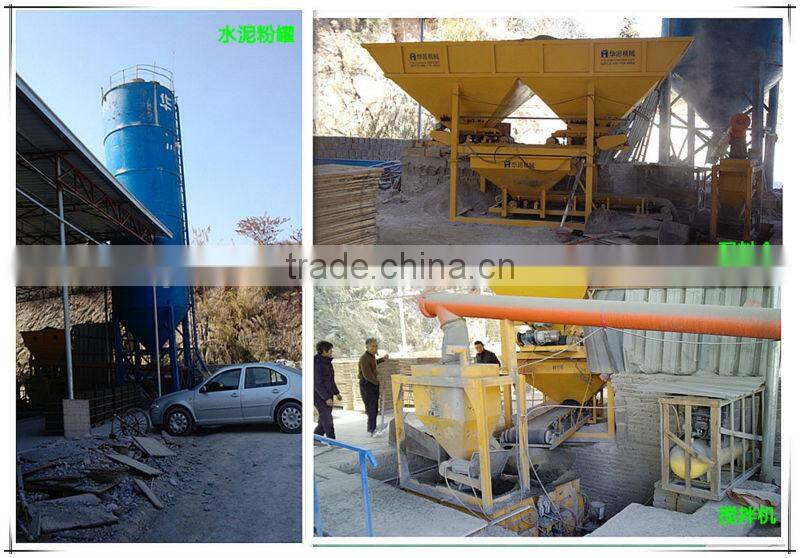

Bathing Plant
- PL series of concrete batching plant is the front automatic batching equipment of concrete mixing equipment,
- can automatic complete the batching of sand, stone, cement and other material, according to the requirements
- of concrete proportion.This series of products are applicable to different working station.
- Component Part: store hopper, weighing systems, material feeding system, electronic control system,etc
- Structure form: in line or superimposed .
- Feeding way: pneumatic valve and belt conveyor.
- Strength: many kinds of combination forms, high precision weighing, simple operation, high automatic egree,etc
Concrete Mixer
1).The concrete mixer is the advanced, ideal type at home and abroad. Good mixing quality, high automation and efficiency, low energy consumption and noise as well as easy operation are the advantages of it.
2).Besides, it also has the strengths of high speed of discharging, long service life of liner and blades and easy maintenance.
3)Applies for the mix of plastic concrete, dry concrete, light weight aggregate concrete and different mortars.
4).Mtorized discharge port is applied in the machine, which makes it could be matched with dump car.
5).So it is the ideal machine for construction site and prefabrication.
Automatic Stacker
it is used to send the finished brick out automatic which is helpful to imporve the productivity effectively .
Optional items
5.Other information of QT6-15 cement block making machine
land area :100-200m2 for the machine installation ,3000-4000m2 for the whole production , the bigger, the better
Raw material:8-10% cement, 30-40% sand,50-60% stone power
6.Shipment to the clients
Our clients all over the world
