Vibrated Multifunctional QT6-15 Cement Concrete Sand Brick Making Machine for Sales
- xiamen
- T/T Credit Card
You May Like
-
HYM Full Automatic QT8-15 Hydraulic Concrete Hollow Brick and Block Making Machine
-
Full Automatic QT Concrete Brick Machine Production Line QT5-15 Paving Brick Forming Machine
-
Buy Cheap Hollow Bricks Making Machine From Huayuan Machinery--- QT6-15 Cement Concrete Brick Machines
-
2013 HYM Full Automatic Brick Building Machine QT4-15 Concrete Building Bricks Making Machine South Africa
-
Automatic Pallet Loading Machine for Block Making Plant
-
PVC Pallet, for Block Making Machine
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Concrete | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 20sets per month | Place of Origin | Fujian, China | |
| Brand Name | HYM | Model Number | QT6-15 concrete block making plant | |
| Voltage | 220V/380V | Power | 37.4KW | |
| Dimension(L*W*H) | 9450*3300*2700MM | Certification | ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.PLC controller with touch screen2.Bake-free and natural curing
3.high density of finish product
4.high capacity
Vibrated Multifunctional QT6-15 cement concrete sand brick making machine for sales
1,Main components
1. Recycle material feeding system: Economize in material for different or same density products.
2. PLC (computer automatic control): Hundreds program and process are ready to install, suitable for complex dynamic environment, and easy to handle.
3. Multi-source vibration system: For ensure the accuracy, the vibration frequency is adjustable.
4. Automatic diagnosis system: Unique system, Real-time monitoring to find out the fault, achieved remote- control by using telephone line..
2.Main technical parameters
Cycle Time | 15-20 Sec | Vibration Type | hydraulic vibration |
Total Power | 37.4kw | Vibration | 68(KN) |
Vibration Frequency | 3800-4500(times/sub) | Gross Weight | 7500(kg) |
Pallet Size | 880×680×20(mm) | Machine Size | 9450×3300×2700mm |
Rated Pressure | 31.5(mpa) | Stacking Machine Power | 2.25kw |
3.Common Brick Sizes and capacity
Brick | Sizes | Output/ mould | Output/Shift(8hours) |
Blocks | 390x190x190mm | 6 | 8,640-11520 |
Porous bricks | 240x115x90mm | 15 | 21,600-28,800 |
Interlocking block | 200x100x60mm | 21 | 25,200-30,240 |
Solid bricks | 240x115x53mm | 30 | 47,200-63,600 |
Brick Sample
QT6-15 concrete block making production line:

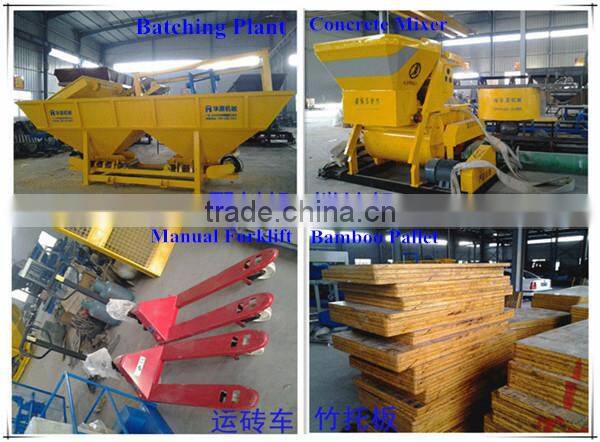

4. Other Accessory Machine QT6-15 cement block making machine
5.Other information of QT6-15 cement block making machine
land area :100-200m2 for the machine installation ,3000-4000m2 for the whole production , the bigger, the better
Raw material:8-10% cement, 30-40% sand,50-60% stone power
