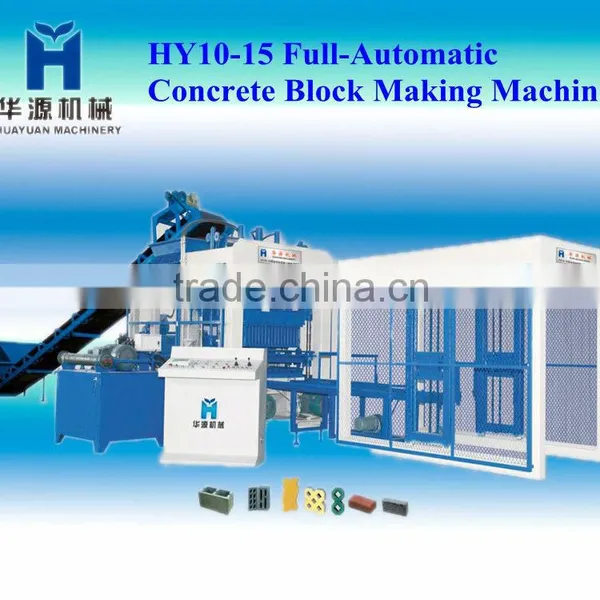

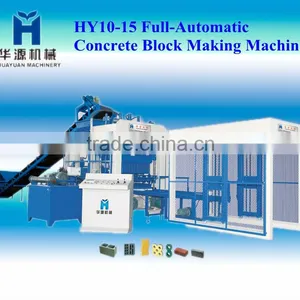

Help CenterHigh Capacity QTY10-15 Automatic Machine Concrete Block Making Machine Automatic Block Making Machine
Related Products
-
QT10-15 New Model Full-automatic Hydraulic Block Production Line Block Machine Price Manual Low PriceUS$ 85,000 - 92,000MOQ: 1 Unit -
Fully Automatic Interlocking Block Machine QT6-15 Concrete Block Making MachineUS$ 50,000 - 56,000MOQ: 1 Set
-
Low Cost Brick Machine QT6-15 Automatic Manual Hollow Block Making Machine,concrete Block Factory for Sale,US$ 40,000 - 70,000MOQ: 1 Set
-
Made In China HY-QT10-15 Full Antomatic Block Making Machine Block Forming MachineUS$ 85,000 - 92,000MOQ: 1 Unit
-
The Lowest Price Concrete Block Machine QT10-15 Cement Block Making MachineUS$ 85,000 - 92,000MOQ: 1 Unit
ncrete block making machine
ncrete cutting machine
3.cement block making machine
4.automatic block making machine
Concrete Brick making machine,brick making machine,concrete brick machine,concrete block making machine,hollow brick machine,hollow brick making machine
1,Main technical parameters:
| Cycle time: 15-20(s) | Vibration Type: hydraulic or moto |
| Total Power: 45.1kw | Vibration Force: 105(KN) |
| Vibration Frequency: 3800-4500(times/sub) | Gross Weight: 12800(kg) |
| Pallet size : 1100×880×25mm | Machine Size:11500×4050×2800(mm) |
| Rated Pressure: 31.5(mpa) | |
| Block Specification : | Production per shift (8 hours) |
| 390×190×190mm 10(pcs) | 14,400-19,200(pcs) |
| 240×115×53mm 51(pcs) | 73,440-97,920(pcs) |
| 240×115×90mm 24(pcs) | 34,560-46,080(pcs) |
| 200×100×60mm 31(pcs) | about 44,640(pcs) |
2,Main Technical Specifications:
A. Intelligence PLC touch screen and pure electrical element (high automatic and easy to operate ) ;
B. Arch breaking type of rapid feeding device (better feeding multi-hole bricks with better uniformity) ;
C. Forming production faster and with higher compactedness ;
D. High-heat treatment special technology (to make the mould more durable and more firm) .
Raw materials :crushed stone ,sand, cement, many types of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite , etc.
Multiple uses. It can produce all types of standard building blocks by changing mould.
A, Multi-holes block and hollow block ;
B, Ceramsite heat preservation block;
C, Composite heat preservation concrete block.
3.Clay Brick Sizes and capacity:
Brick |
Sizes |
Output/ mould |
Output/Shift(8hours) |
picture |
Blocks |
390x190x190mm |
10 |
14,400-19,200 |
|
Porous bricks |
240x115x90mm |
24 |
34,560-46,080 |
|
Interlocking block |
200x100x60mm |
31 |
About 44,640 |
|
Solid bricks |
240x115x53mm |
51 |
73,440-97,920 |
|
4. Production Flow Introduction
5.Products display:
6.Block and brick Sample:
