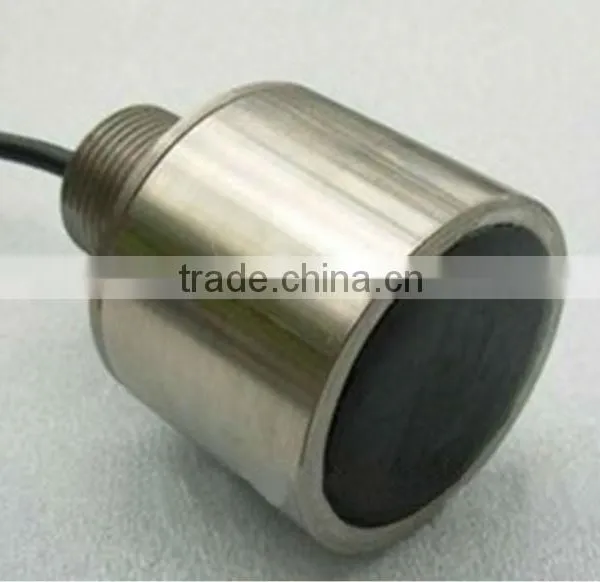

40/200KHz Ultrasonic Depth for Water MeasurementDual Frequency Waterproof Ultrasonic Transducerultrasonic Depth Measurement
US$ 139.85 - 145.64
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DYP
Model Number:
DYP-UL002
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Frequency 200KHz Active Ultrasonic Transducer for Fish Finder200KHz Ultrasonic Sensor for Distance Measurement in WaterUS$ 22.2 - 29.13MOQ: 100 Pieces -
Hot!!!200KHz Ultrasonic Fish Finder TransducerWaterproof Ultrasonic Sensor200KHz Ultrasonic Transducer for Water Depth MeasuringUS$ 22.21 - 29.13MOQ: 100 Pieces
-
200KHz Waterproof Ultrasonic Transducer for Water Depth MeasuringWaterproof Ultrasonic SensUltrasonic Transducer for Fish FinderUS$ 27.96 - 32.89MOQ: 10 Pieces
-
Ultrasonic Flow SensorUltrasonic TransducerUltrasonic Flow SensorWater Flow Me1.2MHz Ultrasonic Transducer for Liquid Flow MeterUS$ 18.93 - 40.46MOQ: 200 Pieces
-
1.0MHz Ultrasonic Flow SensorUltrasonic Flow SensorWater Flow Meter Sensors1.0MHz Ultrasonic Transducer for Liquid Flow SensorUS$ 16.45 - 27.63MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
DYP
Model Number
DYP-UL002
Usage
Other, Depth Measurement
Theory
Ultrasonic Sensor
Output
Digital Sensor
Specifications
It is a dual frequency depth measurement ultrasonic transducer and application in river, lake depth measurement,fish-finderIt is a dual frequency depth measurement ultrasonic transducer and application in river, lake depth measurement,fish-finder,etc.
Technical parameters:
Frequency (kHz) |
40KHZ±10% 200KHZ±10% |
Sensitive element material |
PZT-51 |
Transmitting response |
165dB |
Transmitting response |
-187dB |
Beamwidth |
-187dB |
Launch angle beam (-3dB) |
440KHZ: 45° 200KHZ: 9° |
|
Shunt impedance(in water) Resistance(Ω) |
500±30% |
Static capacitance(pf) |
2700±20% |
Rated power |
600W |
Operating temperature |
0—70°C |
Housing material |
Stainless steel |
Cable length |
10 m |
Could measure the depth of water more than 150 m(200KHz).
Wiring methods:
Red - positive pole of transducer;
Black - negative pole of transducer;
Blue & Green – temperature sensor;
Yellow,white and shielding wire - outer covering shield;
