Home > Products > Ultrasonic Fuel Capacity Sensor > High/low Liquid Level SwitchAltitude ValveThe Water Level of Pump ControllerNon-contactfull-automatic Water Level Controller
High/low Liquid Level SwitchAltitude ValveThe Water Level of Pump ControllerNon-contactfull-automatic Water Level Controller
US$ 4.21 - 4.98
/ Piece
100 Pieces(Min. Order)
- Shenzhen
- Money Gram Credit Card
You May Like
-
Hot Selling40KHz & 210KHz Dual Frequency Depth Measurement Ultrasonic TransducerHighAccurancy Ultrasonic Transducer in Liquid
-
Hot Sell1.2MHz Underwater Ultrasonic Transducer for Flow MeterHigh Temperature Press Transducer for Ultrasonic Flow Measurement
-
200KHz Ultrasonic Transducer for Water Depth MeasuringUltrasonic Transducer for Distance MeasurementWaterproof Ultrasonic Sensor
-
200KHz Ultrasonic Short Range Finder TransducerUltrasonic Sensors0.10m - 2m Ultrasonic Transducer for Distance Measurement
-
200KHz Smaller Ultrasonic Water Level Sensor Probe200KHz Smaller Ultrasonic Sensor for Distance MeasurementUltrasonic Transducer
-
200KHz Ultrasonic Transducer for Gas Flow MeterUltrasonic Air Flow Meter SensorPiezoelectric Gas Flow Ultrasonic Transducer

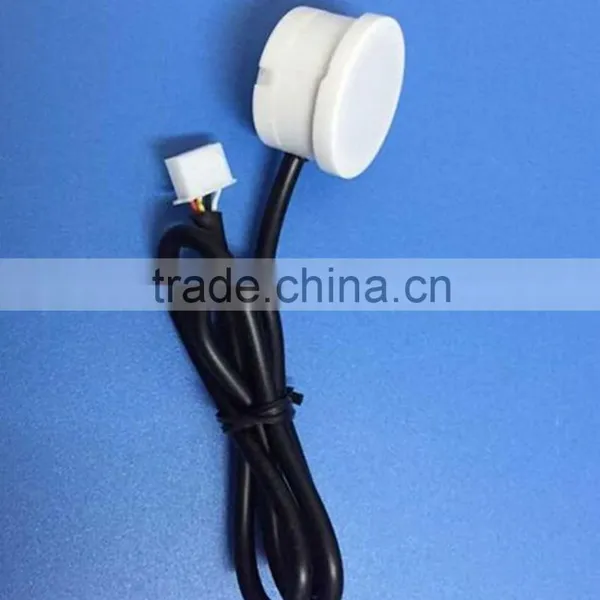

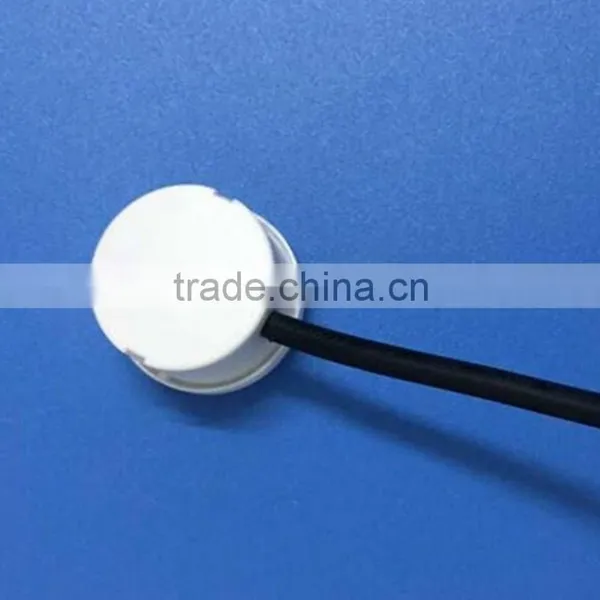

Product Details
| Place of Origin | Guangdong, China | Brand Name | DYP | |
| Model Number | DYP-Y25-V/NPN/PNP/RS485 | Usage | Level Sensor | |
| Theory | Capacitance Sensor | Output | Digital Sensor |
Product Description
There are four signal output interfaces, which are high-low level output interface, NPN and PNP output interface, RS485 interface, which corresponding item number are:
1) high-low level output interface --- item number: DYP-Y25-V;
2) NPN output interface --- item number: DYP-Y25-NPN;
3) PNP output interface --- item number: DYP-Y25-PNP;
4) RS485 interface --- item number: DYP-Y25-RS485;
Could choose any one of them only !!!!
Parameters:
Name | Parameters |
Input voltage(InVCC) | DC 5~24 V |
Power consumption | 5mA |
Output voltage (high level) | InVCC |
Output voltage (low level) | 0V |
Output current | 1~100mA |
Response time | 500mS |
Working temperature | 0~65℃ |
The thickness range of induction(sensitivity) | 0~7 mm |
Communication | RS485 |
Humidity | 5%~100% |
Material | ABS |
Waterproof performance | IP67 |
