Home > Products > Ultrasonic Fuel Capacity Sensor > LED digital display for ultrasonic fuel level detectorRS232 or RS485LED digit displayUltrasonic fuel and liquid level sensor
LED digital display for ultrasonic fuel level detectorRS232 or RS485LED digit displayUltrasonic fuel and liquid level sensor
USD $33.18 - $45
/ Piece
100 Pieces(Min.Order)
- 20000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
-
Digital ultrasonic/liquid level sensorNon contact ultrasonic fuel level sensor for fuel consumption monitorUltrasonic fuel level
-
RS232 or RS485 digit led displayUltrasonic fuel level sensorUltrasonic fuel level detector displayLed displDigital display meter
-
Fuel tank level sensorDiesel fuel tank level sensorHigh accuracy ultrasonic fuel level sensor with 1-5v,4-20mA,RS232 and RS485
-
High precision ultrasonic fuel level sensorAnti fuel theft fuel tank safety systemFuel level sensorUltrasonic fuel level sensor
-
Ultrasonic fuel level sensorLiquid level measuring sensorFuel tank level sensorUltrasonic fuel sensor for fuel consumption cont
-
DS1309A Ultrasonic sensor theory and level sensor usage diesel fuel level sensorSensorsNon-contact ultrasonic fuel level sensor
Product Details
| Place of Origin | Guangdong, China | Brand Name | DYP | |
| Model Number | DS1309 Led |
Product Description
Specifications

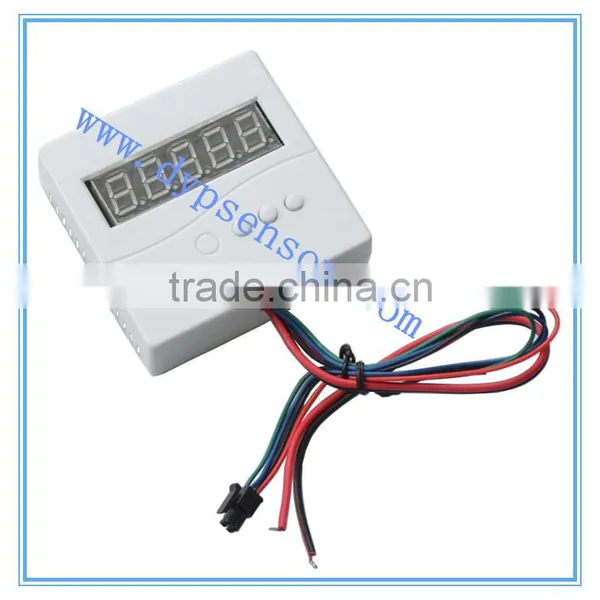

It is used for showing the height and temperature of liquid or fuel level, and is suitable for RS232 or RS485 only.This LED digital display is used for showing the height and temperature of ultrasonic fuel/liquid level detector, which is suitable for RS232 and RS485 output mode only. When you use it, you need to power supply as DC 6-36V and connect the RS232/RS485 cable to the data processor, the display board could show the data from the data processor.If data processor collected the liquid level is lower than 1000mm, the display board could show the last 4 digits only (The front of the digital could be automatically shown when the liquid level achieves 1000mm), the display accuracy is 0.1mm. You also could switch to show the temperature of ultrasonic transducer, which accuracy is 0.1℃.
Technical Parameters:
Operating voltage | DC 6 - 36V |
The power supply ripple | Less than 100mV |
Operating current | Less than 55mA |
Display accuracy of height | 0.1mm |
Display accuracy of temperature | 0.1℃ |
Digital interface | RS232 or RS485 |
Operating temperature | -40℃ - +80℃ |
Storage temperature | -50℃ - +100℃ |
Size (mm) | 85 X 85 X 25 |
Length of wire cable | 25cm |
Length of digital interface | 25cm |
Weight | About 92g |
