Home > Products > Ultrasonic Fuel Capacity Sensor > High precision ultrasonic fuel level sensorAnti fuel theft fuel tank safety systemFuel level sensorUltrasonic fuel level sensor
High precision ultrasonic fuel level sensorAnti fuel theft fuel tank safety systemFuel level sensorUltrasonic fuel level sensor
USD $75 - $100
/ Set
10000 Sets(Min.Order)
- 10000 Set / Sets per Month
- Shenzhen
- Credit Card
You May Like
-
Ultrasonic fuel level sensorLiquid level measuring sensorFuel tank level sensorUltrasonic fuel sensor for fuel consumption cont
-
DS1309A Ultrasonic sensor theory and level sensor usage diesel fuel level sensorSensorsNon-contact ultrasonic fuel level sensor
-
Ultrasonic fuel level sensor for real time monitoring of truck's fuel levelFuel tank level sensorUltrasonic diesel level sensor
-
Ultrasonic level sensor for fuel tank level measurementDiesel fuel tank level sensorFuel leveUltrasonic fuel tank level detector
-
Level sensor usage and ultrasonic sensor theory fuel level sensor for GPS trackingFuel levelUltrasonic fuel tank level detector
-
Analog voltage 1-5V 4-20mA RS232 or RS485 optional output and ultrasonic sensor theory ultrasonic fuel tank level detector
Product Details
| Place of Origin | Guangdong, China | Brand Name | DYP | |
| Model Number | DS1309A |
Product Description

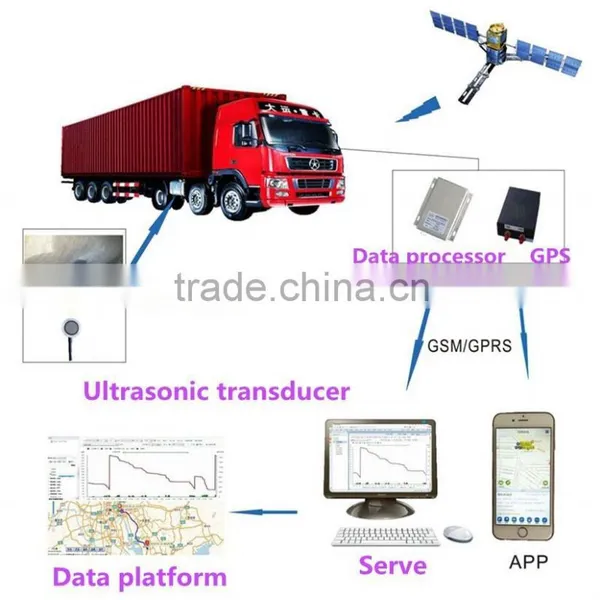

It could be combined with GPS/GPRS device, the user could real-time to check the data (current fuel capacity, refuel, fuel/water consumption,anti-theft fuel, vehicle traveling track...) and was widely used in logistics companys, car-rental companys, engineer fleet... and some industrial field.
Technical parameters:
Operating Voltage | DC9V-36V | |
Power supply ripple | Less than 100mV | |
Operating current | Less than 55mA | |
Measuring distance | 4cm to 100cm; pressure-bearing range: -0.1MPa~32MPa | |
Resolution | 0.1mm | |
Measurement accuracy | 0.5% (see note 3) | |
Temperature compensation range | -40 ℃- +80 ℃ | |
Output modes | 1-5V(default),4-20mA, RS232(default),RS485 | |
| RS485(optional) |
|
Anti-theft alarm output | need external connection a alarming horn to achieve alarm | |
Install method | bottom of fuel tank/can, water tank | |
Material of tank/container | Iron plate,aluminum,stainless steel | |
Thickness of material | Within 5.5mm | |
Operating temperature | -40 ℃ - +80 ℃ | |
Storage temperature | -50 ℃ - +100 ℃ | |
Size | 102*84*25mm (with mounting holes) | |
