Home > Electrical & Electronics > Sensor > Pressure Sensor > DYP-ME007V1 Ultrasonic Ranging ModuleDigital Output Ultrasonic SensoUltrasonic Sensor Manufacturer ChinaUltrasonic Sensor Module

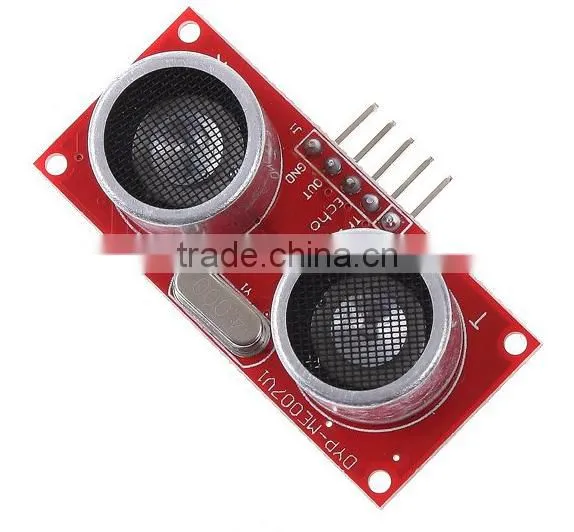

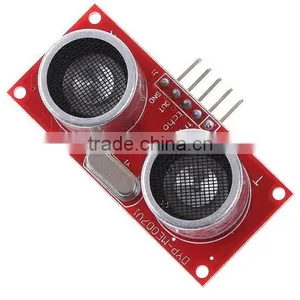

DYP-ME007V1 Ultrasonic Ranging ModuleDigital Output Ultrasonic SensoUltrasonic Sensor Manufacturer ChinaUltrasonic Sensor Module
US$ 2.46 - 3.26
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DYP
Model Number:
DYP-ME007V1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Non-contact Ultrasonic Distance Sensor ModuleUltrasonic Sensor for Distance MeasurementSensoUltrasonic Distance Measuring SensorUS$ 2.46 - 2.99MOQ: 1000 Pieces -
Cheap Ultrasonic Distance Measuring ModuleUltrasonic Ranging ModuleDistance SensorUltrasonic Distance Measuring Sensor ModuleUS$ 2.33 - 2.46MOQ: 3000 Pieces
-
Serial Port Ultrasonic Ranging ModuleUltrasonic Distance Measuring Sensor ModuleBlue Ultrasonic Sensor Distance Measuring ModuleUS$ 7.26 - 11.15MOQ: 10 Pieces
-
Blue Non-contact Ultrasonic Distance Sensor ModuleUltrasonic SensoDYP-ME007TX Ultrasonic Ranging Detector Module Distance SensorUS$ 6.68 - 8.29MOQ: 100 Pieces
-
3PINS Ultrasonic Distance Measurement ModuleDC5VUltrasonic Sensor Distance ModuleSensors2cm-4m Ultrasonic Ranging Sensor ModuleUS$ 6.68 - 6.68MOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
DYP
Model Number
DYP-ME007V1
Usage
Position Sensor
Theory
Ultrasonic Sensor
Output
Digital Sensor
Description:
1 This module includes ultrasonic transmitters, receiver and control circuit;
2 Its stable performance and high ranging accuracy make it a popular module in electronic market;
3 There are 5 pins out of the module, VCC, Trig, Echo, GND and OUT;
4 Best performance in 30 degrees angle;
5 Electronic brick compatible interface;
6 Dual transducer;
Specifications:
1Voltage: DC 5V;
2Current: 15mA;
3Ultrasonic Frequency: 40K Hz;
4Maximal Range: 500cm;
5Minimal Range: 2cm;
6Resolution: 1cm;
7Response time: 100MS;
8Output signal: 5V TTL level;
9Trigger Pulse Width: 10μs;
10Operating temperature: -10--+60degree;
11Storage temperature: -20--+80degree;
12Dimension (L x W x H): Approx. 44 x 20 x 18 mm;
