HD-SDI Signal Repeater

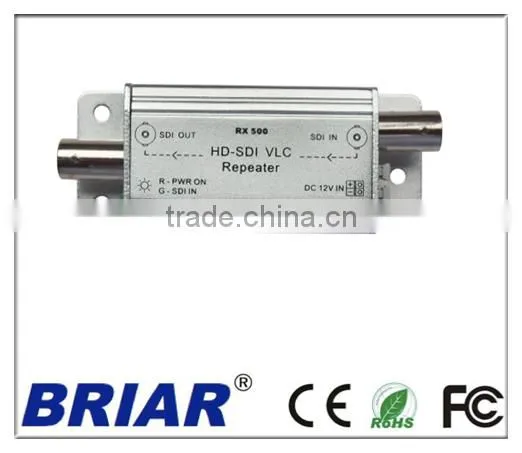

TX500 is to apply for signal transmitting terminal. Rx500 is to apply for receiving terminal. TX500+RX500
repeaters is a equipment of HD-SDI signal data transmission, which can support transmitting HD-SDI signal data for 500 meters.
1-1 Characteristics
·Support resolution of 1280 x720 (24/25/30/50/60fps) and 1920 x1080 (24/25/30fps)
·Support transmission ratio of 2.97Gbps, 1.485Gbps, 270Mbps
.Embedded surge protection cables
· Light Aluminum Housing, Easy to carry and install
1-2 HD-SDI Signal Standard
HD-SDI |
HD-SDI |
3G-SDI |
525i |
1280x720P,24/25/30/50/60HZ |
1920x1080P,50/60HZ |
625i |
1920x1080i,50/60HZ |
|
|
1920x1080P,24/25/30HZ |
|
2. Product Content
Description |
TX500+RX500 |
Power Joint |
User Manual |
Repeater |
|
|
|
3.Product Components with connect Diagram
TX500 SDI Input: Input 1.5Gbps HD-SDI signal;
RX500 SDI Input:Input 270Mbps SD-SDI signal
TX500 SDI Output:Output 270Mbps SD-SDI signal via encoder
RX500 SDI Output: outputting SDI signal data of 1.5Gbps via decoder

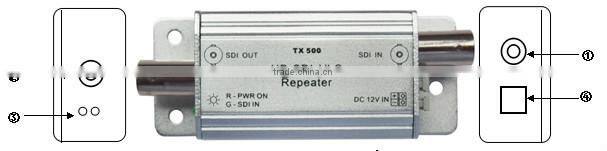

Power & HD-SDI input with LED instruction(Green, Red)
LED Color |
LED Status |
Conditions |
Green |
ON |
No HD-SDI signal input |
Red |
ON |
Power is connected |
DC female connector: connect with power adaptor of 12V-/-10%
4.Specifications
Model No. |
SD-HD500 |
|
Input / Output Signal Type |
HD-SDI |
|
Power Consumption |
DC12V/1W |
|
Power Input |
DC12V/0.07A |
|
Max Distance of Each Pair |
RG-6(Belden 1694A)-400m(Full SD:270M) |
|
Connect Info |
SDI Signal Joint |
BNC-F(75Ω) |
Power input joint |
DC Female (5.5*2.1) |
|
LED Instruction |
Green |
OFF:HD-SDI input |
Red |
ON:Power input |
|
Operation Temperature / Humidity |
-10℃-+50℃/0-80% |
|
Housing Material / Gross Weight |
AIuminum/61g |
|
Dimension(mm) |
87.5(L)x33(W)x22(H)mm |
|

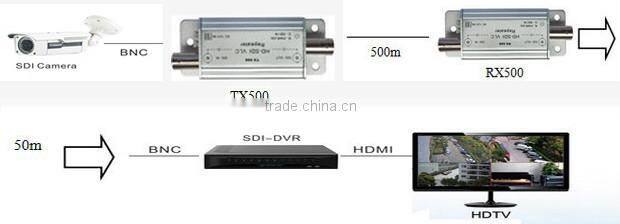

5.Connecting Diagram
Packing Details: Carton or As your required
Delivery Details: A.S.A.P after payment
