3G SDI transmitter and receiver

FOB Price

USD $15 - $35 / Pair

1 Pair(Min.Order)

Supply Ability 3000 Pair / Pairs per Month
Port Tianjin
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China		Brand Name	BRIAR
Model Number	SD-HD500

Product Description

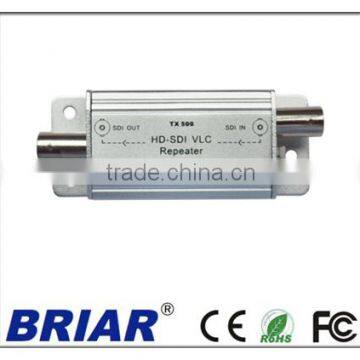

3G-SDI HD-SDI transmitter and receiver

TX500 is to apply for signal transmitting terminal. Rx500 is to apply for receiving terminal. TX500&RX500 repeaters is a equipment of HD-SDI signal data transmission, which can support transmitting HD-SDI signal data for 500 meters.

1-1 Characteristics

1.Support resolution of 1280*720(24/25/30/50/60fps) and 1920*1080 (24/25/30fps)

2.Support transmission ratio of 2.97Gbps, 1.485Gbps, 270Mbps

3.Embedded surge protection cables

4.Light Aluminum Housing, Easy to carry and install

1-2 HD-SDI Signal Standard

HD-SDI (SMPTE 259M)	HD-SDI (SMPTE 292M)	3G-SDI (SMPTE 424M)
525i	1280x720P,24/25/30/50/60HZ	1920x1080P,50/60HZ
625i	1920x1080i,50/60HZ
	1920x1080P,24/25/30HZ

2. Product Content

1.Description: HD-SDI Repeater with Data + Power Over one Coax

2.Device: 1 TX500 transmitter & 1 RX500 receiver

3. Accessory: 1 DC12V Power Joint

4.Document: 1 User Manual

3.Product Component

1.TX500 SDI Input: Input 1.5Gbps HD-SDI signal

2.RX500 SDI Input:Input 270Mbps HD-SDI signal

3.TX500 SDI Output:Output 270Mbps HD-SDI signal via encoder

4.RX500 SDI Output: outputting SDI signal data of 1.5Gbps via decoder

5.Power & HD-SDI input with LED instruction (Green, Red)

6.DC female connector: connect with power adaptor of 12V-/-10%

LED Color	LED Status	Conditions
Green	ON	No HD-SDI signal input
Red	ON	Power is connected

4.Specifications

Model No.		SD-HD500
Input / Output Signal Type		HD-SDI
Power Consumption		DC12V/1W
Power Input		DC12V/0.07A
Max Distance of Each Pair		RG-6(Belden 1694A)-400m(Full SD:270M)
Connect Info	SDI Signal Joint	BNC-F(75Ω)
	Power input joint	DC Female (5.5*2.1)
LED Instruction	Green	OFF:HD-SDI input
	Red	ON:Power input
Operation Temperature / Humidity		-10℃-+50℃/0-80%
Housing Material / Gross Weight		AIuminum/61g
Dimension(mm)		87.5(L)x33(W)x22(H)mm

5.Connecting Diagram
