Home > Electrical & Electronics > Sensor > Pressure Sensor > 2cm-5m Range Ultrasonic Module Range Detection SensorCheap Ultrasonic Range Sensor Module for RobortUltrasonic Distance Sensor

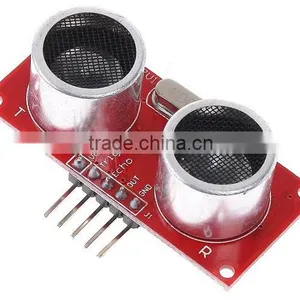

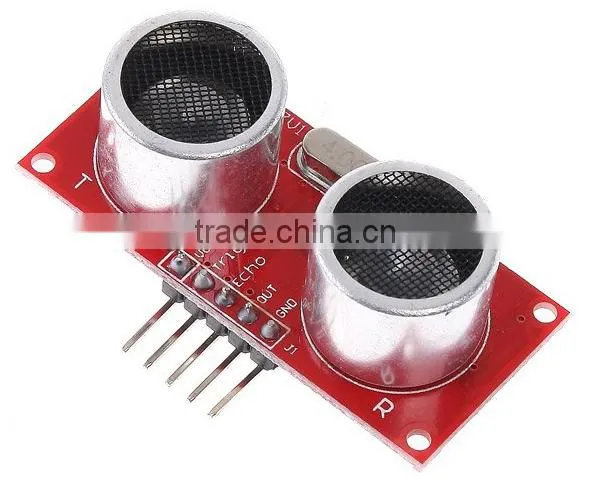

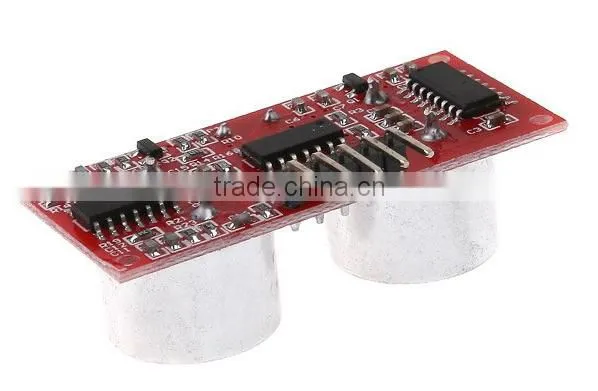

2cm-5m Range Ultrasonic Module Range Detection SensorCheap Ultrasonic Range Sensor Module for RobortUltrasonic Distance Sensor
US$ 2.21 - 2.88
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DYP
Model Number:
DYP-ME007V1
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DYP-ME007Y Ultrasonic Distance Sensor ModuleWaterproof Non-contact Ultrasonic Distance Measuring Sensor Module With High AccuracUS$ 7.95 - 8.75MOQ: 3000 Pieces -
GH-311 Ultrasonic Sensor Distance Measuring ModuleDistance SensorUltrasonic Sensor Distance MeterSwitch Output Ultrasonic ModuleUS$ 5.43 - 7.26MOQ: 1000 Pieces
-
Ultrasonic Sensor Distance Measuring Module GH-311Switch Output Ultrasonic Module/TransducerGH-311 Ultrasonic Distance SensorUS$ 6.52 - 7.26MOQ: 100 Pieces
-
Digital Output Ultrasonic Sensor ModuleHigh Accuracy UltrasonicDYP-ME007Y Waterproof Ultrasonic Sensor Distance Measuring ModuleUS$ 7.63 - 7.95MOQ: 5000 Pieces
-
Long Range (8m) Ultrasonic Sensor for Distance MeasurementUltrasonic Sensor DetectorRanging ModuleMeasuring Transducer SensorUS$ 37.22 - 58.87MOQ: 200 Pieces
Place of Origin
Guangdong, China
Brand Name
DYP
Model Number
DYP-ME007V1
Usage
Other, Distance Measurement
Theory
Ultrasonic Sensor
Output
Digital Sensor
Description:
1 This module includes ultrasonic transmitters, receiver and control circuit;
2 Its stable performance and high ranging accuracy make it a popular module in electronic market;
3 There are 5 pins out of the module, VCC, Trig, Echo, GND and OUT;
4 Best performance in 30 degrees angle;
5 Electronic brick compatible interface;
6 Dual transducer;
Specifications:
1Voltage: DC 5V;
2Current: 15mA;
3Ultrasonic Frequency: 40K Hz;
4Maximal Range: 500cm;
5Minimal Range: 2cm;
6Resolution: 1cm;
7Response time: 100MS;
8Output signal: 5V TTL level;
9Trigger Pulse Width: 10μs;
10Operating temperature: -10--+60degree;
11Storage temperature: -20--+80degree;
12Dimension (L x W x H): Approx. 44 x 20 x 18 mm;
