Description:

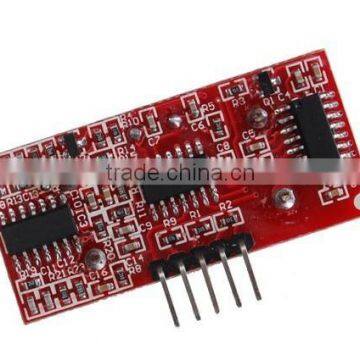

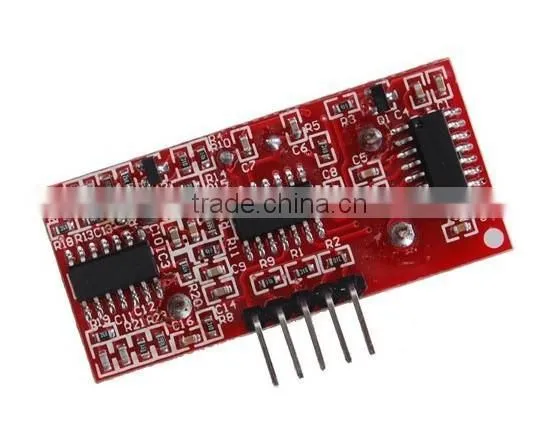

1 This module includes ultrasonic transmitters, receiver and control circuit;

2 Its stable performance and high ranging accuracy make it a popular module in electronic market;

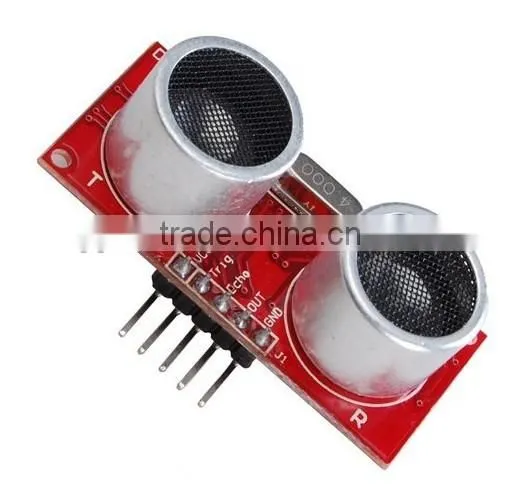

3 There are 5 pins out of the module, VCC, Trig, Echo, GND and OUT;

4 Best performance in 30 degrees angle;

5 Electronic brick compatible interface;

6 Dual transducer;

Specifications:

1Voltage: DC 5V;

2Current: 15mA;

3Ultrasonic Frequency: 40K Hz;

4Maximal Range: 500cm;

5Minimal Range: 2cm;

6Resolution: 1cm;

7Response time: 100MS;

8Output signal: 5V TTL level;

9Trigger Pulse Width: 10μs;

10Operating temperature: -10--+60degree;

11Storage temperature: -20--+80degree;

12Dimension (L x W x H): Approx. 44 x 20 x 18 mm;
