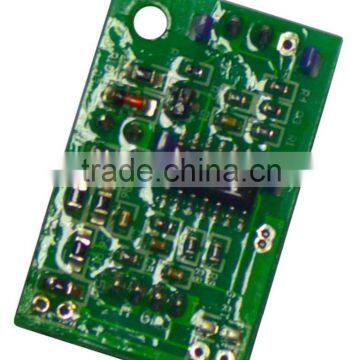

DigitalTemperature & Humidity SensorAir Conditioner Room Temperature SensorHumidity Sensor ModuleTemperature and Humidity Sensor

Accuracy:

1,Temperature: NTC precision of 1%;
2,Humidity: ± 5% RH (25 degC, 60% RH, input voltage = 5V);
3,Humidity Output Signal: (25 degC, 60% RH, input voltage = 5V);
4,Size (L x W): Approx. 1.4 x 0.85 inch / 3.5 x 2.2 cm;

Applications:

1,Electronic, textile, warehouse, tobacco, pharmaceutical and other industries;
2,Temperature and humidity instruments;
3,Humidification and dehumidification equipment;
4,Air conditioning and other high-end products;

Electrical Parameters:

1,A humidity sensing component, polymer humidity resistance "HR" ;
2,Power Supply: 5VDC ± 5%;
3,Current Consumption: 5mA max. (2mA avg.);
4,Storage Condition Temperature: Between -20 degC and -70 degC;
5,Humidity: Below 95% RH;

Measuring Range:

1,Temperature: Between 0 degC and 60 degC NTC divider output, 25 degC = 10K ± 1%, B value = 3435K ± 1%;
2,Humidity: 20% - 95% RH;
