Product Details
| Place of Origin | Guangdong, China | Brand Name | DYP | |
| Model Number | HDM-230B | Usage | Humidity Sensor | |
| Theory | Resistance Sensor | Output | Digital Sensor |
Product Description
Accuracy:
1,Temperature: NTC precision of 1%;
2,Humidity: ± 5% RH (25 degC, 60% RH, input voltage = 5V);
3,Humidity Output Signal: (25 degC, 60% RH, input voltage = 5V);
4,Size (L x W): Approx. 1.4 x 0.85 inch / 3.5 x 2.2 cm;
Applications:
1,Electronic, textile, warehouse, tobacco, pharmaceutical and other industries;
2,Temperature and humidity instruments;
3,Humidification and dehumidification equipment;
4,Air conditioning and other high-end products;
Electrical Parameters:
1,A humidity sensing component, polymer humidity resistance "HR" ;
2,Power Supply: 5VDC ± 5%;
3,Current Consumption: 5mA max. (2mA avg.);
4,Storage Condition Temperature: Between -20 degC and -70 degC;
5,Humidity: Below 95% RH;
Measuring Range:
1,Temperature: Between 0 degC and 60 degC NTC divider output, 25 degC = 10K ± 1%, B value = 3435K ± 1%;
2,Humidity: 20% - 95% RH;

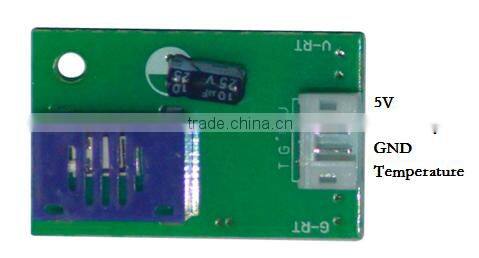

Interface:
There are 4 Pins to connect:
