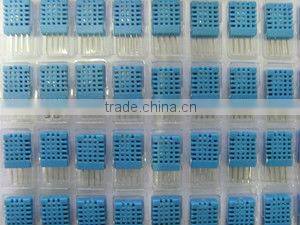

Ultra Long Distance SignalUltra-low Power Temperature and Humidity Sensor Module Digital Temperature and Humidity Sensor Module

Specifications

Description :

  DYP-DHT22 output calibrated digital signal. It applys exclusive digital-signal-collecting-technique and humidity sensing technology, assuring its reliability and stability.Its sensing elements is connected with 8-bit single-chip computer. Every sensor of this model is temperature compensated and calibrated in accurate calibration chamber and the calibration-coefficient is saved in type of programme in OTP memory, when the sensor is detecting, it will cite coefficient from memory. Small size & low consumption & long transmission distance(100m)enable DHT22 to be suited in all kinds of harsh application occasions.Single-row packaged with four pins, making the connection very convenient.

Technical Specification:

1)  Power supply : 3.3-5.5V DC ;

2) Output signal: digital signal via MaxDetect 1
3) Sensing element: Polymer humidity resistor;

4) Operating range: humidity: 20-90%RH; temperature: 0~50Celsius;

5)   Accuracy: humidity: +-5% ; temperature: +-2Celsius;

6) Resolution or sensitivity: humidity : 1%RH; temperature: 1 Celsius;

7) Repeatability : humidity : +-2%RH ;  temperature: +-1Celsius;

8) Humidity hysteresis: +-1%RH ;

9) Long-term Stability : +-1%RH/year;

10) Interchangeability : fully interchangeable ;

Electrical Characteristics:
