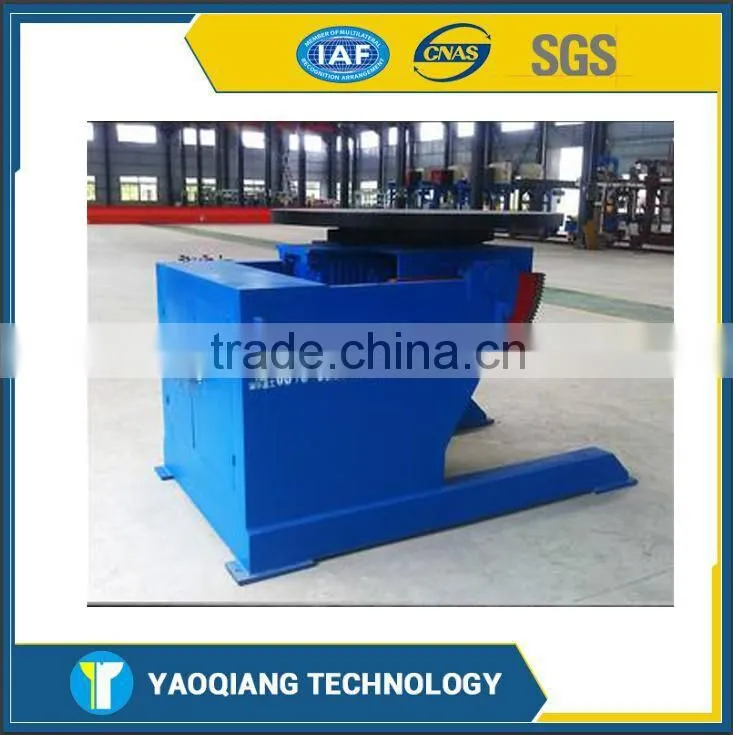

Help CenterYQ Automatic Rotating Welding Positioner With Rotating Table for Sale
Related Products
-
YQ Automatic Welding Positioner With Electric Turntable With CE CertificateUS$ 1,000 - 10,000MOQ: 1 Piece -
YQ Automatic Welding Positioner With Electric Turntable From ChineseUS$ 1,000 - 10,000MOQ: 1 Piece
-
YQ HB Asistant Welding Machine Height Adjustable Welding PositionerUS$ 1,000 - 10,000MOQ: 1 Piece
-
VFD Control Welding Positioner Rotary Welding Table Welding Turning TableUS$ 1,000 - 10,000MOQ: 1 Piece
-
YQ High Speed Electric Turntable Type Automatic Welding PositionerUS$ 1,000 - 10,000MOQ: 1 Piece

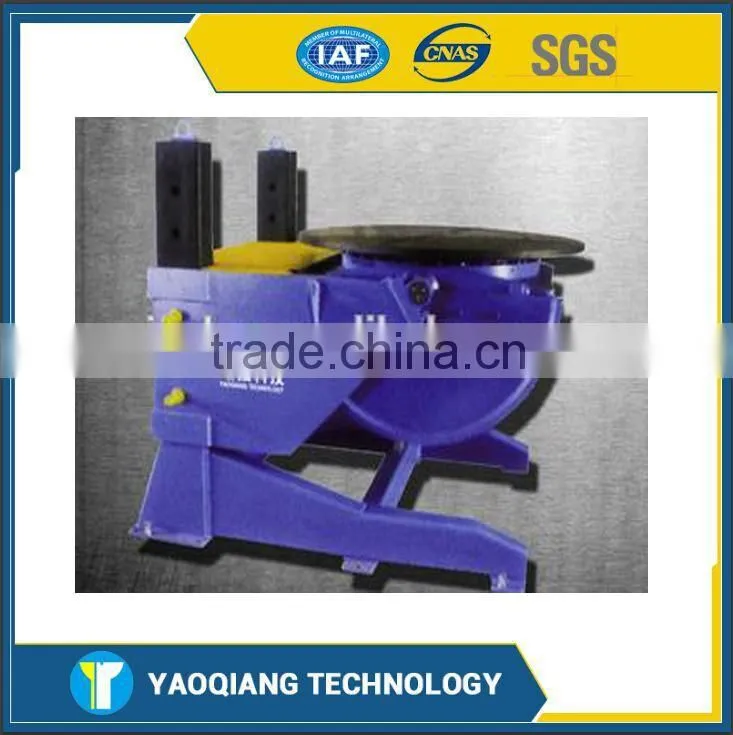

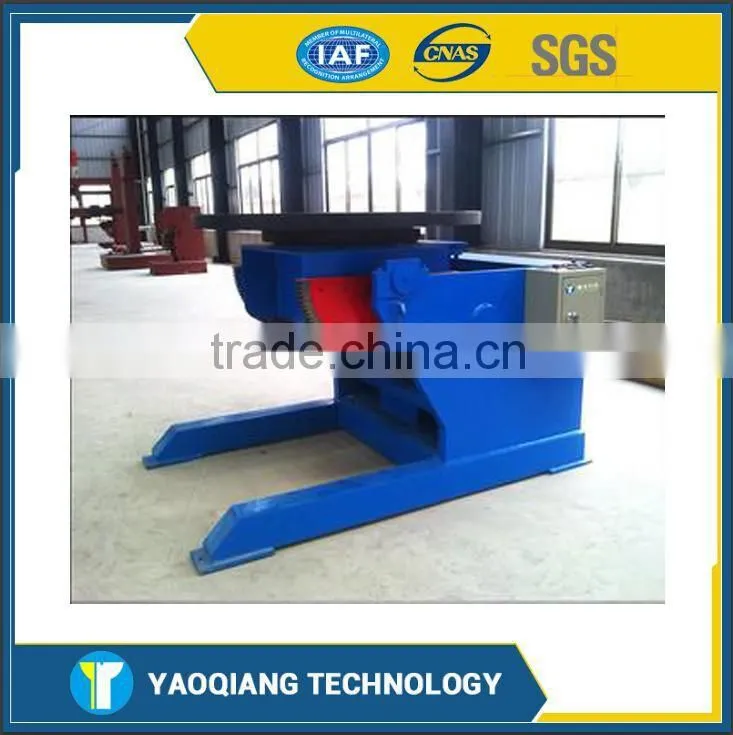

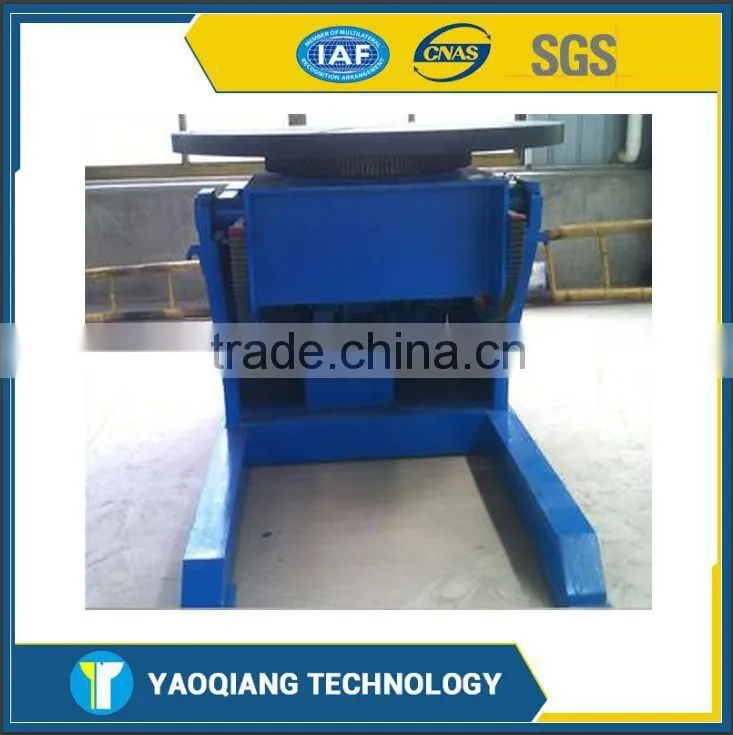

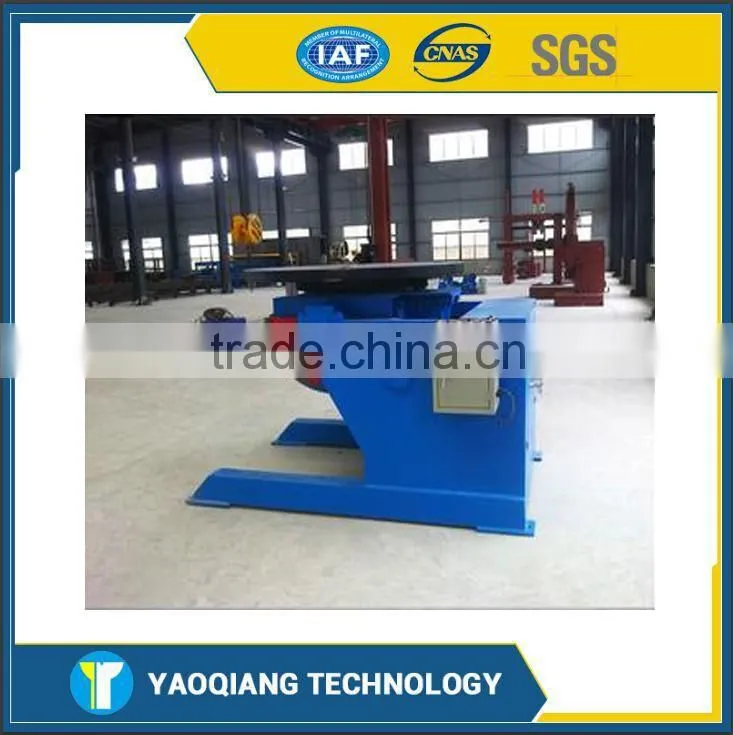

YQ Automatic Welding Positioner
Model |
HB-01 |
HB-03 |
HB-06 |
HB-10 |
HB-20 |
HB-30 |
HB-50 |
HB-80 |
HB-100 |
HB-200 |
Max. load kg |
100 |
300 |
600 |
1000 |
2000 |
3000 |
5000 |
8000 |
10000 |
20000 |
rotate speed rpm/min |
0.3-3 |
0.2-2 |
0.09-0.9 |
0.09-0.9 |
0.05-0.5 |
0.05-0.5 |
0.05-0.5 |
0.02-0.2 |
0.02-0.2 |
0.02-0.2 |
turning speed rpm/min |
by manual |
by manual |
0.42 |
0.4 |
0.35 |
0.23 |
0.2 |
0.2 |
0.2 |
0.15 |
turret turning angle ° |
0-90 |
0-90 |
0-90 |
0-90 |
0-120 |
0-135 |
0-135 |
0-135 |
0-135 |
-45-90 |
turret diameter mm |
φ400 |
φ600 |
φ1000 |
φ1200 |
φ1250 |
φ1400 |
φ1500 |
φ1600 |
φ2000 |
φ2500 |
rotate motor power kw |
0.18 |
0.18 |
0.75 |
1.1 |
1.1 |
1.1 |
1.5 |
3 |
3 |
5.5 |
speed adjustment |
AC frequency converter stepless speed adjustment |
|||||||||
max eccentricity mm |
100 |
150 |
150 |
150 |
200 |
200 |
200 |
200 |
200 |
200 |
|
max distance of gravity centre mm |
200 |
200 |
200 |
200 |
250 |
300 |
300 |
400 |
500 |
600 |

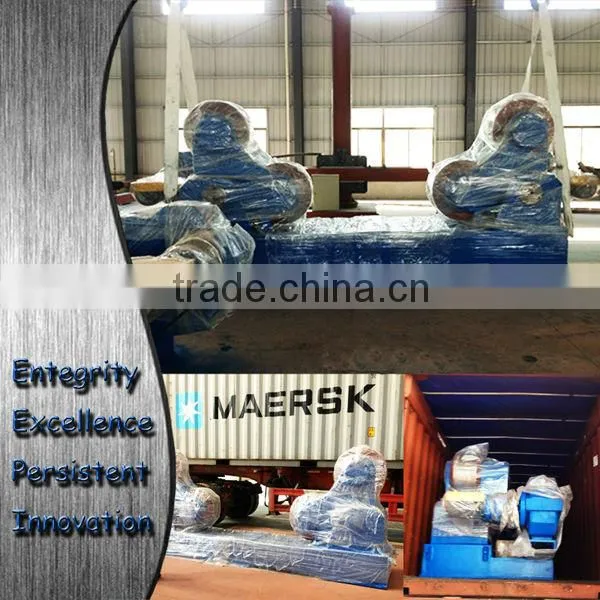

Packaging & Delivery:
Packaging Details:Standard export package
Delivery Details:Within 30days after received your deposit
