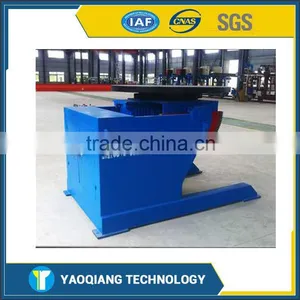

VFD Control Welding Positioner Rotary Welding Table Welding Turning Table
- 100 Piece / Pieces per Month
- Shanghai
- T/T Credit Card PayPal
- U type double axis positioner
- L type double axis positioner
- P type double axis positioner
- Welding Positioner
- 10 TON 3 axis welding positioner rolling turning flipping automatically welding machine 5/10/20 ton heavy industry machinery
- 5TON 3axis welding positioner rolling turning flipping automatically welding machine 5/10/20 ton heavy industry machinery
Product Details
Condition: | New | Brand Name: | YQ(YaoQiang) | Model Number: | HB |
Usage: | Control pipe position for welding | Dimensions: | Customized | Weight: | Customized |
Certification: | ISO & SGS & CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

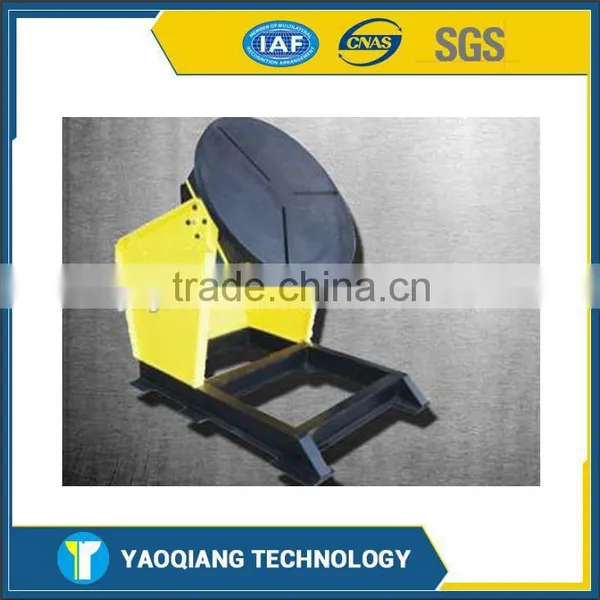

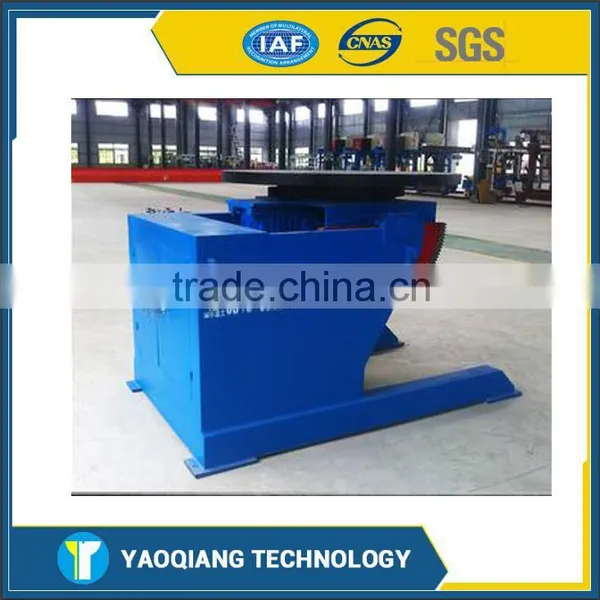

YQ Automatic Welding Positioner
Model | HB-01 | HB-03 | HB-06 | HB-10 | HB-20 | HB-30 | HB-50 | HB-80 | HB-100 | HB-200 |
Max. load kg | 100 | 300 | 600 | 1000 | 2000 | 3000 | 5000 | 8000 | 10000 | 20000 |
rotate speed rpm/min | 0.3-3 | 0.2-2 | 0.09-0.9 | 0.09-0.9 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.02-0.2 | 0.02-0.2 | 0.02-0.2 |
turning speed rpm/min | by manual | by manual | 0.42 | 0.4 | 0.35 | 0.23 | 0.2 | 0.2 | 0.2 | 0.15 |
turret turning angle ° | 0-90 | 0-90 | 0-90 | 0-90 | 0-120 | 0-135 | 0-135 | 0-135 | 0-135 | -45-90 |
turret diameter mm | φ400 | φ600 | φ1000 | φ1200 | φ1250 | φ1400 | φ1500 | φ1600 | φ2000 | φ2500 |
rotate motor power kw | 0.18 | 0.18 | 0.75 | 1.1 | 1.1 | 1.1 | 1.5 | 3 | 3 | 5.5 |
speed adjustment | AC frequency converter stepless speed adjustment | |||||||||
max eccentricity mm | 100 | 150 | 150 | 150 | 200 | 200 | 200 | 200 | 200 | 200 |
max distance of gravity centre mm | 200 | 200 | 200 | 200 | 250 | 300 | 300 | 400 | 500 | 600 |
Packaging & Delivery:
Packaging Details:Standard export package
Delivery Details:Within 30days after received your deposit
