Specifications
This sensor switch,which operating frequency is up to 5.8GHz and uses the principle of doppler,microprocessor technology and etcDescription:
This microwave PIR motion intelligent switch, which operating frequency is up to 5.8GHz and uses the Doppler principle, microwave and microprocessor technology. It could detect the mobile objects accurately, when the object to be tested enters the detection range, the switch could judge automatically whether the object fits the set range and begin to work, so that it achieves the intelligent control for the target load.
Features:
1) Strong anti-interference and reliability, security and convenience.
2) Features of intelligent detection and delay time.
3) With photosensitive control: According to the external light intensity to control the switch and achieve energy savings.
4) Wide application range: Could be used in incandescent lamp(bulb), energy saving lamp, LED light, electronic fluorescent lamp, exhaust fan and other kinds of load.
Specifications:
1) Working voltage: 220V AC
2) Power supply frequency: 50Hz
3) Load power: 500W (Max.,using the incandescent lamp); 200W (Max., using the fluorescent lamp );
4) Working temperature: -20 ~ +60 Celsius degree;
5) Limited temperature: -35 ~ +75 Celsius degree;
6) Microwave frequency: ISM 5.8GHz;
7) Microwave output power: less than 10mW;
8) Sensing distance: 1m ~ 12m (Adjustable);
9) Sensing time delay: 8sec ~ 30min (Adjustable);
10) Angle sensor: 360 degree;
11) Installation: Indoor or on walls,etc (ceiling mounted);
12) Installation height: 2m ~ 3.5m (2.5m Suggested ) ;

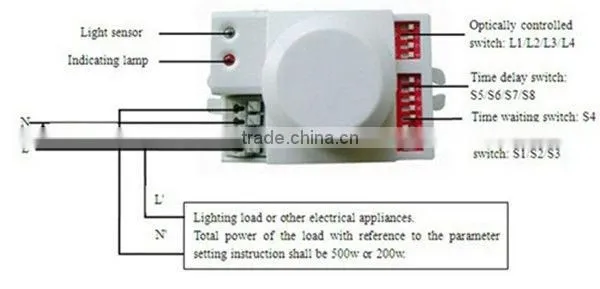

Wiring Diagram:
