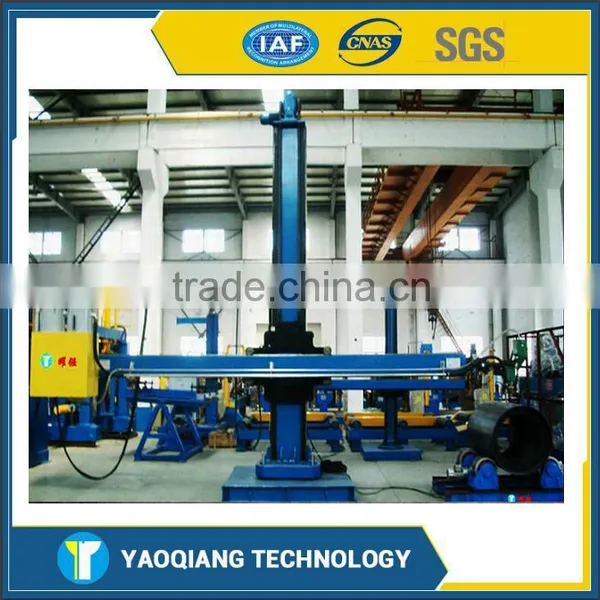

YQ Automatic Welding Manipulator
Welding manipulator is working together with roller frame, positioned and etc. To weld the work piece inside and outside circular seam, corner seam, outside and inside longitudinal seam.According to
customer specific need, various structures, welders, and assistant devices like tracking,sway,monitor, flux recovery and transmission are optional for users. Besides, we can also design and manufacture
the exact type suited for users too.
Structure: Fixed type, fixed and rotary (manual) type, mobile and rotary type.
Function: The cross arm effectively stretch and lift. The welding head can adjust up and down, left and right. Standing column turns, vehicle moves.
The cross arm operation accuracy: ≤ 1mm/1000m.
Welder optional: Automatic SAW, CO2 MAG/MIG, TIG welder.
Optional function: Flux recovery and transmission machine, video monitor, welding seam sway,
automatic tracking, arc length control, platform for worker.
Model |
HJ2020 |
HJ3030 |
HJ3040 |
HJ4050 |
HJ5060 |
HJ6060 |
HJ7070 |
HJ8080 |
effective arm extension stroke m |
2-3 |
3-5 |
4-6 |
4-7 |
4-8 |
4-9 |
7-9 |
4-10 |
effective arm vertical stroke m |
2 |
3 |
3 |
4 |
5 |
6 |
7 |
8 |
arm extension speed mm/min |
120-1200 AC frequency converter stepless speed adjustment |
|||||||
arm elevation speed mm/min |
500 |
1000 |
||||||
column rotary angle ° |
±180 by manual |
|||||||
arm end load kg |
100 |
200 |
||||||
vehicle travel speed mm/min |
2000 |
|||||||
vehicle slide center distance mm |
1200 |
1560 |
||||||
cross shape adjusting unit mm |
up and down 100, left and right:100 |
|||||||
Our Service--We Cherish Every Order From Every Customer
Punctual delivery time:
•We put your order into our tight production schedule, ensure your punctual delivery time.
•Production / inspection report before your order packed.
•Shipping notice/ insurance to you as soon as your order is shipped.
Pre-sales service:
•We value every inquiry sent to us, ensure quick competitive offer within 12 hours.
•We cooperate with customer to design and develop the new products. Provide all necessary document.
•We are a sales team, with all technical support from engineer team.
After sales service:
•We respect your feed back after receive the goods.
•We provide 12-24 months warranty after goods arrive.
•We promise all spare parts available in lifetime use.
•We lorge your complain within 48 hours.
Trade Assurance:
Packaging Details:Standard export package
Delivery Details:Within 30days after received your deposit
Company Show:
Company Honor:
Transaction Process:
Sales Network:
FAQ:
1. Are you factory or foreign trade company?
We have our own factory, We are industry and trade integration.
2. Where is your factory located? How can I visit there?
Our factory is located in Dongtai City, Jiangsu Province, one hour train from Shanghai.All our clients, from home or abroad, are warmly welcome to visit us!
3. What's the quality of your products?
We are very focused on the quality of the products, good quality products can bring us more customers, so, All spare parts of this machine come with best brand and best quality, after completing the installation we will test the machine for 48 hours, also we can provide the machine's working video before shipping.
4. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day.
5. What to do if the machine has a problem?
24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
6. What other things also need after we bought your machines?
(1) With flame cutting: you just need to access to oxygen and fuel gas. (2) With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
7. How can I know more about the machine?
We are honored to send you some pictures and vedio about our machine. And we welcome every customer visit our factory.
8. How does your factory do regarding quality control?
Quality is priority. Factory director always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ZDHY, ISO9001 authentication.
9. What are your payment terms?
We support T/T, L/C, Western Union and so on. Other ways can also be received after we both sides discussion and agreement. Any other questions contact us directly!
Contact us:
Thanks to visit our YQ Automatic Welding Manipulator, welcome to contact us!
