YQ Steel Pipe Automatic Welding Center Welding Manipulator Manufacturer

YQ Steel Pipe Automatic Welding Center Welding Manipulator Manufacturer thumbnail-1
YQ Steel Pipe Automatic Welding Center Welding Manipulator Manufacturer photo-1
US$ 1,000 - 10,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Elevation Speed:
500/1000mm/min
Vertical Travel(mm):
2-8m
Contact Supplier Request Quote Chat Now
Jiangsu Silver Coast International Trade Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Elevation Speed 500/1000mm/min
Vertical Travel(mm) 2-8m
Horizonal Travel(mm) 2-3m,3-5m,4-10m,7-9m
Application Welding
Place of Origin Jiangsu, China
Brand Name YQ(YaoQiang)
Model Number HJ2020
Weight Max : 1000kg
Dimension(L*W*H) Customized
Power(W) AC220V 10V50/60HZ
Certification ISO & SGS & CE
Warranty 12Months
After-sales Service Provided Engineers available to service machinery overseas

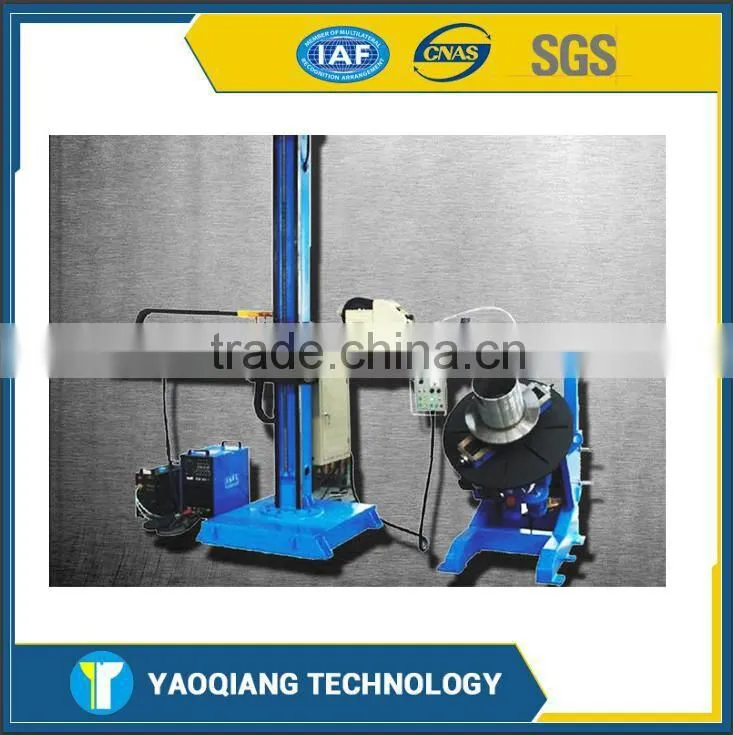

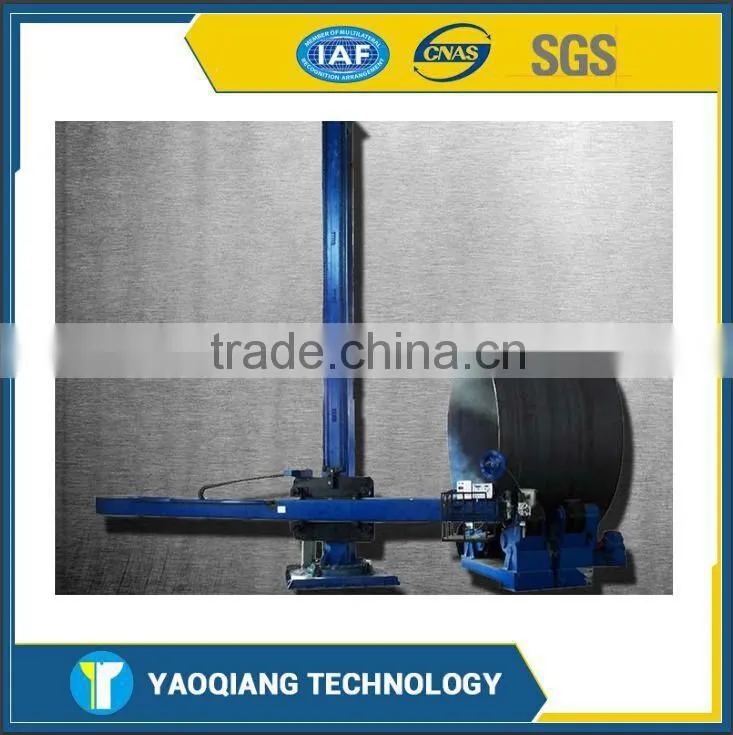

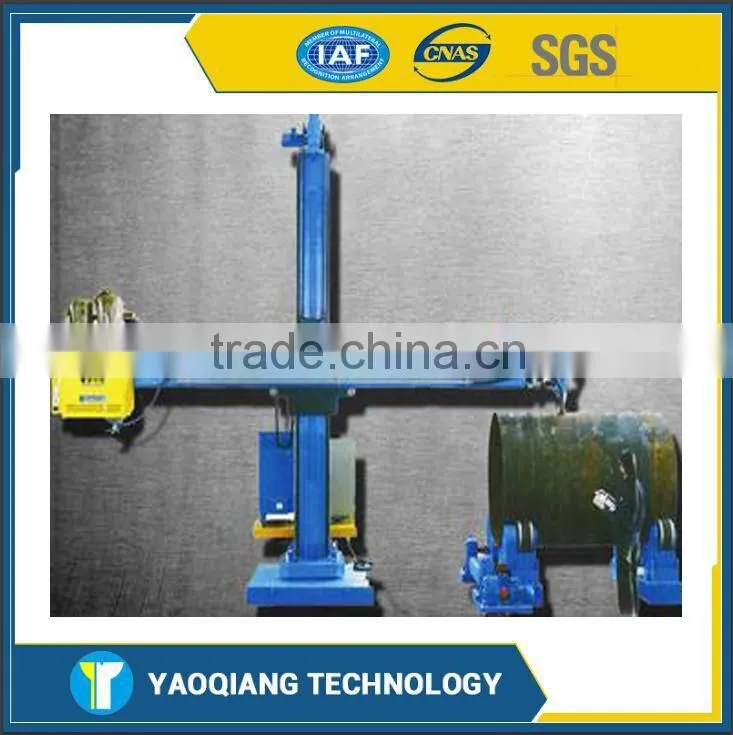

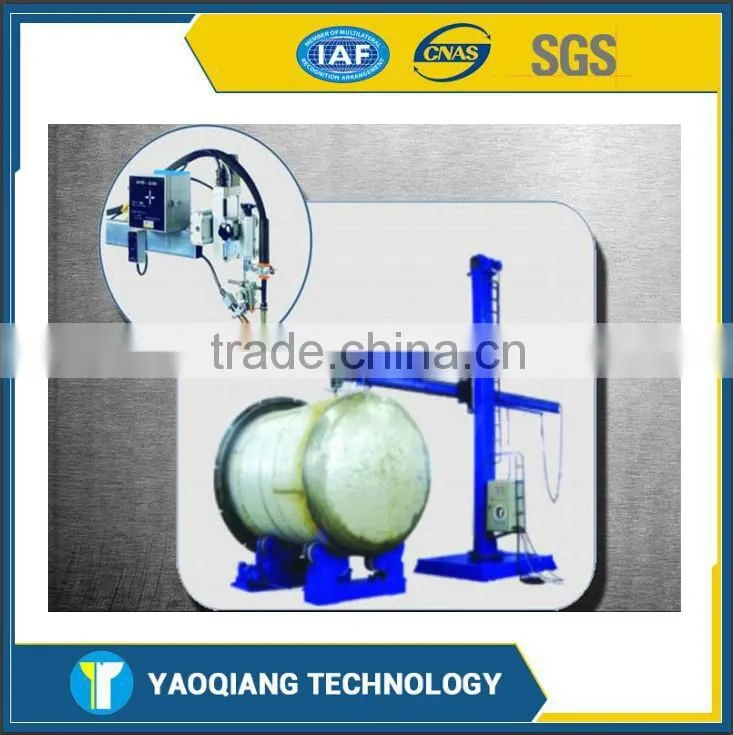

                           YQ Pipe Automatic Welding Manipulator


Product Description

Specification:

Welding manipulator is working together with roller frame, positioned and etc. To weld the work piece inside and outside circular seam, corner seam, outside and inside longitudinal seam.According to

customer specific need, various structures, welders, and assistant devices like tracking,sway,monitor, flux recovery and transmission are optional for users. Besides, we can also design and manufacture

the exact type suited for users too.



Structure: Fixed type, fixed and rotary (manual) type, mobile and rotary type.

Function: The cross arm effectively stretch and lift. The welding head can adjust up and down, left and right. Standing column turns, vehicle moves.
The cross arm operation accuracy: ≤ 1mm/1000m.
Welder optional: Automatic SAW, CO2 MAG/MIG, TIG welder.
Optional function: Flux recovery and transmission machine, video monitor, welding seam sway,

automatic tracking, arc length control, platform for worker.



Model

HJ2020

HJ3030

HJ3040

HJ4050

HJ5060

HJ6060

HJ7070

HJ8080

effective arm extension stroke m

2-3

3-5

4-6

4-7

4-8

4-9

7-9

4-10

effective arm vertical stroke m

2

3

3

4

5

6

7

8

arm extension speed mm/min

120-1200 AC frequency converter stepless speed adjustment

arm elevation speed mm/min

500

1000

column rotary angle °

±180 by manual

arm end load kg

100

200

vehicle travel speed mm/min

2000

vehicle slide center distance mm

1200

1560

cross shape adjusting unit mm

up and down 100, left and right:100

 YQ Steel Pipe Automatic Welding Center Welding Manipulator ManufacturerYQ Steel Pipe Automatic Welding Center Welding Manipulator ManufacturerYQ Steel Pipe Automatic Welding Center Welding Manipulator ManufacturerYQ Steel Pipe Automatic Welding Center Welding Manipulator Manufacturer



Packaging & Shipping

Packaging & Delivery:

Packaging Details:Standard export package

Delivery Details:Within 30days after received your deposit

YQ Steel Pipe Automatic Welding Center Welding Manipulator ManufacturerYQ Steel Pipe Automatic Welding Center Welding Manipulator ManufacturerYQ Steel Pipe Automatic Welding Center Welding Manipulator ManufacturerYQ Steel Pipe Automatic Welding Center Welding Manipulator Manufacturer
