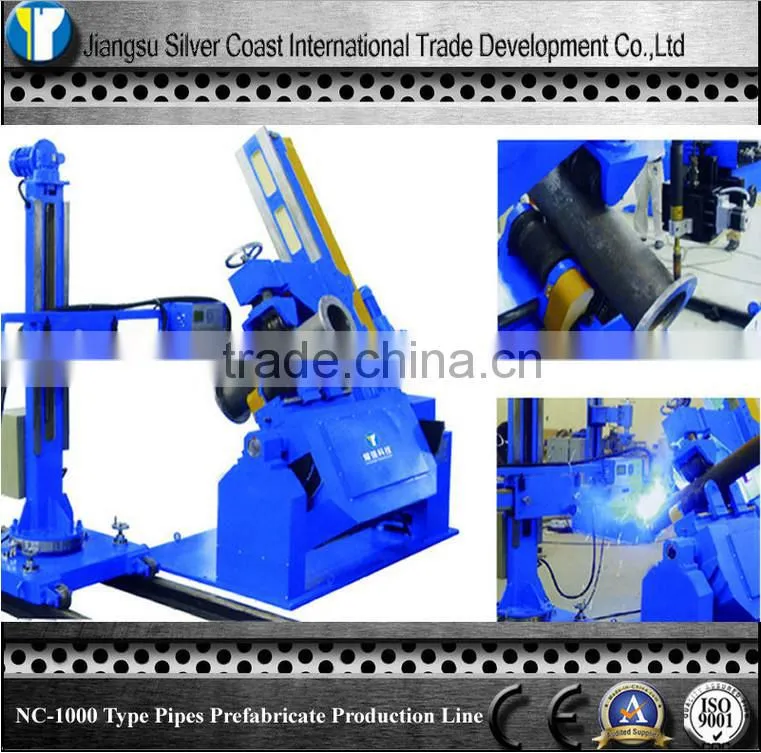

YQ NC-1000 Type Pipes Prefabricate Production LineUS$ 1,000 - 100,000MOQ: 1 Piece
-
Chinese Professional Automatic Steel Material Pretreatment Production LineUS$ 100 - 100,000MOQ: 1 Piece
-
YQ Professional Automatic Steel Material Pretreatment Production LineUS$ 100 - 100,000MOQ: 1 Piece
-
YQ Hot Sell Automatic Steel Material Surface Pretreatment Production LineUS$ 100 - 100,000MOQ: 1 Piece
Specifications
Prefabricate Production Line
1.Welding oscillator
2.Mini welding manipulator
3.Adjustable welding machine

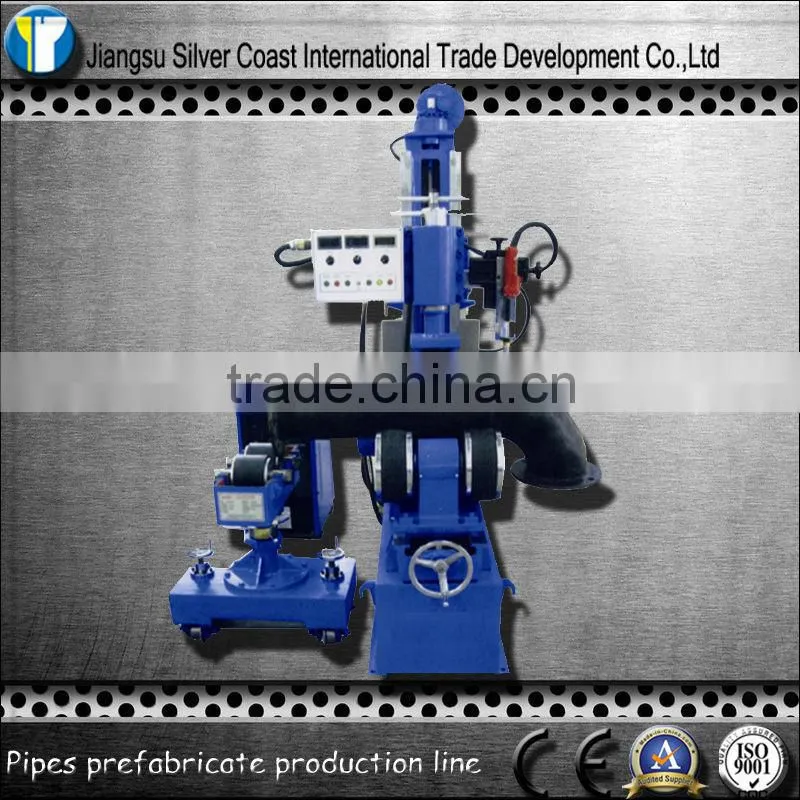

YQ Pipes Prefabricate Production Line
Specification:
1, PPAW press-tight turning roll frame
Stationary structure;
The turning roller rotary is controlled by electricity. The press and tighten roller elevation is controlled
by electricity. The core distance from rollers is adjusted by manual;
The frequency converter is with advanced imported technology, and has wide and accurate speed
range, and works table and reliable;
The pre-press load is 150kg of the upper pressing roller.
2, SZJ elevating roller frame
The frame can move;
The roller function is: rotate, elevate, and support work-piece;
The roller frame can lock itself.
3, Optional function device
Name and Model |
PPAW-05 roller frame |
Load capacity |
5000kg |
Work piece diameter |
Φ80-Φ610mm |
Roller linear speed |
120-1200mm/min |
Core distance between two rollers |
280-500mm |
Name and Model |
SZJ roller elevating frame |
Load capacity |
5000kg |
Elevating route |
280mm |
Core distance between two rollers |
160-300mm |
Roller diameter |
150mm |
Our services:
1.Oversea engineers:
We provide oriented after-sales service including the oversea engineers tranning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where you are.
2.Learning trip:
We welcome engineers from your side to learn the technical design and normal maintenance here, this will help you easyly to understanding.
3.English Manual:
We have Mannual to show you along with the machine.So you can learn this from the existing document to deeper your knowledge and understanding.
4.Face to face to teacing:
Through internet video face to face for machine teaching,because of the high development in internet,the world has become smaller and you can easy contact us if any assistance needed.
5.Through all the ways,we will guarantee the service quality and ensure you will be well helped anything anywhere.
Our company:
Jiangsu Yaoqiang Technical Group is a dealers holding type and high-tech enterprise. It mainly supply welding, cutting, milling, pipe producing production line as well as electrical automation equipment. The group consists of Jiangsu Silver Coast International Trading Development Co., Ltd (locate in Wuxi)& Dongtai Yaoqiang Mechinery Manufacture Co., Ltd. While Wuxi company, which is located in National technical industry park, i. e.The Wuxi Liando U Valley, besides the Taihu lake with beautiful scenery and renowned humanities, is mainly focus on enterprise blue print, R&D, marketing,trading, management
and finance. The Dongtai plant is devoted to technics, manufacture, process control, test and after-service, which locates at Dongtai Tangyang Xinhong Machinery industry park, in the wet land area off the seashore of Huanghai.
So we are manufacturer and trader. The Wuxi part is for trading and Dongtai part is for produring.
If you are interested in this product,please send E-mail to me or contact me directly!
