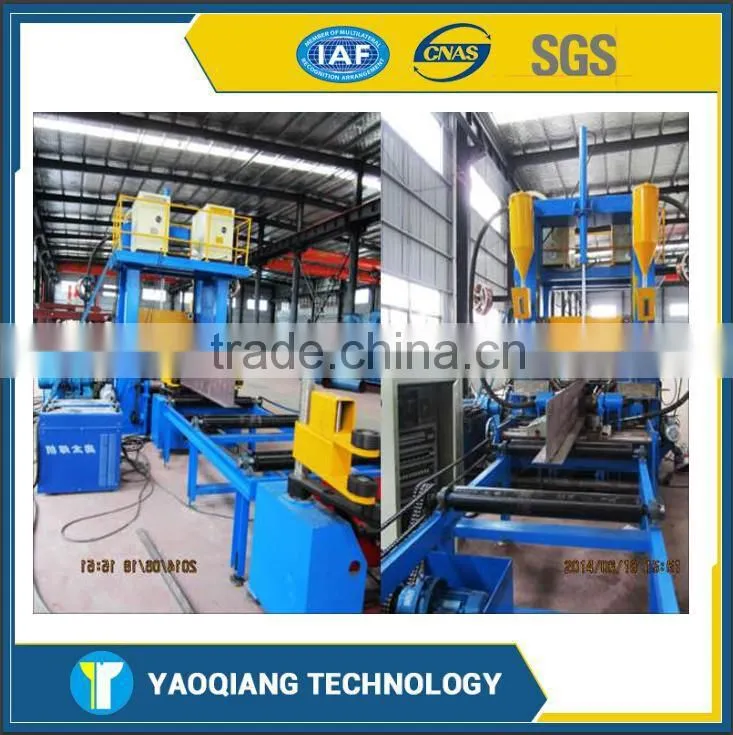

Help CenterSteel Structure Assembling,Welding and Straightening 3 in 1 Machine
Related Products
-
Assembling and Welding and Straightening Machine H Beam Production LineUS$ 10,000 - 30,000MOQ: 1 Piece -
U/Box Type Assembly MachineNegotiableMOQ: 1 Set
-
Heavy/ Light Duty H-beam Production LineNegotiableMOQ: 1 Set
-
NC-1000 Type Pipes Prefabricate Production LineNegotiableMOQ: 1 Piece
-
NC-1000 Type Pipes Prefabricate Production Line With Cheap PriceNegotiableMOQ: 1 Piece

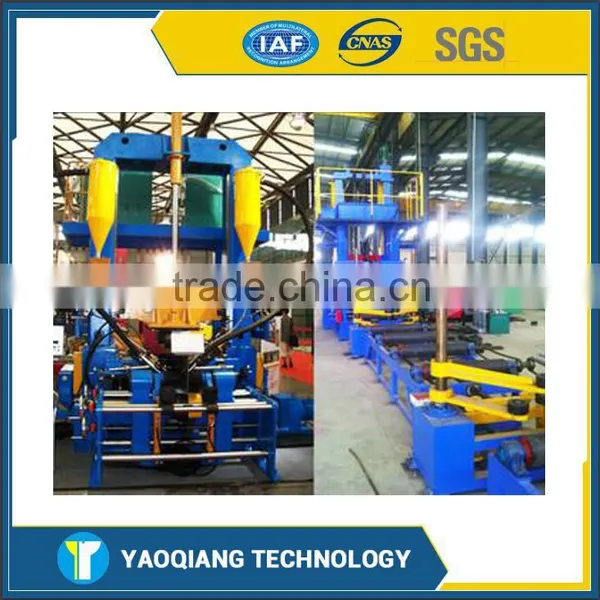

YQ I/H beam Auto-assembly Machine
Specification:
1.The main assembly unit adopts the heavy duty assembly machine patent which has been submitted for approval.The web and flange are positioned automatically,with highly improved accuracy and
efficiency;
2.The endurable welding guns fix device can adjust height as well as horizontal move place.It can also adjust the welding guns angle from 2 position.So the welding seam can be nice and neat;
3.Assisting straightening part have unique design.The two straightening wheels could actively straight en the work piece under cylinder drive.From the straightening device,the user can see clearly the welding seam,easy for welding gun position adjustment and observation of welding seam;
4.The main assembly unit together with assistant straightening unit could be used as assembly- weld machine or assembly machine separately;
5.After modification,the straightening unit could be used as mini straightening machine.
| Work piece flange width / thickness | 200-600mm / 6-20mm |
| Work piece web highness / thickness | 350-1500mm / 6-14mm |
| Main drive roll diameter | Φ250mm |
| Main drive roll speed | 350-6000mm/min |
| Main drive roll speed adjust | AC frequency no rate speed adjustment |
| Straightening wheel diameter | Φ180mm |
| Straightening hydro-cylinder lift length | 200mm |
| Straightening hold wheel diameter | Φ380mm |
| Main drive roll engine power | 7.5KW |
| Upper roller wheel diameter | Φ160mm |
| Upper roller lift hydro-cylinder distance | 1350mm |
| Model No. | YQPJ1000 / YQPJ1200 / YQPJ1500 |
Model |
web height |
web thickness |
welding and straightening speed |
flange width |
flange thickness |
overall power |
YQPJ1000 |
1000mm |
6-16mm |
0.35-3m/min |
200-800mm |
6-20mm |
13.4kw |
YQPJ1200 |
1200mm |
6-16mm |
0.35-3m/min |
200-800mm |
6-20mm |
13.4kw |
YQPJ1500 |
1500mm |
6-16mm |
0.35-3m/min |
200-800mm |
6-20mm |
13.4kw |
Packaging & Delivery:
Packaging Details:Standard export package
Delivery Details:Within 30days after received your deposit
