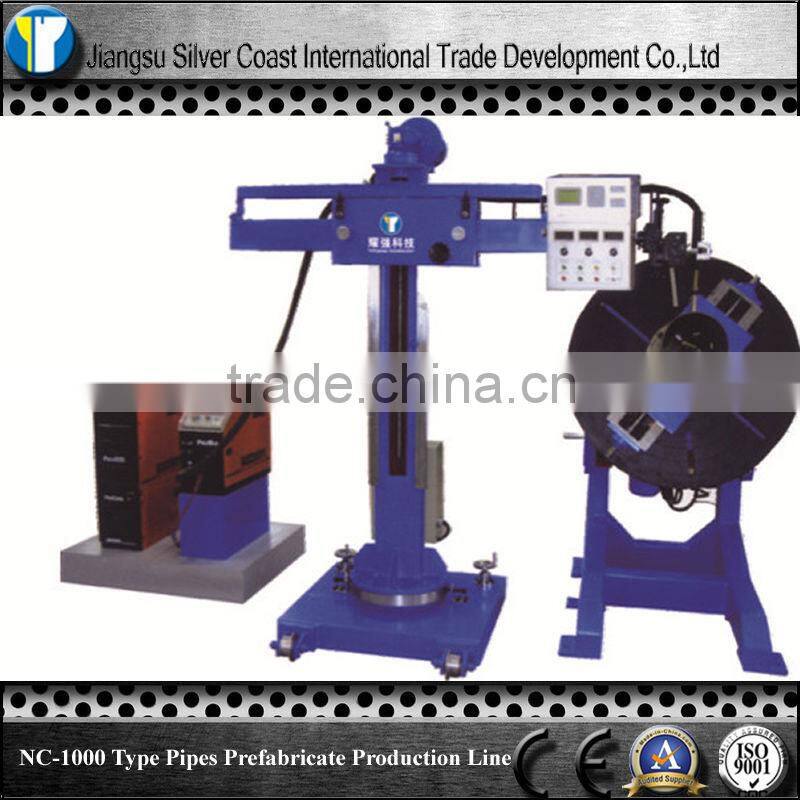

Help CenterNC-1000 Type Pipes Prefabricate Production Line With Cheap Price
Related Products
A.Welding manipulator:
(1)Move and control by manual;
(2)Up and down movement of the welding gun is electricity control,while the turning left and right is by manual,with manual cross adjustment at the end;
(3)The standing column could turn around and can tighten and lock.
B.Welding turning roll:
(1)Stationary structure;
(2)Tube rotary is controlled by electricity device.The whole turning roll can turn over in a whole.The
upper press roller can lift up and down with electricity control;
(3)The frequency converter is with advanced imported technology,has wide and accurate speed
range,and works table and reliable;
(4)The pre-press load is 150kg of the upper pressing roller.
C.Optional function device vibrator.
Short pipe auto welding com bination |
Adjustable welding positioner |
Microminiature welding manipulator |
Welding oscillator |
Kemmpi multi-function welder |
Model |
GGLJ-1000 |
GGLJ-600 |
Tube diameter |
Φ160 to Φ1000mm |
Φ60-Φ600mm |
Loading capacity |
3000kg |
2000kg |
Roller linear speed |
120-1200mm/min |
120-1200mm/min |
Elevating speed |
300mm/min |
300mm/min |
