Worm and Worm Gear Reducer

Worm and Worm Gear Reducer thumbnail-1
Worm and Worm Gear Reducer thumbnail-2
Worm and Worm Gear Reducer thumbnail-3
Worm and Worm Gear Reducer thumbnail-4
Worm and Worm Gear Reducer photo-1
Worm and Worm Gear Reducer photo-2
Worm and Worm Gear Reducer photo-3
Worm and Worm Gear Reducer photo-4
US$ 50 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Gearing Arrangement:
Worm
Output Torque:
107-13500N.m
Rated Power:
0.39-189
Contact Supplier Request Quote Chat Now
Jiangsu Silver Coast International Trade Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Gearing Arrangement Worm
Output Torque 107-13500N.m
Rated Power 0.39-189
Input Speed 0-1500rpm
Output Speed 0-300rpm
Place of Origin Jiangsu, China
Model Number CW
Brand Name KEYIDE
Product Description

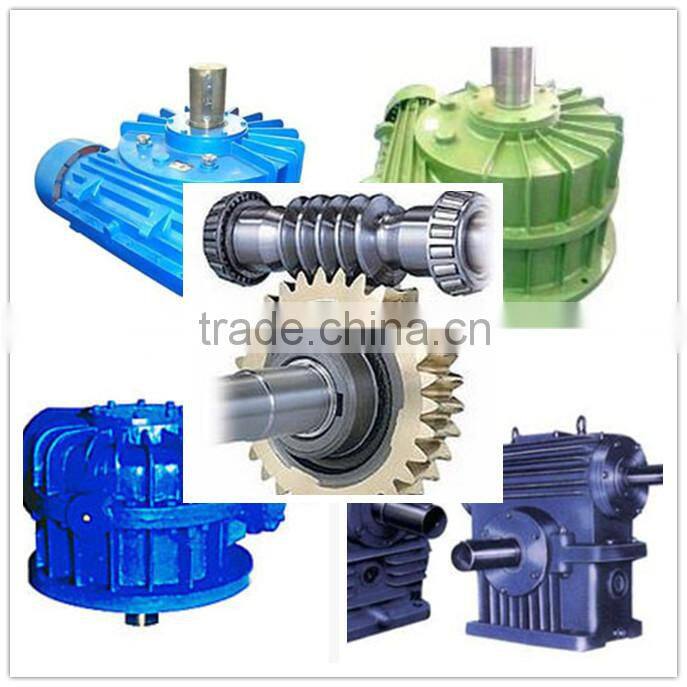

 CW series arc cylinder worm reductor uses single grade worm reduction drive, up to standard JB/T 7935-95, this series reachs international level in 1990s. This series includes three types, 16 types center distance(63-500mm) and 12 types speed ratio(i=5-63). Input power range 0.39-189kw, output torque range 107-13500N.m.

Arc cylinder worm reductor can transport forword reverse, input rotational speed not more 1500r/min, operation ambient temperature:-40~40℃; Lubrication must be heated to the temperature above 0℃; It must be forced to cool when the ambient temperature above 40℃.

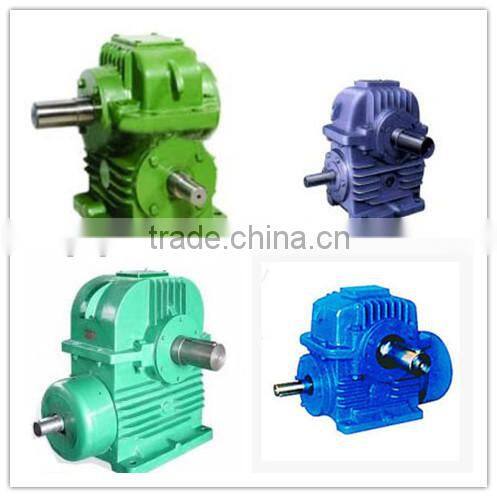

THREE TYPE



CWU--worm below worm gear type;
CWO--worm above worm gear type;
CWS--worm beside worm gear type.



1 adopts single-stage worm transmission
2 meeting the standard of JB/T7935---95



3 high efficiency, low noise



4 long use life and 1year warranty period



5 widely used in  metallurgy, mining, lifting, transportation, chemical industry, construction, building materials, energy, light industry and other industries



Worm and Worm Gear ReducerWorm and Worm Gear Reducer

IF YOU ARE INTERESTED IN THIS PRODUCT, PLEASE CONTRACT WITH ME AT ONCE AND TELL ME THE TYPE,PROABLE CENTER DISTANCE ,RATIO AND OTHER MORE DETAILS YOU REQUIRED. I WILL REPLY TO YOU AT FIRST TIME.
