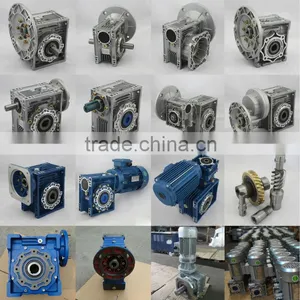

Al-alloy Mini Worm Speed Reducer

Name: Al-alloy Mini Worm Speed Reducer
Brand: KEYIDE
SKU: 129164549

US$ 100 - 2,000 MOQ: 1 Set

Key Specifications

Gearing Arrangement:

Worm

Output Torque:

0.29-2450Nm, by the Ratio

Rated Power:

0.06-15kW

Jiangsu Silver Coast International Trade Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Gearing Arrangement Worm

Output Torque 0.29-2450Nm, by the Ratio

Rated Power 0.06-15kW

Input Speed 1500

Output Speed 14-186.7

Model Number RV

Brand Name KEYIDE

♦good quality
♦whoesales and retail
♦professional shopping guide

Product Description

KEYIDE manufactures good quality Small to Large capacity NMRV Series Flange Mounted Worm Gear Reducer in china.

Features:

1.large speed ratio range

2.small volume,low weight ,saving space for mounting.

3.high efficiency,high mechanical strength and high quality aluminum alloy housing

4.long life service,large output torque,low noise and little vibration

5.low temperature rise,omnibearing installation ,easy to connect with other machinery.

6.high carry ability,elegant apperance.

7.CE standard,input power can be 0.06KW-15KW

8.stable transmission

Type:	RV Series Worm Gear Reducer
Model:	NMRV030, 040, 050, 063, 075, 090, 110, 130
Ratio:	1:5, 7.5,10,15,20,25,30,40,50,60,80,100
Color:	Blue/silver/green or on customer’s request
Material:	Housing-aluminum with oven painting for RV030-090 gear reducer, cast iron for RV110 and 130 gear reducer.
	Worm Whele-ZQAl9-4-4-2
	Worm Shaft- 20Cr steel.The hardness of surface is 56-62HRC with carbonized layer 0.3-0.5mm
Bearing:	QC
Oil Seal:	CTY
Packing:	Inner pack: use plastic bag and foam box, Outer pack: carton or wooden case per set or based on customer's request.
Warranty:	1 year
Application:	Industrial Machine: Food Stuff, Ceramics, Chemical, Packing, Dyeing, Woodworking, Glass.
