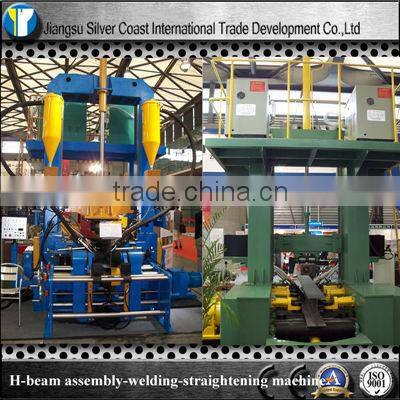

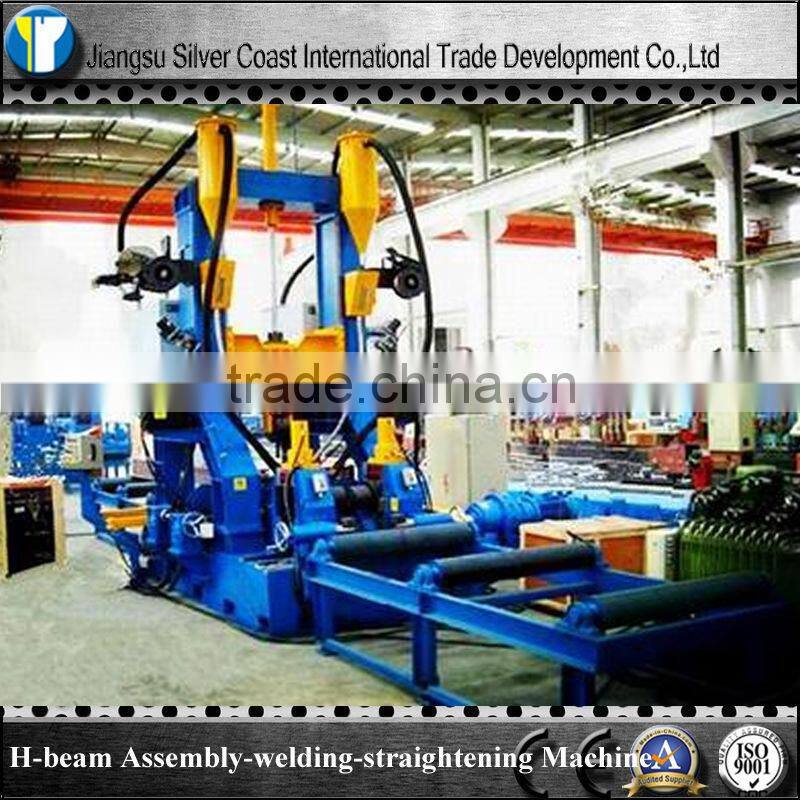

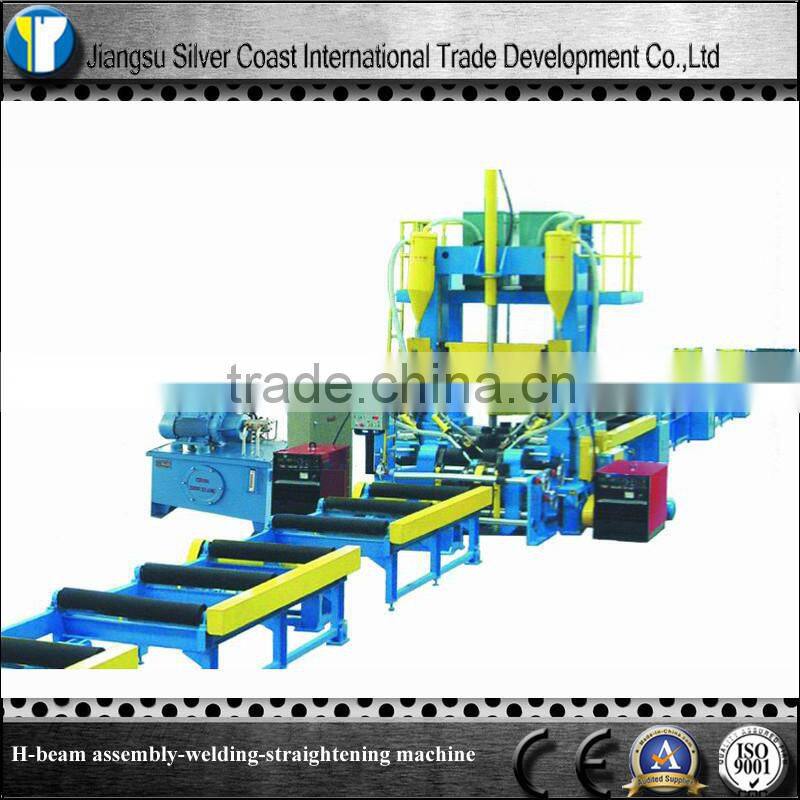

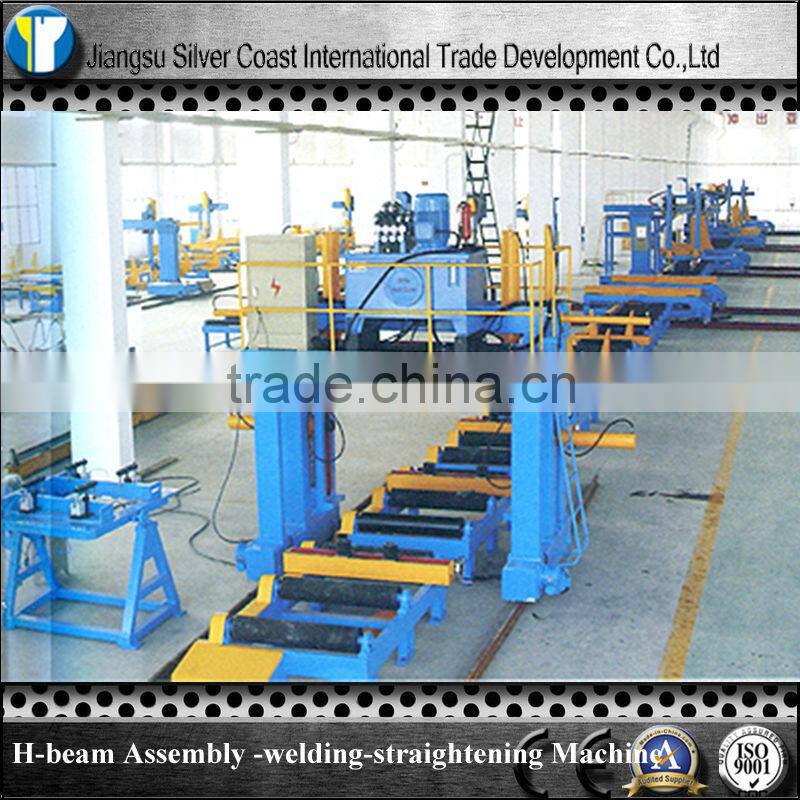

H-beam Production Line (Assembly-welding-straightening 3 in 1 machine)

Specifications

3 in 1 Integral Machine
1.Web Thickness:6-16MM
2.Web Height:1000/1200/1500MM
3.welding&straightening speed:0.35-3m/min

Specification:

1.The main assembly unit adopts the heavy duty assembly machine patent which has been submitted   for approval.The web and flange are positioned automatically,with highly improved accuracy and

efficiency;

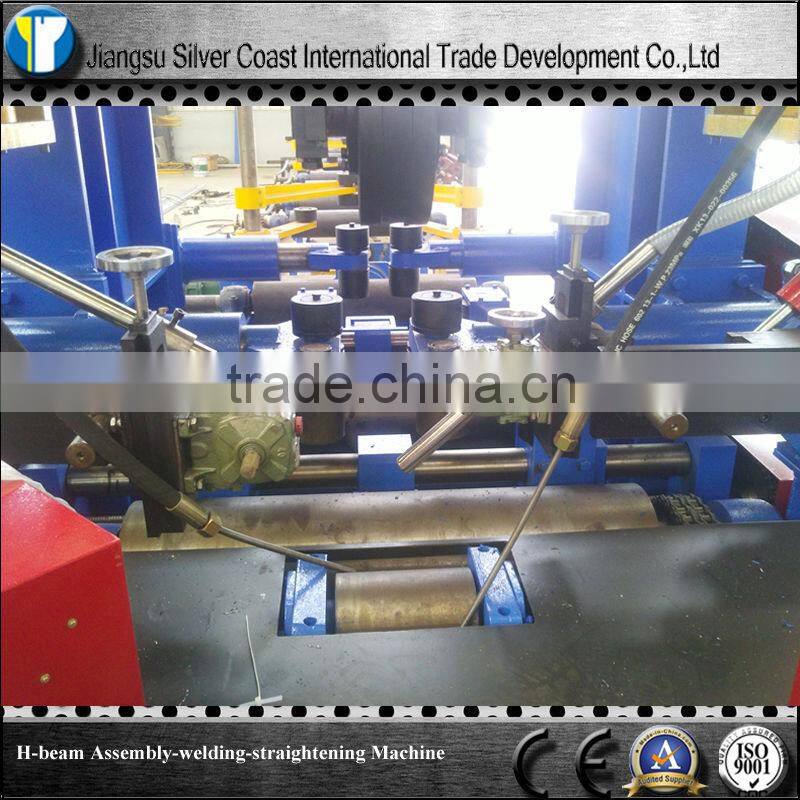

2.The endurable welding guns fix device can adjust height as well as horizontal move place.It can also  adjust the welding guns angle from 2 position.So the welding seam can be nice and neat;

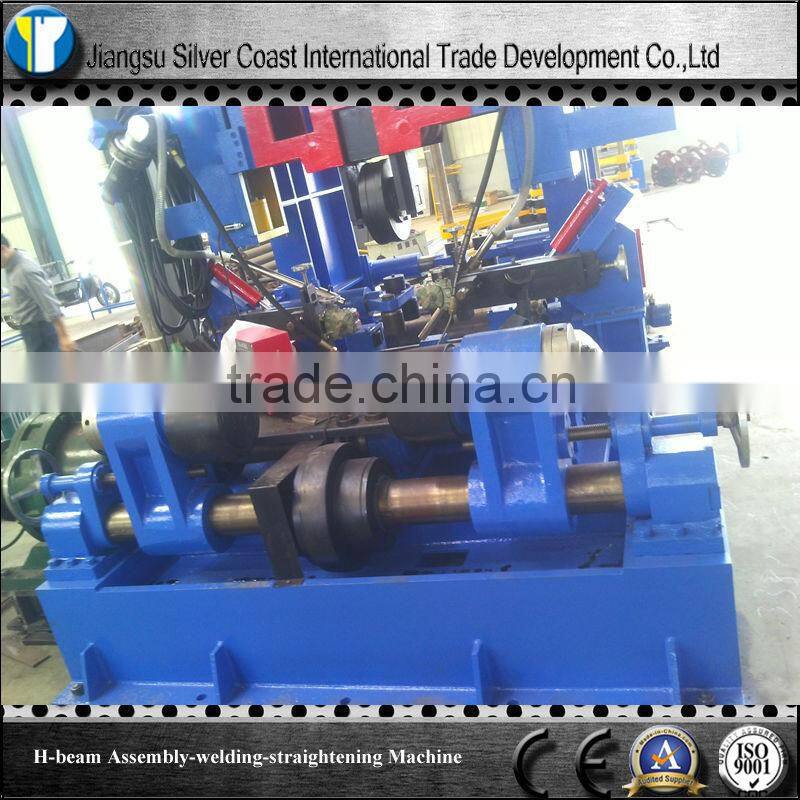

3.Assisting straightening part have unique design.The two straightening wheels could actively straight  en the work piece under cylinder drive.From the straightening device,the user can see clearly the      welding seam,easy for welding gun position adjustment and observation of welding seam;



4.The main assembly unit together with assistant straightening unit could be used as assembly-    weld machine or assembly machine separately;



5.After modification,the straightening unit could be used as mini straightening machine.





Work piece flange width /  thickness	200-600mm / 6-20mm
Work piece web highness / thickness	350-1500mm / 6-14mm
Main drive roll diameter	Φ250mm
Main drive roll speed	350-6000mm/min
Main drive roll speed adjust	AC frequency no rate speed adjustment
Straightening wheel diameter	Φ180mm
Straightening hydro-cylinder lift length	200mm
Straightening hold wheel diameter	Φ380mm
Main drive roll engine power	7.5KW
Upper roller wheel diameter	Φ160mm
Upper roller lift hydro-cylinder distance	1350mm
Model No.	YQPJ1000 / YQPJ1200 / YQPJ1500





Model	web height	web thickness	welding and straightening speed	flange width	flange thickness	overall power
YQPJ1000	1000mm	6-16mm	0.35-3m/min	200-800mm	6-20mm	13.4kw
YQPJ1200	1200mm	6-16mm	0.35-3m/min	200-800mm	6-20mm	13.4kw
YQPJ1500	1500mm	6-16mm	0.35-3m/min	200-800mm	6-20mm	13.4kw









equipment quality promise:
1, the Company's manufacturing facilities are applicable to the relevant national standards and enterprise standards.
2, the company's products are manufactured to meet the technical requirements and parameters should be listed in the specification and to ensure safety and reliability.
3, the company may send engineers to the demand-side participation to help guidance of installation and commissioning of equipment until the machine is qualified and can be put into use. Also we can help the demand side with training equipment operators and maintenance personnel. (Note: The installation and commissioning of equipment abroad, we will take cost in accordance with the cost of a standard international practice)
4 Equipment has 1 year warranty, during the warranty period, the company can track service and maintenance.



Our services:

1.Oversea engineers:
We provide oriented after-sales service including the oversea engineers tranning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where you are.

2.Learning trip:
We welcome engineers from your side to learn the technical design and normal maintenance here,  this will help you easyly to understanding.

3.English Manual:
We have Mannual to show you along with the machine.So you can learn this from the existing document to deeper your knowledge and understanding.

4.Face to face to teacing:
Through internet video face to face for machine teaching,because of the high development in internet,the world has become smaller and you can easy contact us if any assistance needed.

5.Through all the ways,we will guarantee the service quality and ensure you will be well helped anything anywhere.





Our company:

Jiangsu Yaoqiang Technical Group is a dealers holding type and high-tech enterprise. It mainly supply welding, cutting, milling, pipe producing production line as well as electrical automation equipment. The group consists of Jiangsu Silver Coast International Trading Development Co., Ltd (locate in Wuxi)& Dongtai Yaoqiang Mechinery Manufacture Co., Ltd. While Wuxi company, which is located in National technical industry park, i. e.The Wuxi Liando U Valley, besides the Taihu lake with beautiful scenery and renowned humanities, is mainly focus on enterprise blue print, R&D, marketing,trading, management

and finance. The Dongtai plant is devoted to technics, manufacture, process control, test and after-service, which locates at Dongtai Tangyang Xinhong Machinery industry park, in the wet land area off the seashore of Huanghai.



So we are manufacturer and trader. The Wuxi part is for trading and Dongtai part is forproducing.



Here we make a promise to you all: we will offer you the products with the ideal price and good quality.
If you have any problems or you are interested in our products, Please contact me via Email or following ways:



Skype:Sakina135246
QQ:2696243358
Tel:0086-15061825918
