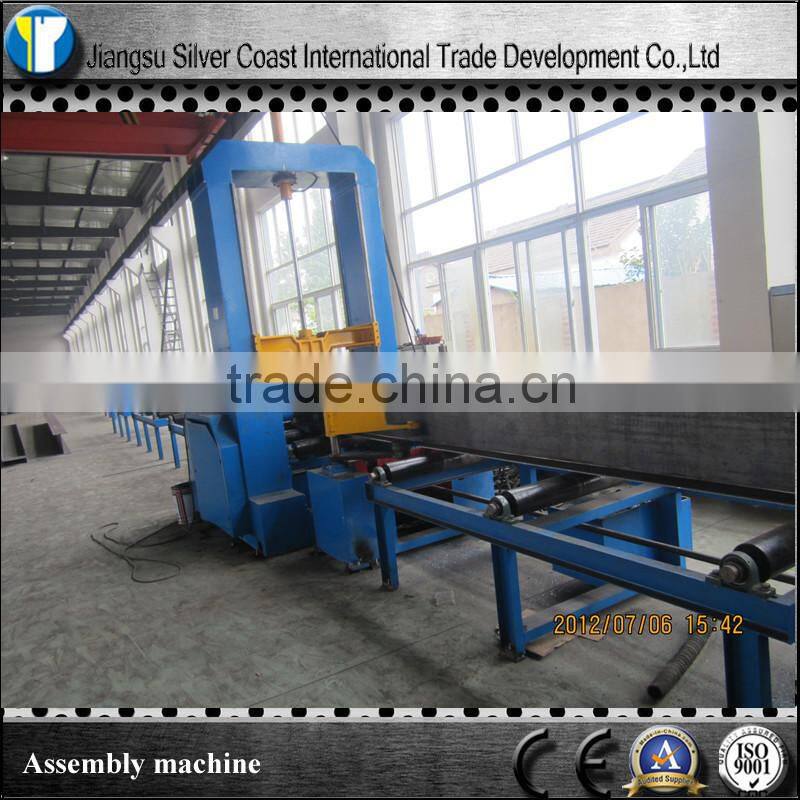

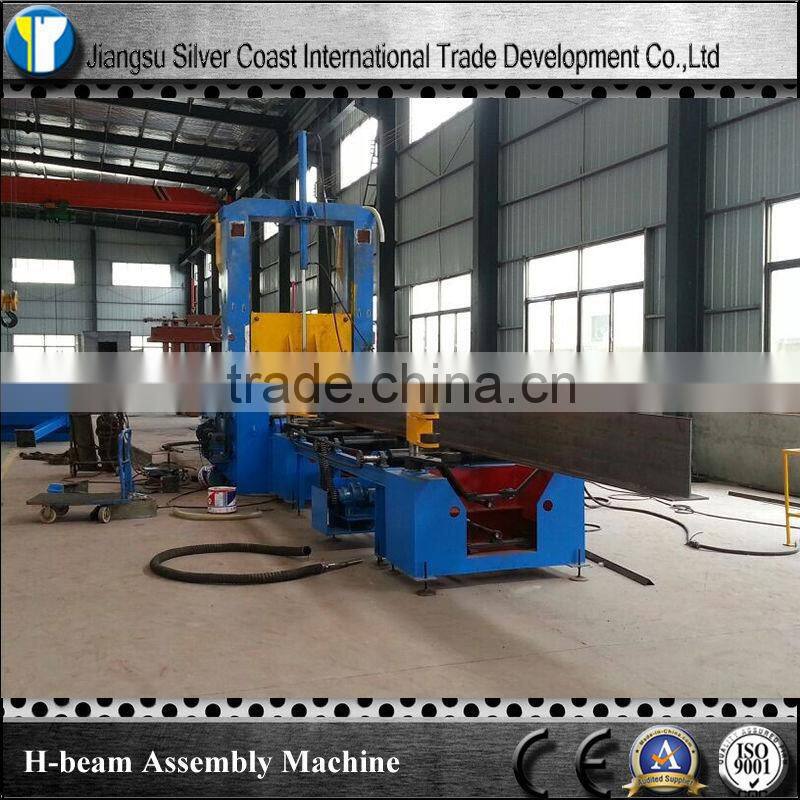

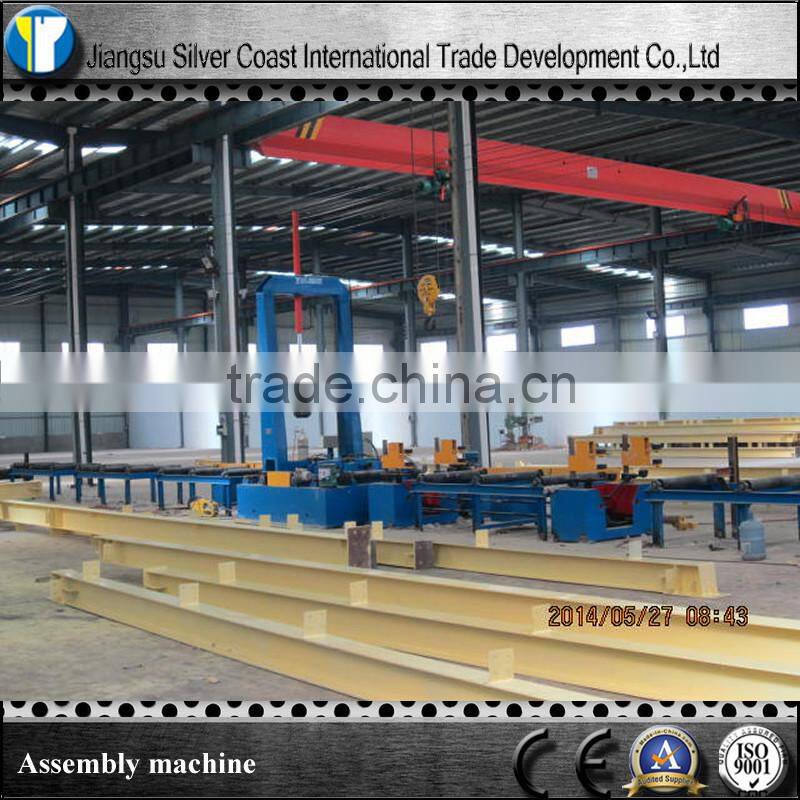

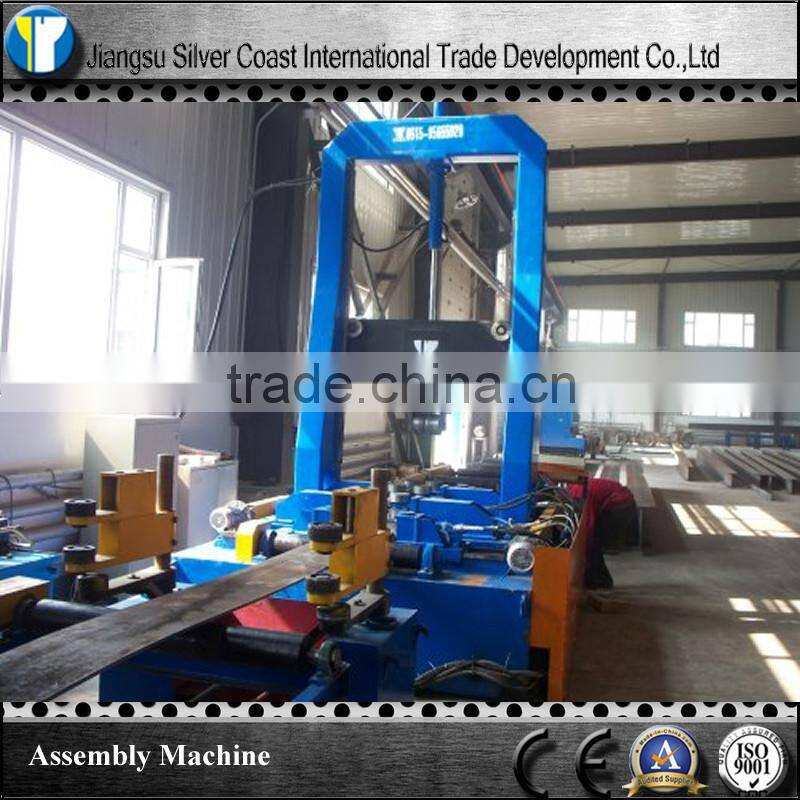

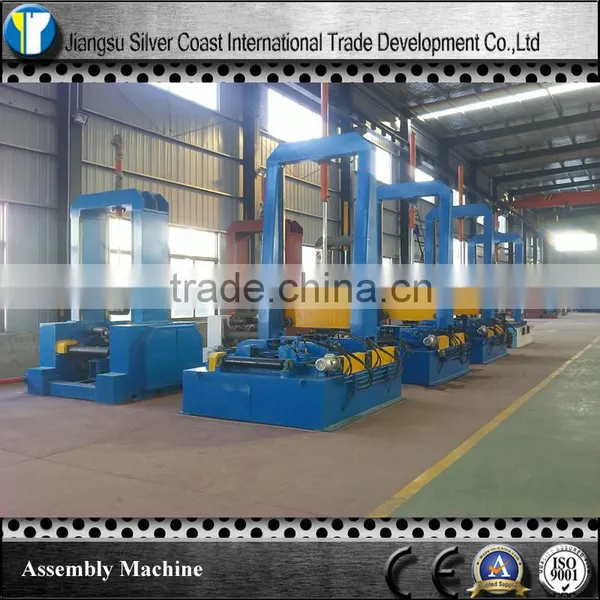

H beam automatic assembly machine with welder
Supply scope:

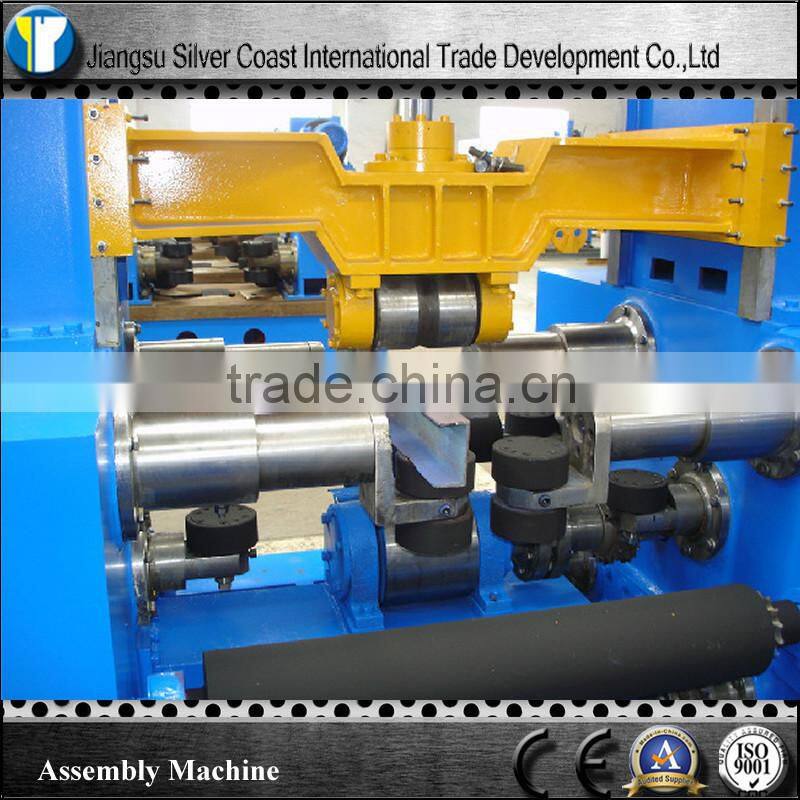

1,The main structure: main frame, upper gate frame, synchronous clamping and centralizing system
of web and flange, main transmission motor reducer.
2,Inlet table roller system: active and passive table roller: 2.6m*3sets, tension rod: 3 sets.
3,Outlet table roller system: active and passive table roller: 2.6m*3sets.
4,Hydraulic system: oil bump station, high pressure rubber pipe, and hydraulic cylinder.
5,Electric control system: electric cabinet, AC frequency converter and etc.
6,Clamping system:web and flange automatic clamping;
7,CO2 gas shield welding or manual welding are optional for user.
Model |
Z15 |
Z18 |
Z20 |
web height mm |
200-1500 |
200-1800 |
200-2000 |
web thickness mm |
6-32 |
6-32 |
6-32 |
web length mm |
4000-15000 |
4000-15000 |
4000-15000 |
flange width mm |
200-800 |
200-800 |
200-800 |
flange thickness mm |
6-40 |
6-40 |
6-40 |
assembly speed mm/min |
500-6000 |
500-6000 |
500-6000 |
feeding table roller mm |
2600×2 |
2600×2 |
2600×2 |
output table roller mm |
2600×2 |
2600×2 |
2600×2 |
equipment quality promise:
1, the Company's manufacturing facilities are applicable to the relevant national standards and enterprise standards.
2, the company's products are manufactured to meet the technical requirements and parameters should be listed in the specification and to ensure safety and reliability.
3, the company may send engineers to the demand-side participation to help guidance of installation and commissioning of equipment until the machine is qualified and can be put into use. Also we can help the demand side with training equipment operators and maintenance personnel. (Note: The installation and commissioning of equipment abroad, we will take cost in accordance with the cost of a standard international practice)
4 Equipment has 1 year warranty, during the warranty period, the company can track service and maintenance.
