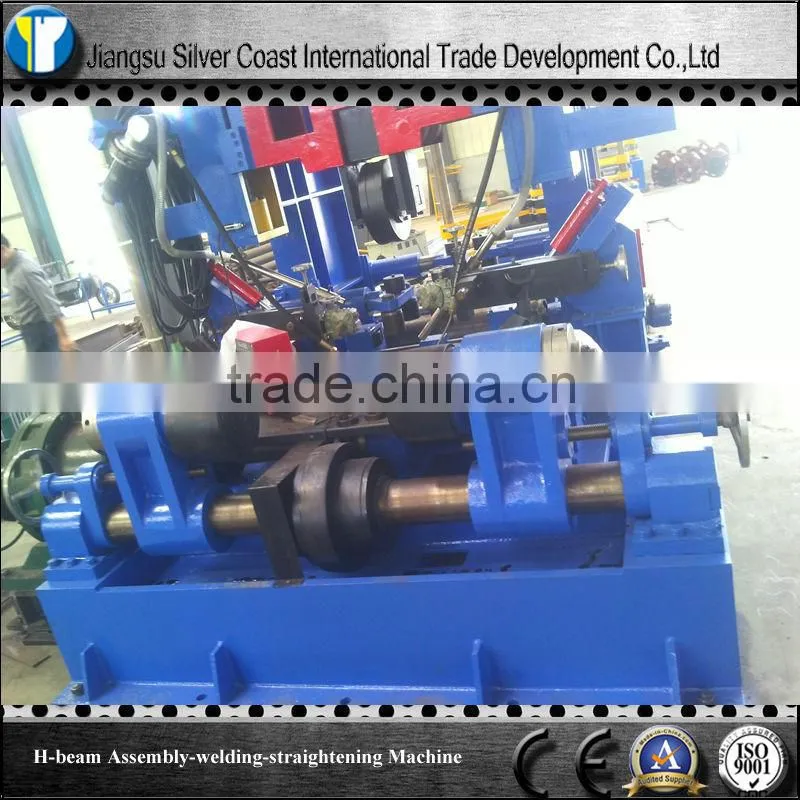

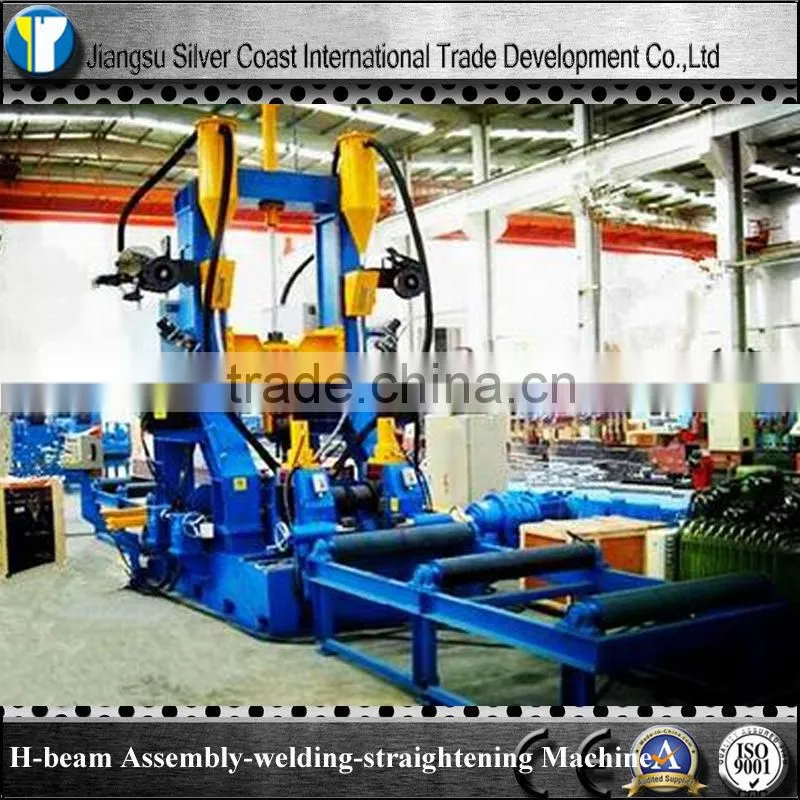

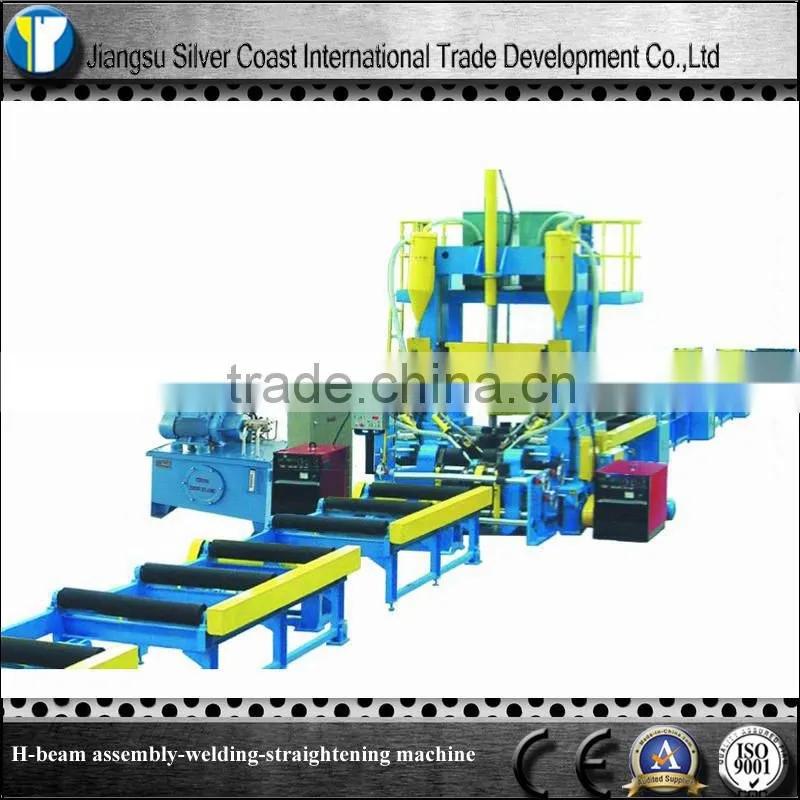

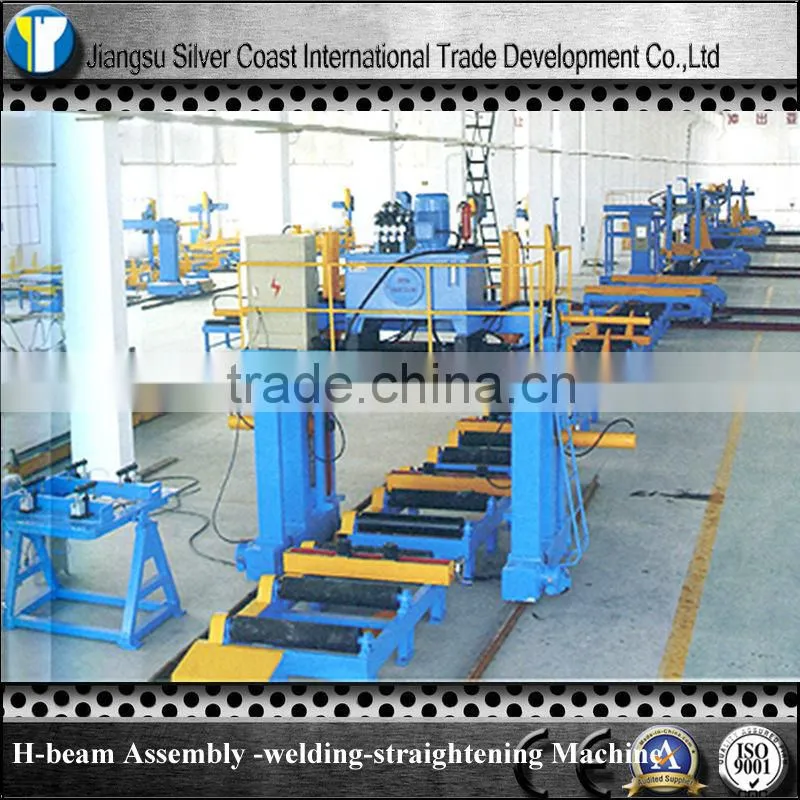

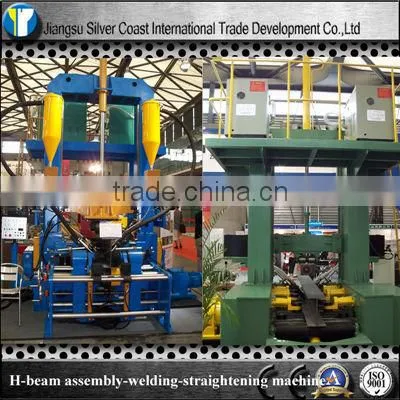

H-beam Production Line with Assembly-welding-straightening Machine
- 100 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Double Platform Stainless Steel Kitchen Equipment Polishing Machine
- Photovoltaic solar panels recycling plant
- Solar panel recycling machine with high efficiency
- Micro wire mesh weaving machine from LANYING wire mesh weaving machine
- LANYING woven wire mesh machines - stainless steel wire mesh weaving machines
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | yaoqiang | Model Number: | YQPJ |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
3 in 1 Integral Machine1.Web Thickness:6-16MM
2.Web Height:1000/1200/1500MM
3.welding&straightening speed:0.35-3m/min
Specification:
1.The main assembly unit adopts the heavy duty assembly machine patent which has been submitted for approval.The web and flange are positioned automatically,with highly improved accuracy and
efficiency;

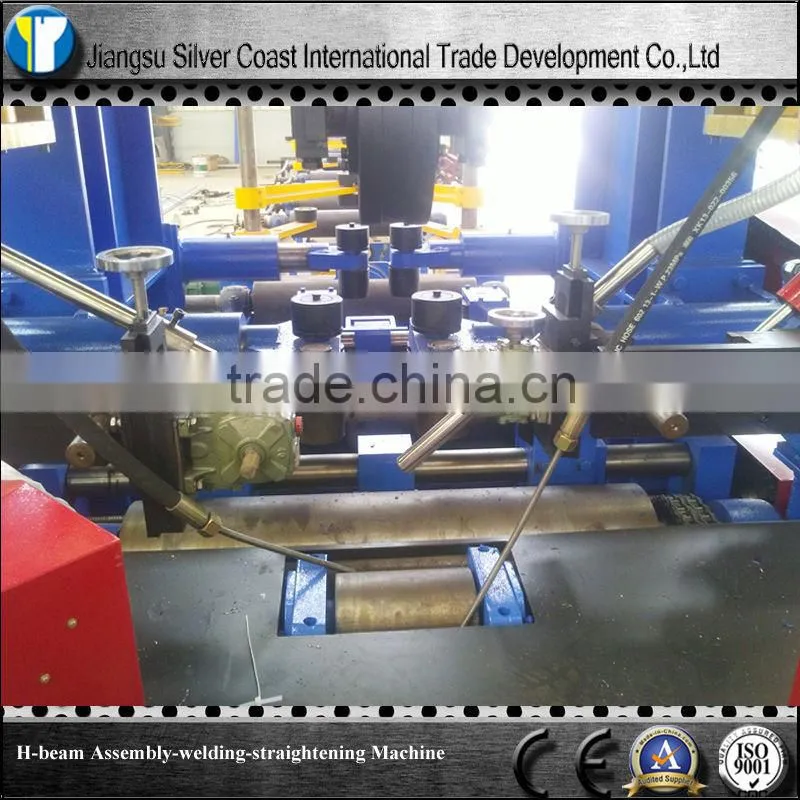

2.The endurable welding guns fix device can adjust height as well as horizontal move place.It can also adjust the welding guns angle from 2 position.So the welding seam can be nice and neat;
3.Assisting straightening part have unique design.The two straightening wheels could actively straight en the work piece under cylinder drive.From the straightening device,the user can see clearly the welding seam,easy for welding gun position adjustment and observation of welding seam;
4.The main assembly unit together with assistant straightening unit could be used as assembly- weld machine or assembly machine separately;
5.After modification,the straightening unit could be used as mini straightening machine.
Work piece flange width / thickness | 200-600mm / 6-20mm |
Work piece web highness / thickness | 350-1500mm / 6-14mm |
Main drive roll diameter | Φ250mm |
Main drive roll speed | 350-6000mm/min |
Main drive roll speed adjust | AC frequency no rate speed adjustment |
Straightening wheel diameter | Φ180mm |
Straightening hydro-cylinder lift length | 200mm |
Straightening hold wheel diameter | Φ380mm |
Main drive roll engine power | 7.5KW |
Upper roller wheel diameter | Φ160mm |
Upper roller lift hydro-cylinder distance | 1350mm |
Model No. | YQPJ1000 / YQPJ1200 / YQPJ1500 |
Model | web height | web thickness | welding and straightening speed | flange width | flange thickness | overall power |
YQPJ1000 | 1000mm | 6-16mm | 0.35-3m/min | 200-800mm | 6-20mm | 13.4kw |
YQPJ1200 | 1200mm | 6-16mm | 0.35-3m/min | 200-800mm | 6-20mm | 13.4kw |
YQPJ1500 | 1500mm | 6-16mm | 0.35-3m/min | 200-800mm | 6-20mm | 13.4kw |
equipment quality promise:
1, the Company's manufacturing facilities are applicable to the relevant national standards and enterprise standards.
2, the company's products are manufactured to meet the technical requirements and parameters should be listed in the specification and to ensure safety and reliability.
3, the company may send engineers to the demand-side participation to help guidance of installation and commissioning of equipment until the machine is qualified and can be put into use. Also we can help the demand side with training equipment operators and maintenance personnel. (Note: The installation and commissioning of equipment abroad, we will take cost in accordance with the cost of a standard international practice)
4 Equipment has 1 year warranty, during the warranty period, the company can track service and maintenance.
Our services:
1.Oversea engineers:
We provide oriented after-sales service including the oversea engineers tranning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where you are.
2.Learning trip:
We welcome engineers from your side to learn the technical design and normal maintenance here, this will help you easyly to understanding.
3.English Manual:
We have Mannual to show you along with the machine.So you can learn this from the existing document to deeper your knowledge and understanding.
4.Face to face to teacing:
Through internet video face to face for machine teaching,because of the high development in internet,the world has become smaller and you can easy contact us if any assistance needed.
5.Through all the ways,we will guarantee the service quality and ensure you will be well helped anything anywhere.
Our company:
Jiangsu Yaoqiang Technical Group is a dealers holding type and high-tech enterprise. It mainly supply welding, cutting, milling, pipe producing production line as well as electrical automation equipment. The group consists of Jiangsu Silver Coast International Trading Development Co., Ltd (locate in Wuxi)& Dongtai Yaoqiang Mechinery Manufacture Co., Ltd. While Wuxi company, which is located in National technical industry park, i. e.The Wuxi Liando U Valley, besides the Taihu lake with beautiful scenery and renowned humanities, is mainly focus on enterprise blue print, R&D, marketing,trading, management
and finance. The Dongtai plant is devoted to technics, manufacture, process control, test and after-service, which locates at Dongtai Tangyang Xinhong Machinery industry park, in the wet land area off the seashore of Huanghai.
So we are manufacturer and trader. The Wuxi part is for trading and Dongtai part is forproducing.
Here we make a promise to you all: we will offer you the products with the ideal price and good quality.
