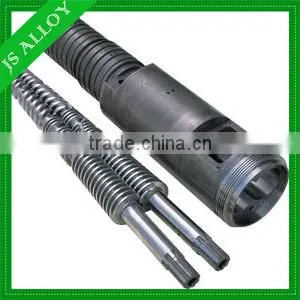

Help CenterConical Twin Screw and Barrel for Pelletizer/for Color Master Batch Production Line
Related Products
-
Pelletizer /Granulator Parallel Twin Screw Barrel for Extruder MachineUS$ 1,000 - 3,000MOQ: 1 Set -
Twin Screw and Barrel for Injection Moulding Machine/for Haitian Horizontal Type MachineUS$ 800 - 12,000MOQ: 1 Piece
-
Conical Twin Screw Barrel for Injection Moulding Machine/ for PC / PA / PBT / PET Plastic MachineUS$ 800 - 12,000MOQ: 1 Piece
-
Parallel Twin Screw Barrel for Plastic Extruder/for Pipe Production LineUS$ 600 - 15,000MOQ: 1 Piece
-
Parallel Counter Rotating Twin Screw and Barrel/double Screw and Barrel for Plastic MachineUS$ 1,000 - 3,000MOQ: 1 Set
Specifications
Twin screw barrel for pelletizer machine1)Name:65/132 Conical Twin Screw Barrel
2)Material:38CrMoAlA,SKD61,SKD11,42CRMO
Toptic: Conical twin screw and barrel for pelletizer/for color master batch production line
Conical twin screw and barrel specification:
Screw size scope: Φ35/75- Φ92/188mm
Φ35/76 |
Φ45/90 |
Φ50/105 | Φ51/105 |
| Φ55/110 | Φ60/125 | Φ65/120 | Φ65/132 |
| Φ70/140 | Φ75/150 | Φ80/143 | Φ80/156 |
| Φ92/188 | Φ 95/ 191 | Φ105/191 | Φ100/ 200 |
Conical Twin Screw Parameters
| Model | JS-51 | JS-55 | JS-65 | JS-80 | JS-92 |
| Screw dia.(mm) | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
| Max speed(rmp) | 40 | 38 | 38 | 37 | 36 |
| Main motor(kw) | 18.5 | 22 | 37 | 55 | 90 |
| Output(kg/h) | 80~100 | 100~150 | 150~250 | 250~380 | 380~700 |
| Center height(mm) | 1050 | 1050 | 1050 | 1050 | 1100 |
| Net weight(kg) | 3000 | 3500 | 4000 | 5500 | 8000 |
| L*W*H(m) | 3.6x1.1x2.1 | 3.6x1.1x2.1 | 4.2x1.5x2.4 | 4.7x1.5x2.4 | 6x1.6x2.5 |
Other data
- Base Material
|
1)38CrMoAlA(JIS SACM645) 2)Cr12MOV(JIS SKD-11) 3)4Cr5MoSiV1(JIS SKD-61) 4)42CrMo(AISI 4140) 5)9Cr18MoV |
- Technology Parameter
|
Depth of Nitrided Layer: 0.5-0.8 mm Hardness of Nitrided Layer: 950-1020Hv Thickness of Hard Chrome Plating Layer: 0.03-0.08mm Hardness of Hard Chrome Plating Layer: ≥950HV Depth of Bimetallic Layer: 2-3mm Hardness of Bimetallic Layer: HRC58°-62° Nitrided Brittleness:Less Than Grade 1 Surface Roughness:Ra 0.4um Screw Straightness:0.015mm |
- Material Application
1) Hrad Plastic polystyrene PS.ABS.SAN.EPN |
- Machinery Application
|
1) For Injection Moulding Machine 2) For Extruder 3) For Rubber Machine 4) For Blowing Machine 5) For Film Blowing Machine 6) For Drawing Machine 7) For Pelletizer/Granulator Machine 8) For Plastic Machine 9) For Recycle Machine
|
- Products Application
|
|

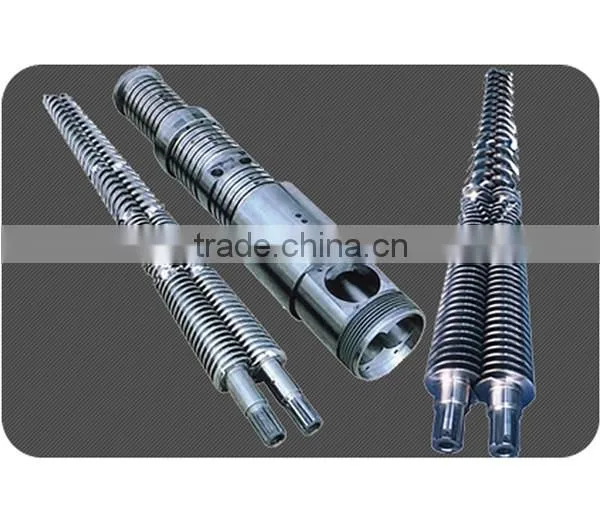

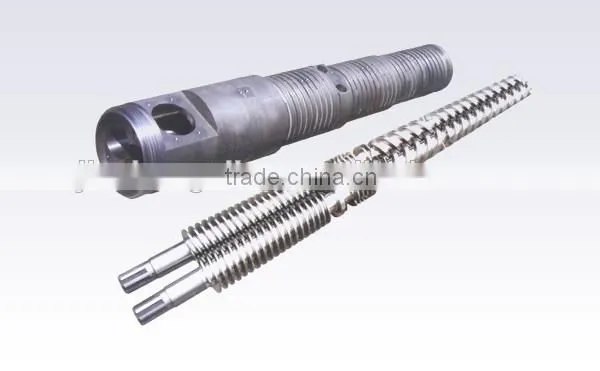

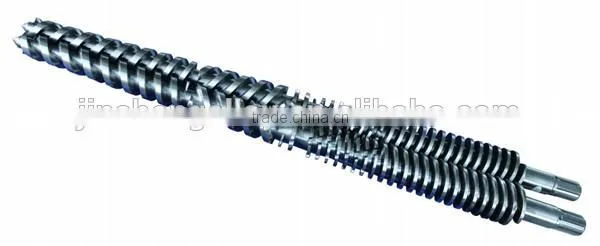

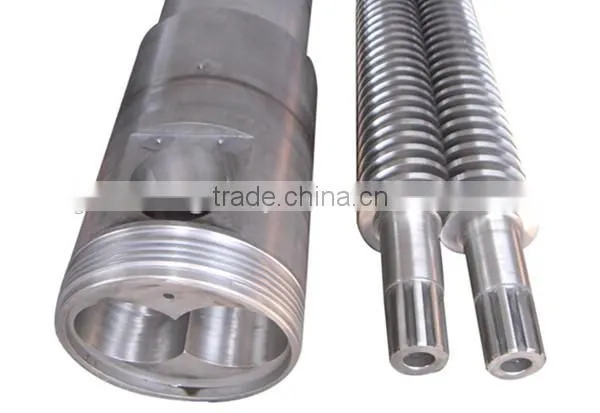

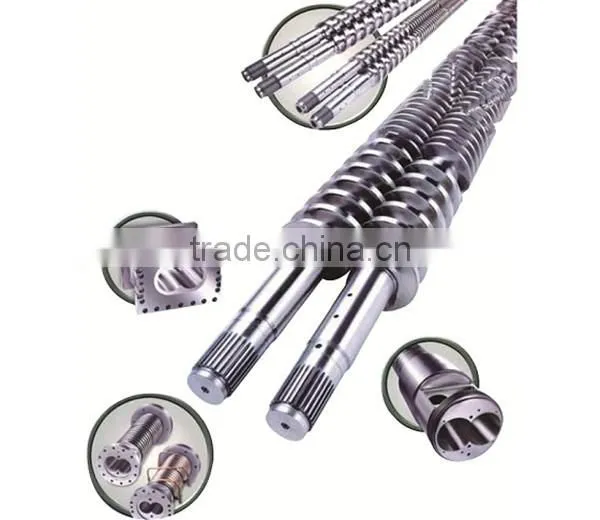

- Picture for Conical Twin Screw and Barrel
|
|
|
|
|
- Have a Brief
|
Jinsheng Bimetallic Plastic Machinery Factory was established in 2004. It was developed as a large-scale and comprehensive company specializing in manufacturing the kinds of Screws and Barrels in Zhoushan.such as bimetallic barrel & screw ,conical twin screws & barrels ,parallel twin screws & barrels,single screw &barrel , rubber screw & barrel ,planetary screw & barrel and components apply for injection molding machine and extruder machine .
For the material of screw and barrel we usually used: #45 steel,40Cr,38CRMOALA, 42CrMo,SKD11,SKD61 and high temperture ALLOY etc.
Jinsheng team aim at providing the best services to customers which include providing short lead time, best price and best after sales services. These allow us to create good relationship with customer. Moreover, our engineering department can design special screw and barrel design for some special plastic material such as HDPE, LDPE. This special design can provide high output with low energy consumption. With our great effort on product quality and services, we win a lot of support from different customers which from machinery and plastics field. we will make improvement continuously so as to win customer support from different countries.
Due to our high quality products and outstanding customer service, we have gained a global sales network reaching America, Germany, Brazil, Russia, Ukraine, India, Pakistan,Egpyt,Argentina and some other countries and regions.
To our old customer’s help and continuous support,we thank you.
|
- Jinsheng Advantage
|
1) Jinsheng have more than 1 year quarantee 2) Jinsheng have over 10 years history 3) Jinsheng have a strong work-hard team 4) Jinsheng is the first factory to make the bimetallic screw and barrel in zhoushan 5) Jinsheng will handle all difficult for products 6) Jinsheng will meet customer request 7) Jinsheng will be keeping improving |
- Jinsheng Attittude:
|
The Devil Is In The Details !
|
- Packing
1) Strong and solid export wooden case with foam inside
2) Plastic film case package
3) Suitable to transportation
4)As buyer request
- Shipping
Loading Port: Ningbo Port, Shanghai Port, Other China Port.
Means of Shipment: By Air, By sea ,By bus, By express
- Services
Jinsheng have more than one year guarantee, if there is any problem,you can contact with us at any time, we will reply you as soon as possible!
Contact person: Happy
Tel: 86-580-8043200
Fax:86-580-8043198
Mobile:86-136-4680-7744
- Also with other products from Jinsheng as follows
|

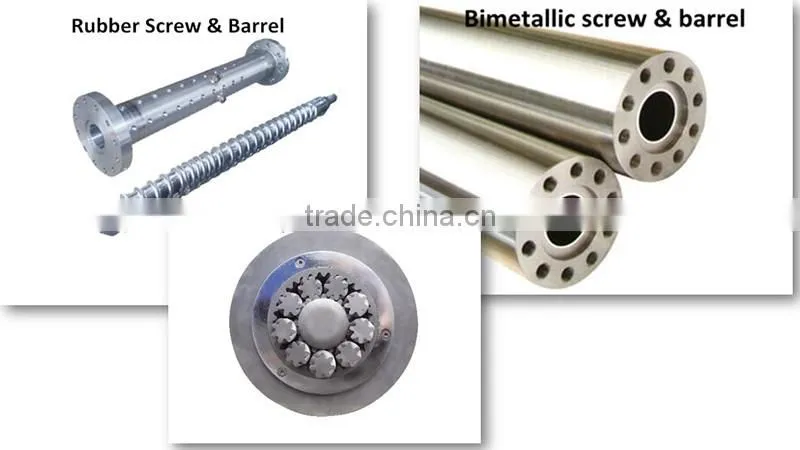

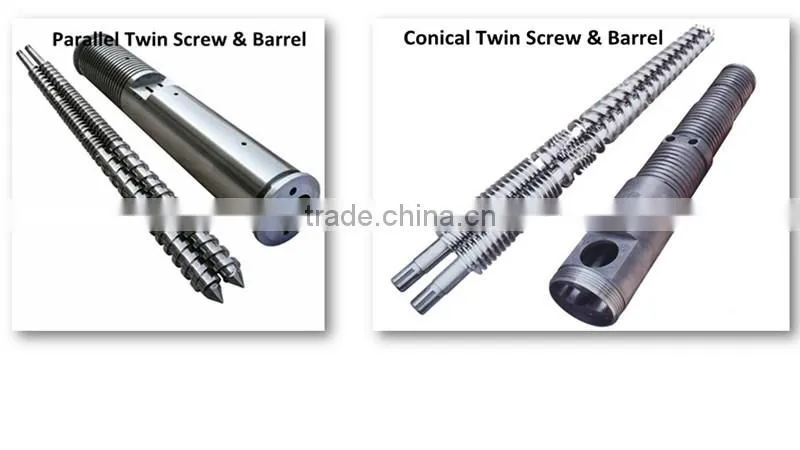

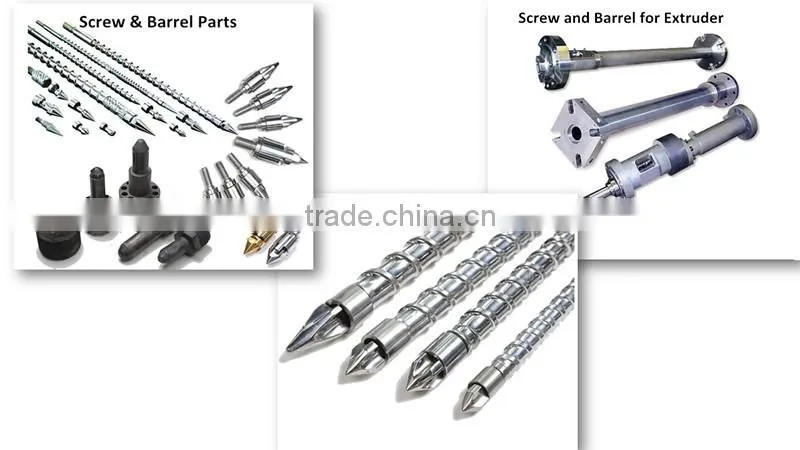

1) Bimetallic barrel & screw 2) Conical twin screws & barrels 3) Parallel twin screws & barrels 4) Single screw &barrel 5) Rubber screw & barrel 6) Planetary screw & barrel 7) Injection screw & barrel 8) Components
|
What is Jinsheng Flow to process the screw and barrel ?
| CustomerOrder--ProductDesign(CustomerDrawing)—ProductionFlowArrangement—Material Procurement—Hardening&Tempering—Drilling—RoughTurning—RoughThread Rolling(AlloySprayWelding)—Alignment—FineThreadRolling—Mixing—Alignment—High FrequencyTreatment—Alignment—Polishing—Grinding—120HoursNitridingTreatment—Acid Picking—Polishing—Chrome Plating—O.D.Grinding—Packaging&Shipping! |
