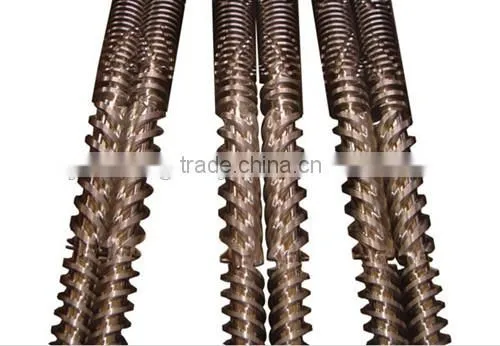

Help CenterConical Twin Screw Barrel for Injection Moulding Machine/ for PC / PA / PBT / PET Plastic Machine
Related Products
-
Parallel Twin Screw Barrel for Plastic Extruder/for Pipe Production LineUS$ 600 - 15,000MOQ: 1 Piece -
Parallel Counter Rotating Twin Screw and Barrel/double Screw and Barrel for Plastic MachineUS$ 1,000 - 3,000MOQ: 1 Set
-
Screw and Barrel for Conical Extruder Wpc PelletizingUS$ 600 - 15,000MOQ: 1 Piece
-
Twin Screw and Barrel With Chrome Plating for Plastic MachineUS$ 800 - 12,000MOQ: 1 Piece
-
CONICAL TWIN/PARALLEL TWIN SCREW BARREL FOR EXTRUDER MACHINEUS$ 600 - 15,000MOQ: 1 Piece
Specifications
Conical twin screw barrel1) Size: d35/D75-d92/D188mm
2) Best Quality and Competitive price
3) Payment: T/T 30% or others
Product Name: Conical twin screw barrel
Specifications
Conical twin screw and barrel size:
Φ35/76 | Φ45/90 | Φ50/105 | Φ51/105 |
Φ55/110 | Φ60/125 | Φ65/120 | Φ65/132 |
Φ70/140 | Φ75/150 | Φ80/143 | Φ80/156 |
Φ92/188 | Φ 95/ 191 | Φ 105/191 | Φ100/ 200 |
Conical twin screw featurs:
1:Conical twin screw cores water internal circulation series
2:Conical twin screw cores oil cold outer cycle
Our company have many twin screw barrel designs of world-famous brand: such as CINCINNATI,BATTENFELD,KRUSSMAFFEI,BAUSANO,WEBER,AMUT....
TECHNICAL DATA
Depth of nitration case:0.5-0.8mm
Hardness of nitration:HV950-1020
Roughness of the surface:Ra 0.4um
Screw straightness: 0.015mm/m
thickness of double alloys: 2-3mm
Hardness of double alloys:HRC58-62
Suitable plastic material: PP,PE,ABS,AS,PS etc.
Material: 38CrMoALA
| Characteristics | Alloy | Hardening | Based material |
| Abrasion resistance | Fe+Ni+Cr+B | 58-64 | 45/40Cr |
| Anti-corrosion | Ni+Cr+Co+B | 50-58 | 45/40Cr |
| Abrasion resistance and Anti-corrosion | Ni+Cr+Co+Fe+B | 56-64 | 45/40Cr |
| High Abrasion resistance and Anti-corrosion | Ni+Cr+Wc+Co+B | 58-67 | 45/40Cr |

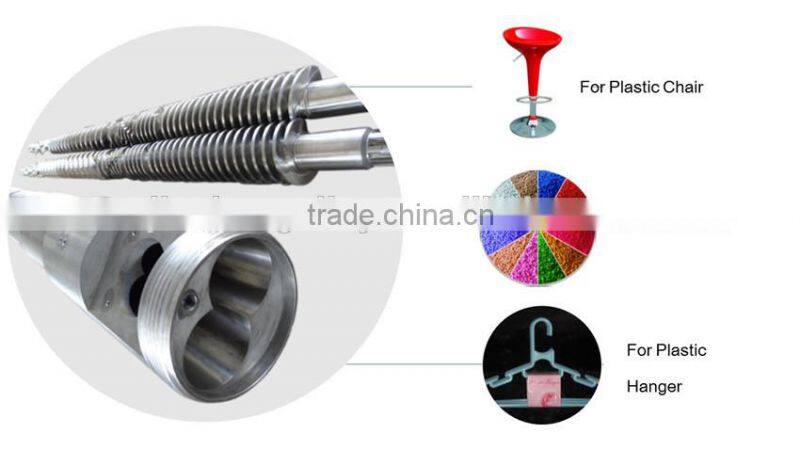

Products Application
|
|
|

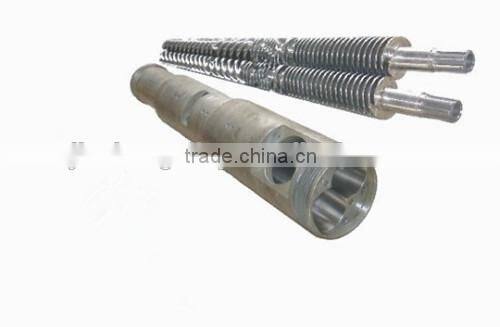

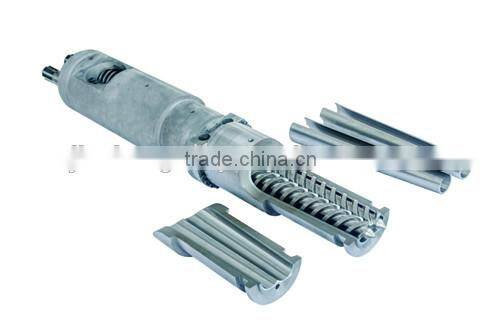

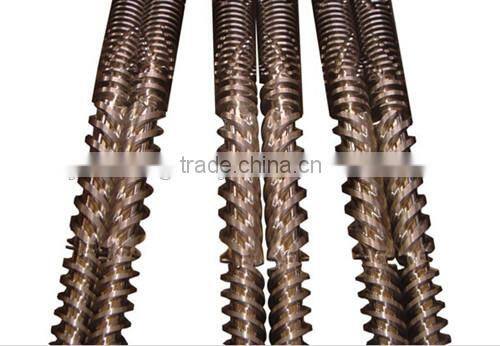

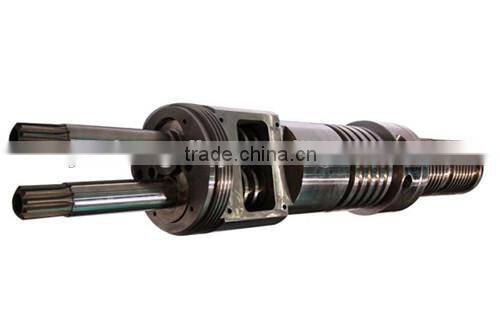

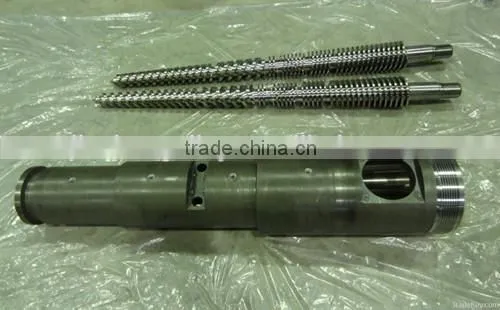

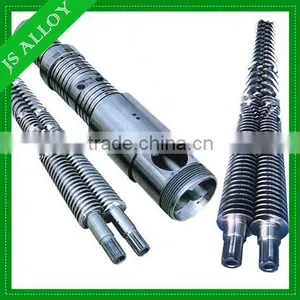

Conical Twin Screw and Barrel Products Show:
|
|
|
|
|
|

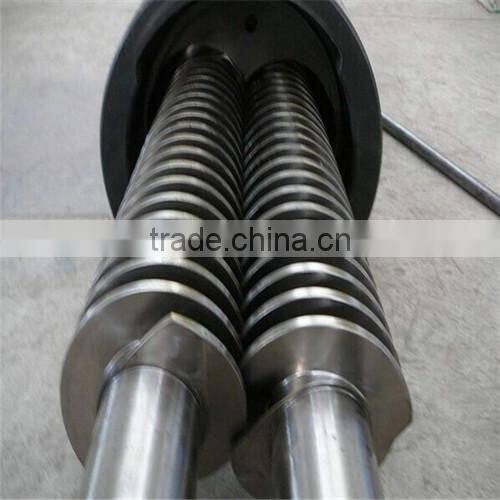

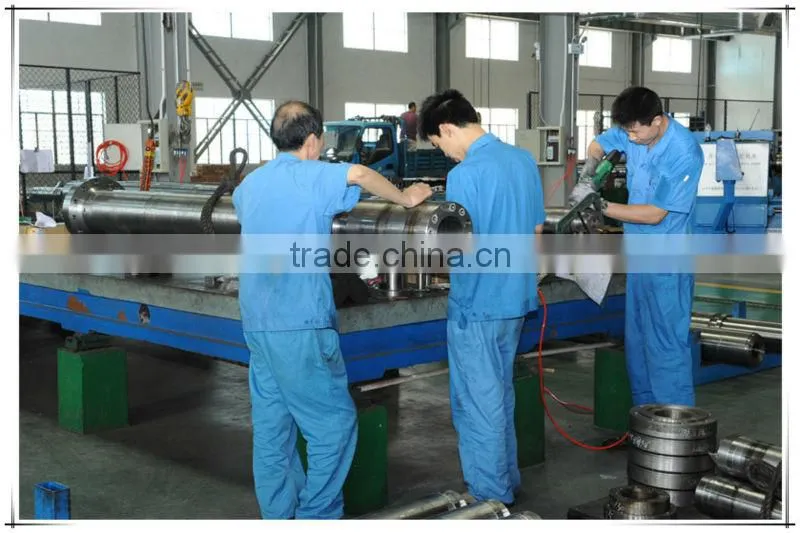

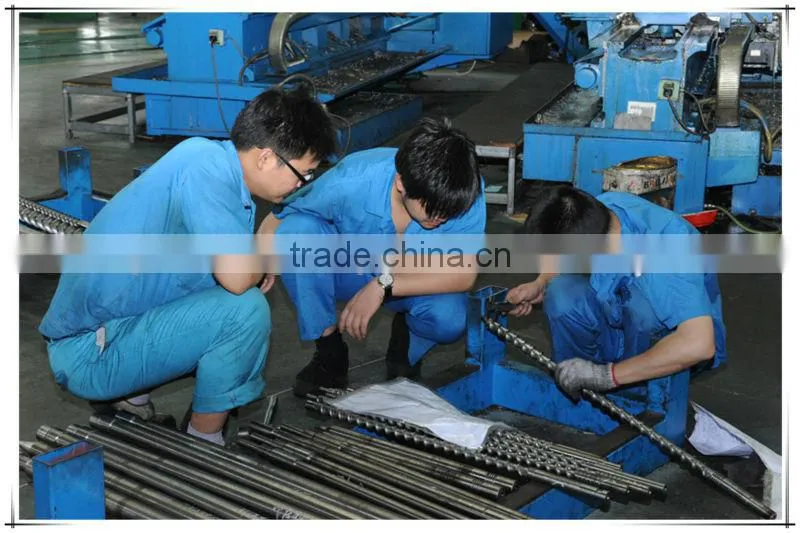

Products Inspect Show:

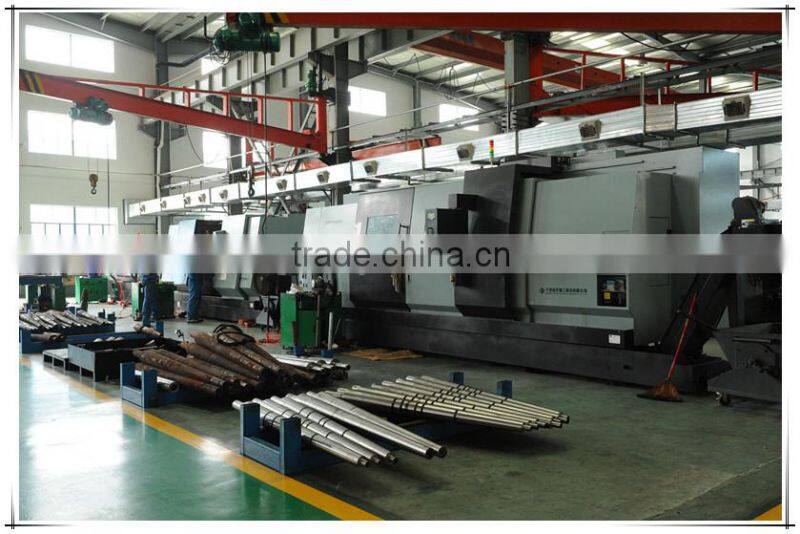

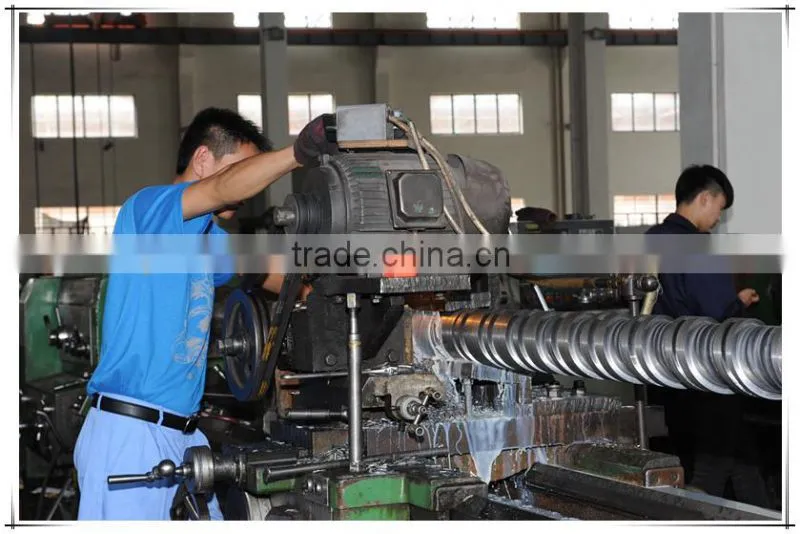

Workingshop Show:
PACKING AND SHIPPING
1) Woode case package
2) Plastic film pakage
3) As buyer request
4) Ship to Ningbo port or Shanghai Port
5) Deliver time: within 20 working days after confirmed with buyer
1) Jinsheng have more than 1 year quarantee
2) Jinsheng have over 10 years history
3) Jinsheng have a strong work-hard team
4) Jinsheng is the first factory to make the bimetallic screw and barrel
5) Jinsheng will handle all difficult for products
6) Jinsheng will meet customer request
7) Jinsheng will be keeping improving
Brief:
Jinsheng Bimetallic Plastic Machinery Factory is manufacturing Screws and Barrels Jinsheng have over 10 years history. Jinsheng have work-hard team. Jinsheng have a specialize technical group. |
Advantage:
1) With high wear resistance and anti-corrosion 2) Through processing ,it can be prolong use life for screw and barrel 3) Cold and heat spraying for hard metal process 4) High-frequency quenching technology 5) Advanced nitriding technology 6) Processing and manufacturing process for Bimetallic 7) Lowest price, high quality, delivery on time |
Where is your products export to ?
Now we export to :
America, Germany, Brazil, Russia, Ukraine, India, Pakistan,Egpyt,Argentina and some other countries and regions.
| Main Markets | Total Revenue (%) | Main Product(s) |
| Africa | 14.00% | Bimetallic /single screw and barrel, twin screw and barrel |
| Middle East | 11.00% | Bimetallic /single screw and barrel, twin screw and barrel |
| Southeast Asia | 10.00% | Bimetallic /single screw and barrel, twin screw and barrel |
| North America | 6.00% | Bimetallic /single screw and barrel, twin screw and barrel |
| South America | 5.00% | Bimetallic /single screw and barrel, twin screw and barrel |
| Eastern Europe | 4.00% | Bimetallic /single screw and barrel, twin screw and barrel |
| Domestic Market | 50.00% | Bimetallic /single screw and barrel, twin screw and barrel |
Contact information:
Jinsheng Bimetallic Plastic Machinery Factory | |
Add: | 6 Liuhang Road, Xihou Industry Zone, Jintang Town, Dinghai District,Zhoushan City,Zhejiang Province,316031 |
Tel: | 86-580-8043200 |
Fax: | 86-580-8043198 |
Email: | happy@js-screws |
jinshengbimetallic@hotmail | |
Website: | |
Alibaba: | www.jinshengalloy.en.china.cn |
