Specifications
Twin screw barrel1) Our company have strong team worker
2) Best Quality and Competitive price
3) Delivery within 20 days
Twin screw and barrel ( conical twin screw and barrel, parallel twin screw and barrel)
Specifications
1. Conical twin screw and barrel
Φ35/76 | Φ45/90 | Φ50/105 | Φ51/105 |
Φ55/110 | Φ60/125 | Φ65/120 | Φ65/132 |
Φ70/140 | Φ75/150 | Φ80/143 | Φ80/156 |
Φ92/188 | Φ 95/ 191 | Φ 105/191 | Φ100/ 200 |
Conical twin screw featurs:
1:Conical twin screw cores water internal circulation series
2:Conical twin screw cores oil cold outer cycle
2. Parallel Twin Screw and Barrel
Φ35/2 | Φ45/2 | Φ50/2 |
Φ65/2 | Φ80/2 | Φ90/2 |
Φ105/2 | Φ125/2 | Φ130/2 |
Φ150/2 | Φ180/2 | Φ200/2 |
Our company have many twin screw barrel designs of world-famous brand: such as CINCINNATI,BATTENFELD,KRUSSMAFFEI,BAUSANO,WEBER,AMUT....
TECHNICAL DATA
| Depth of nitration | 0.5-0.8mm |
| Hardness of nitration | 950-1020HV |
| Straight of screw | 0.015MM |
| Fragility of nitration | Less than grade 1 |
| Roughness of surface | Ra 0.4um |
| Depth of alloy layer | 2-3mm |
| Hardness of alloy | HRC58-62 |
| Hardness after hardening and tempering | HB260-290 |
| Hard chrome plating thickness | 0.03-0.08mm |
| Hardness of hard chrome plating | ≥950HV |
| Characteristics | Alloy | Hardening | Based material |
| Abrasion resistance | Fe+Ni+Cr+B | 58-64 | 45/40Cr |
| Anti-corrosion | Ni+Cr+Co+B | 50-58 | 45/40Cr |
| Abrasion resistance and Anti-corrosion | Ni+Cr+Co+Fe+B | 56-64 | 45/40Cr |
| High Abrasion resistance and Anti-corrosion | Ni+Cr+Wc+Co+B | 58-67 | 45/40Cr |
Products Application

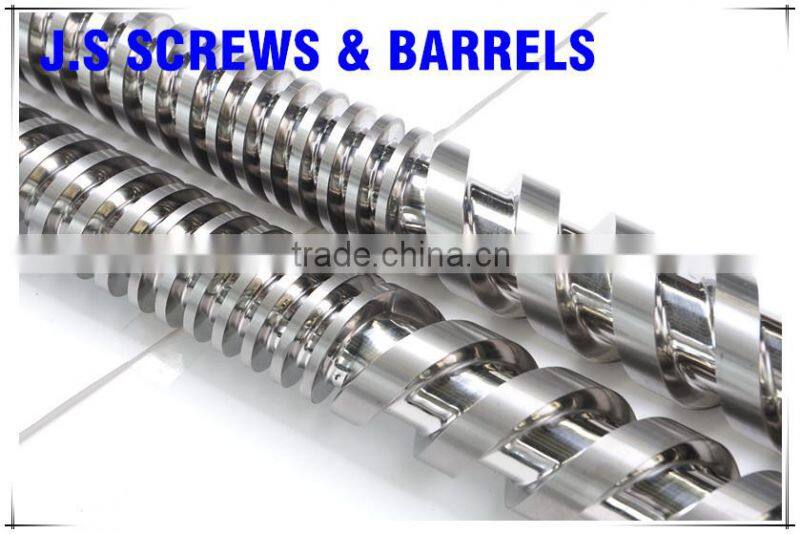

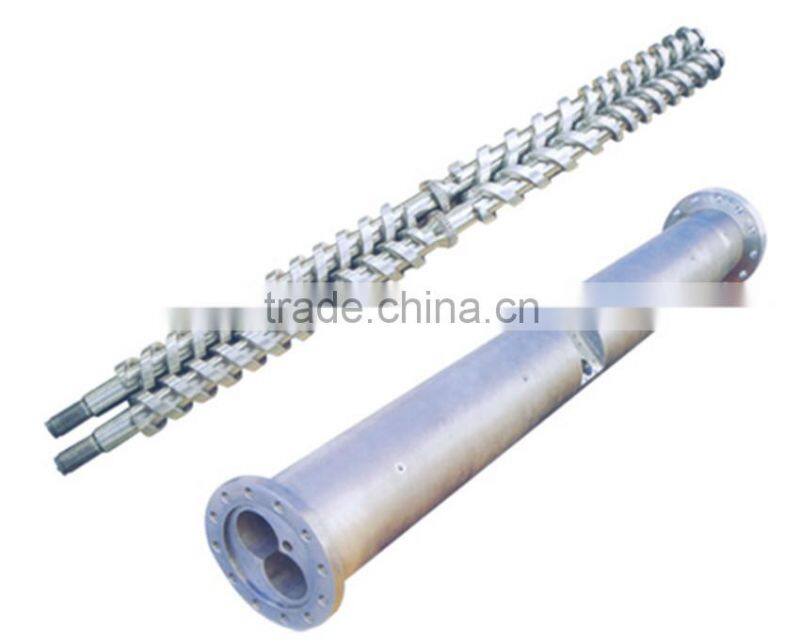

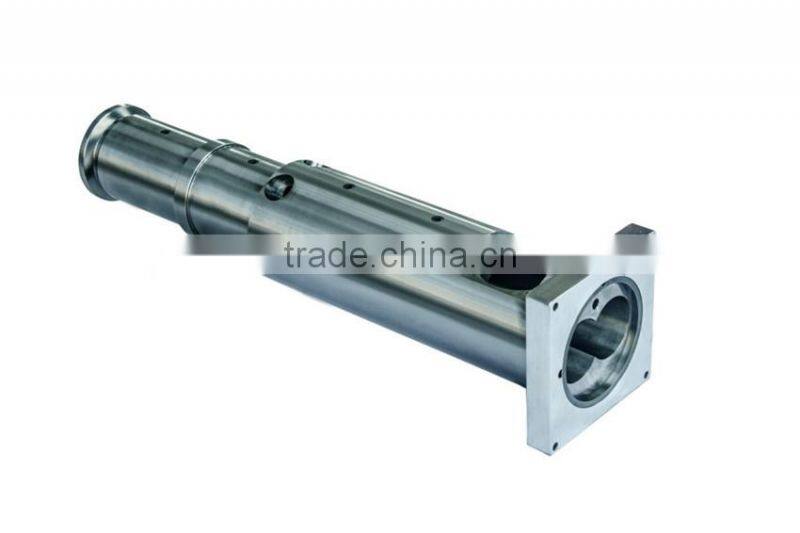

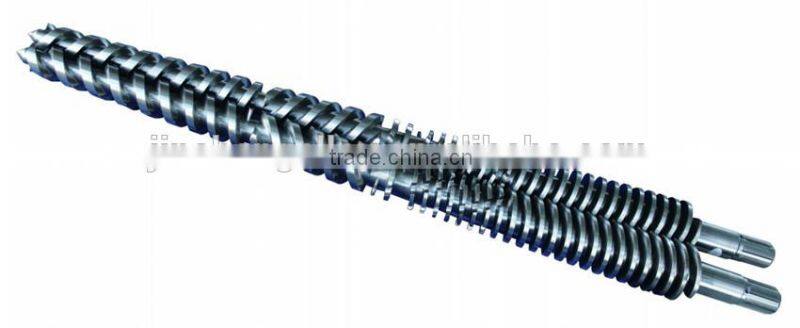

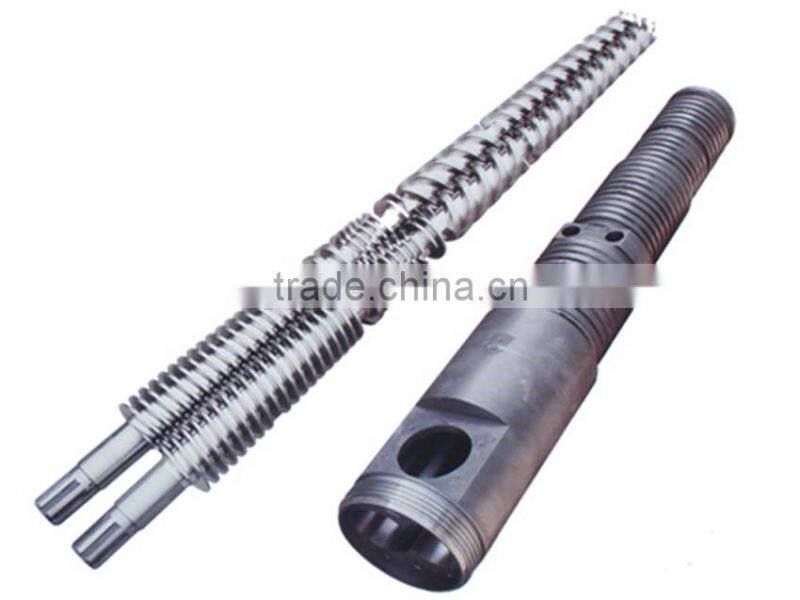

Twin Screw and Barrel Products Show:
Products Inspect Show:
Workingshop Show:
1) Woode case package
2) Plastic film pakage
3) As buyer request
4) Ship to Ningbo port or Shanghai Port
5) Deliver time: within 20 working days after confirmed with buyer
1) Jinsheng have more than 1 year quarantee
2) Jinsheng have over 10 years history
3) Jinsheng have a strong work-hard team
4) Jinsheng is the first factory to make the bimetallic screw and barrel
5) Jinsheng will handle all difficult for products
6) Jinsheng will meet customer request
7) Jinsheng will be keeping improving
Jinsheng Bimetallic Plastic Machinery Factory is manufacturing Screws and Barrels
Jinsheng have over 10 years history.
Jinsheng have work-hard team.
Jinsheng have a specialize technical group.
Jinsheng Bimetallic Plastic Machinery Factory was established in 2004. It was developed as a large-scale and comprehensive company specializing in manufacturing the kinds of Screws and Barrels in Zhoushan.such as bimetallic barrel & screw ,conical twin screws & barrels ,parallel twin screws & barrels,single screw &barrel , rubber screw & barrel ,planetary screw & barrel and components apply for injection molding machine and extruder machine .
Where is your products export to ?
Now we export to :
America, Germany, Brazil, Russia, Ukraine, India, Pakistan,Egpyt,Argentina and some other countries and regions.
| Main Markets | Total Revenue (%) | Main Product(s) |
| Africa | 14.00% | Bimetallic /single screw and barrel, twin screw and barrel |
| Middle East | 11.00% | Bimetallic /single screw and barrel, twin screw and barrel |
| Southeast Asia | 10.00% | Bimetallic /single screw and barrel, twin screw and barrel |
| North America | 6.00% | Bimetallic /single screw and barrel, twin screw and barrel |
| South America | 5.00% | Bimetallic /single screw and barrel, twin screw and barrel |
| Eastern Europe | 4.00% | Bimetallic /single screw and barrel, twin screw and barrel |
| Domestic Market | 50.00% | Bimetallic /single screw and barrel, twin screw and barrel |
