Help CenterAlloy Steel Hard Single Screw and Barrel for Injection Molding Machine
Related Products
-
Special Stainless Steel Material Screw Barrel for Injection Molding MachineUS$ 600 - 2,800MOQ: 1 Piece -
Injection Screw and Barrel/ Injection Screw Spare PartsUS$ 1,000 - 16,000MOQ: 1 Piece
-
Single Screw and Barrel for Haitian Injection Moulding Machine/engel Injection Moulding MachineUS$ 500 - 10,000MOQ: 1 Set
-
Injection Screw Barrel NISSEI Injection Screw From ZhoushanUS$ 520 - 6,800MOQ: 1 Piece
-
High Quality /best Quality Screw and Barrel for Injection MachineUS$ 1,000 - 6,800MOQ: 1 Piece
Specifications
Nitrided Screw Barrel for Injection Molding Machine1) MATERIAL: 38CRMOALA
2) Heat-treatment: Nitriding
3) 1 year guarantee
Topic : Alloy steel hard single screw and barrel for injection molding machine
Injection screw and barrel specification
Single screw and barrel details size
| Amount of Injection (g) | Screw OD X Length (mm) | Barrel OD X Length (mm) |
| 30-90 | φ30X 900 | φ85X860 |
| 60-125 | φ35X910 | φ85X860 |
| 100-150 | φ38X935 | φ95X900 |
| 125-160 | φ40X980 | φ95X910 |
| 125-300 | φ42X1030 | φ105X880 |
| 250-400 | φ45X1210 | φ115X1165 |
| 300-500 | φ50X1300 | φ125X1260 |
| 450-600 | φ55X1335 | φ130X1320 |
| 500-700 | φ56X1350 | φ130X1350 |
| 500-700 | φ60X1380 | φ140X1350 |
| 650-800 | φ65X1415 | φ150X1420 |
| 700-1000 | φ70X1790 | φ160X1685 |
| 800-1250 | φ75X1825 | φ170X1725 |
| 1000-1500 | φ80X2000 | φ180X1805 |
| 1250-2000 | φ85X2300 | φ190X1900 |
| 2000-3000 | φ90X2700 | φ210X2000 |
| 2500-5000 | φ100X2600 | φ230X2405 |
| 3000-6000 | φ110X2600 | φ256X2590 |
| 400-10000 | φ120X2800 | φ256X2800 |
| 6000-8000 | φ130X3010 | φ256X2970 |
| 8000-10000 | φ145X3010 | φ256X2970 |
| 10000-15000 | φ160X3500 | φ270X3200 |
| 13000-25000 | φ170X3415 | φ317X3380 |
Technical Parameters
| Depth of nitration | 0.5-0.8mm |
| Hardness of nitration | 950-1020HV |
| Straight of screw | 0.015MM |
| Fragility of nitration | Less than grade 1 |
| Roughness of surface | Ra 0.4um |
| Depth of alloy layer | 2-3mm |
| Hardness of alloy | HRC58-62 |
| Hardness after hardening and tempering | HB260-290 |
| Hard chrome plating thickness | 0.03-0.08mm |
| Hardness of hard chrome plating | ≥950HV |
Products Application
|
WPC PVC ,WPC PE ,Super high molecular sheet ,1/2 high calcium buckle, 50-400 high Calcium pipe ,50-300 high Calcium Profile , Soft PVC sheet , XPS-PVC ,PP ,PE, ABS, PVC, Raw material , pelletzing ,Pipe, Profile, Sheet etc
|
Machinery Application
|
Jinsheng screw and barrel apply for below machine:
1) FOR INJECTION MOULDING MACHINE 2) FOR EXTRUDER 3) FOR RUBBER MACHINE 4) FOR BLOWING MACHINE 5) FOR FILM BLOWING MACHINE 6) FOR DRAWING MACHINE 7) FOR PELLETIZER/GRANULATOR MACHINE 8) FOR PLASTIC MACHINE 9) FOR RECYCLE MACHINE
|

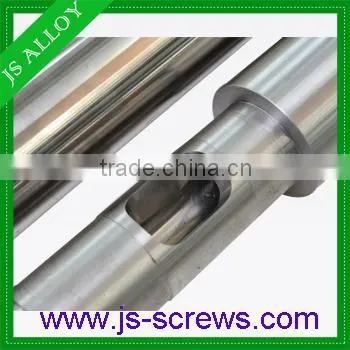

Picture for Nitrided screw and barrel
|
|
Jinsheng History
|
1) Jinsheng Bimetallic Plastic Machnery Factory was established in 2004.
2) It was developed as a large-scale and comprehensive company specializing in manufacturing the kinds of Screws and Barrels in Zhoushan.
3) Include bimetallic barrel & screw ,conical twin screws & barrels ,parallel twin screws & barrels,single screw &barrel , rubber screw & barrel ,planetary screw & barrel and components
4) Apply for injection molding machine and extruder machine .
5) Sales to America, Germany, Brazil, Russia, Ukraine, India,Pakistan,Egpyt,Argentina and some other countries and regions
6) Based Material: #45 steel,40Cr,38CRMOALA, 42CrMo,SKD11,SKD61 and high temperture ALLOY etc.
|

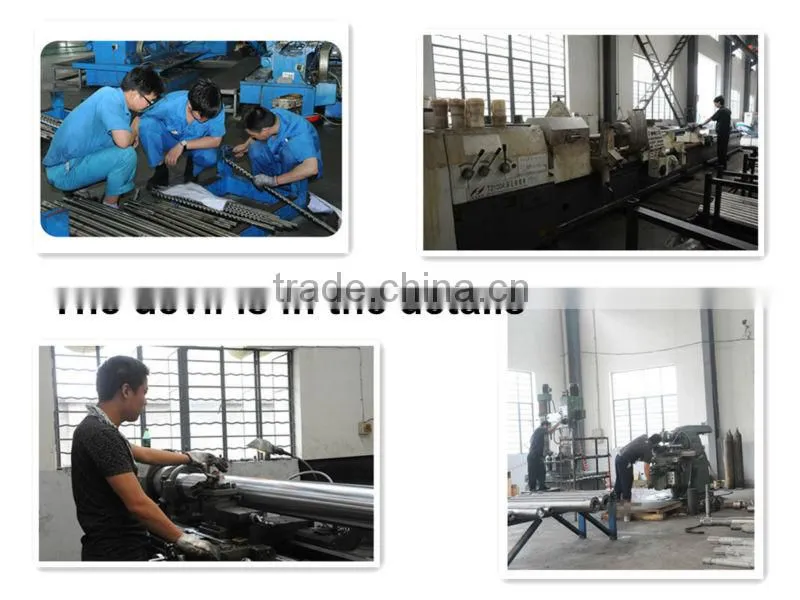

Jinsheng Working Shop
|
FLOWS:
Blanking--Rough Machining--Quenching & Tempering--Semi Finishing Machining--Finish Machining--Nitriding or Bimetallic Processed--Detecting--Finished Product--Packing & Shipping
|
|
Overview
|
1) strong and solid export wooden case with foam inside
2) plastic film case package
3) suitable to transportation
4) as buyer request
|
|
Services: 1) Jinsheng with more than 1 year guarantee for screw and barrel! 2) For each product will be inspected before shipment! 3) Jinsheng can design the drawing according to cusotmer request! |
|
Advantages: 1)High productivity 2)Wonderful plasticizing 3) low energy consumption 4)Wearable and Durable 5)Fast and On time delivery 6)Best customer service |
Why Jinsheng ?
|
1) All products with high quality, have more than 1 guarantee, although we are not big factory
2) All price will be competitive price
3) We can design the screw and barrel as customer request
4) We will attend the exhibition in different country and visit our old customer to feedback information
|
Any question please contact with me :
Happy
Jinsheng Bimetallic Plastic Machinery Factory
Tel: 86-580-8043200
Fax: 86-580-8043198
Mobile:86-136-4680-7744
E-mail: happy@js-screw com
Skype/MSN: jinshengbimetallic@hotmail com
Alibaba: www.jinshengalloy.en.china.cn
Website:
