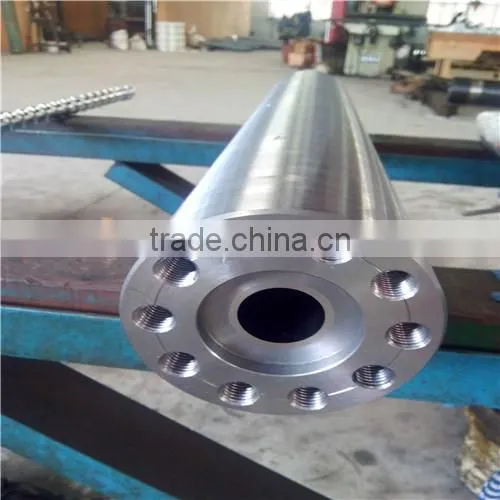

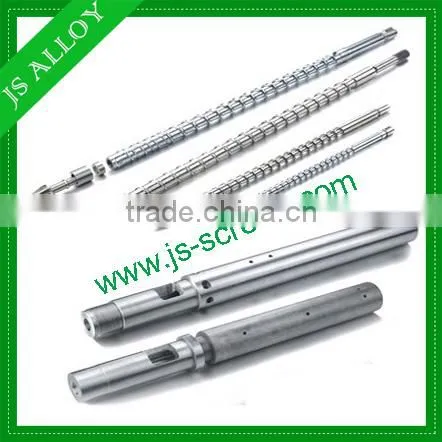

Single Screw and Barrel for Haitian Injection Moulding Machine/engel Injection Moulding Machine

Name: Single Screw and Barrel for Haitian Injection Moulding Machine/engel Injection Moulding Machine
Brand: JS-ALLOY
SKU: 129158217

US$ 500 - 10,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

JS-ALLOY

Model Number:

JS-Single screw and barrel for haitian injection moulding machine

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name JS-ALLOY

Model Number JS-Single screw and barrel for haitian injection moulding machine

Specifications

1.screw and barrel has long use life
2.screw and barrel has good plasticizing effect
3.high output,good price,good service

	Steel material Steel material	38GrMoAlA(screw) 42GrMo(barrel)
	Hardness after hardening &tempering	HB:280-320
	Hardness &Tempering time	72 hours
	Nitrided hardness	HV:850-1000
	Nitrided time	120hours
	Depth of nitriding case	0.50-0.80mm
	Nitrided Brittleness	less than grade 2
	Surface Roughness	Ra:0.4
	surface hardness of chromium- plating after Nitriding	>HV900
	Depth of chromium -plating	0.025-0.10mm
	screw straightness	0.015

Prosessing program for single screw and barrel

Custome Order--Product Design(Customer Drawing)—Production

Flow Arrangement—Material Procurement—Hardening&Tempering

—Drilling—RoughTurning—RoughThread Rolling (AlloySprayWelding)—Alignment—FineThread Rolling—Mixing—Alignment—HighFrequency

Treatment—Alignment—Polishing—Grinding—120 Hours NitridingTreatment

—Acid Piclking—Polishing—Chrome Plating—O.D.Grinding—Packaging&Shipping

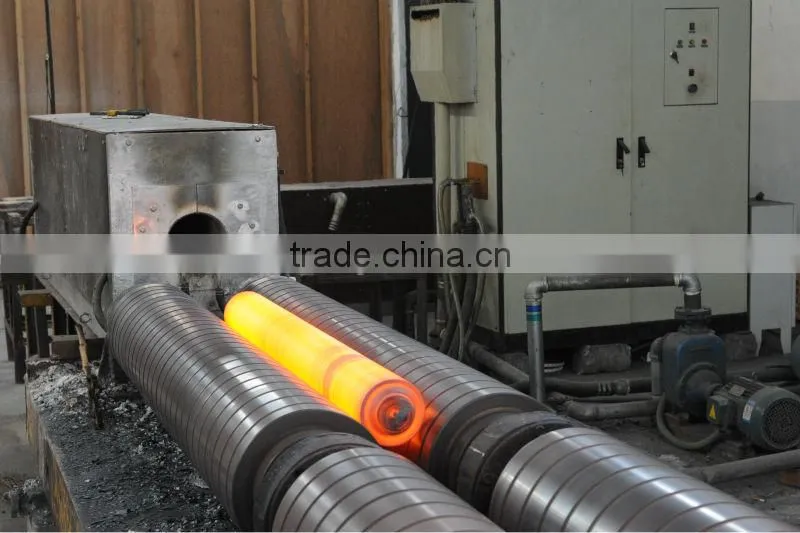

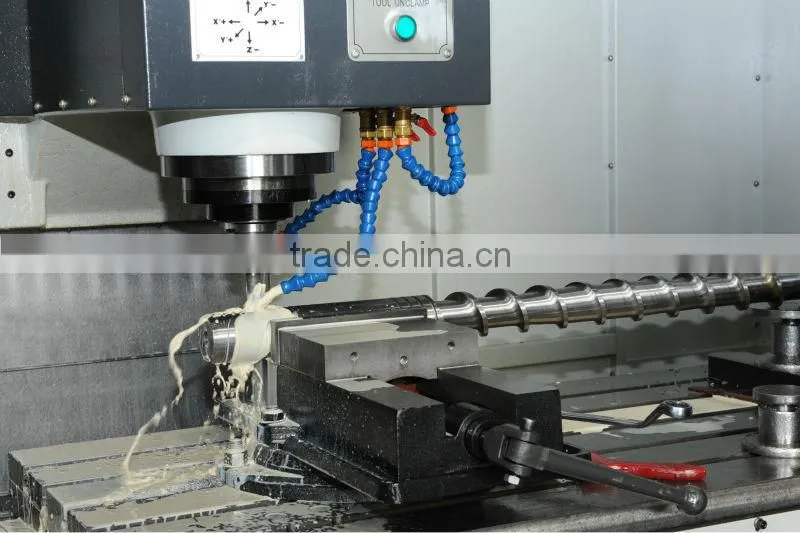

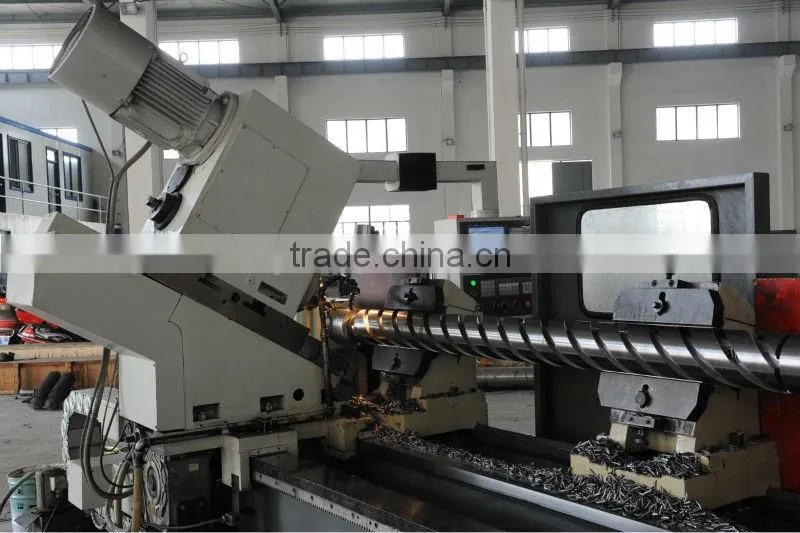

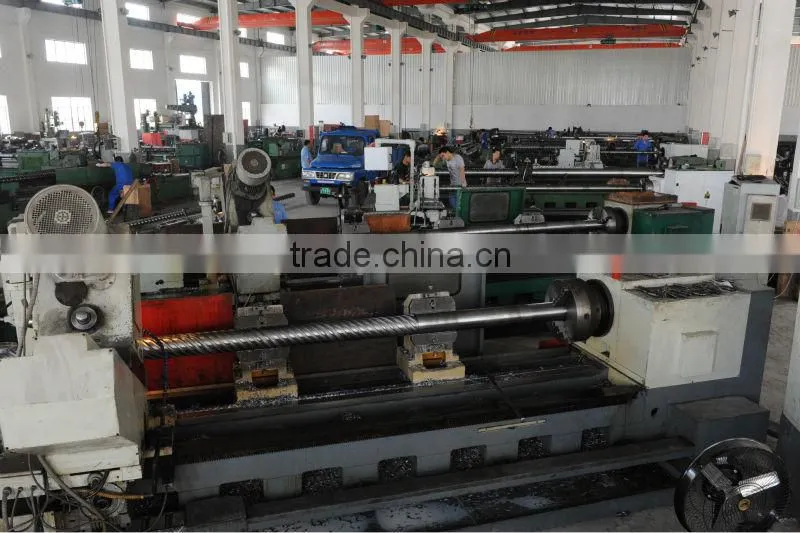

workshop and equipments

parallel twin screw application for plastic

Polycarbonate	PC
Polyoxymethylene(Polyformaldehyde)	POM
Cellulose Nitrate	CN
Cellulose Acetate	CA
Ethyl Cellulose	EC
Poly(Ethylene Terephthalare)	PET
Poly(Butylene Terephthalare)	PBT
Poly(Vinyl Chloride)	PVC

Acrylonitrile Butadiene Styrene	ABS
Polypropylene	PP
Low Density Polyethylene	LDPE
High Density Polyethylene	HDPE
Polyamide-6	PA6
Polyamide-66	PA66

Packaging & Shipping

Port	NingBo/Shanghai
Packing	screw barrel are wrapped in a layer of plasticfilm then will be fixed in a strong wooden case
Volume	0.5m³-5m³ one set
Delivery	30 working days after the deposit
