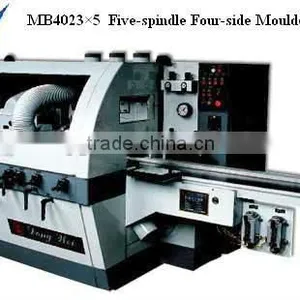

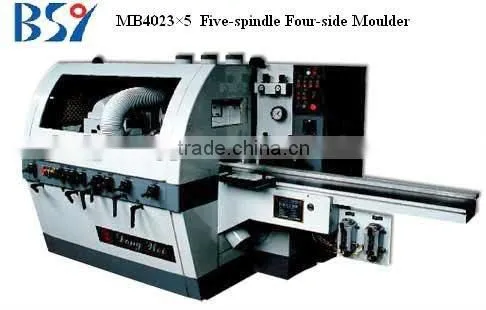

MB4023x5 Five-spindle Four-side Moulder

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Four Side Moulder

Place of Origin:

Shandong, China

Shandong BSY Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Four Side Moulder

Place of Origin Shandong, China

Brand Name BSY

Model Number MB4023x5

Specifications

1.Width of working piece(mm) 25-230
2.Thickness of working piece(mm) 8-120

MODEL	MB4023×5
Width of working piece(mm)	25-230
Thickness of working piece(mm)	8-120
Feed speed (Stepless speed changing)(m/min)	6-24
Feed plate length (mm)	1767
The first lower horizontal planer tool axle
Speed(rpm)	6000
Diameter of tool axle (mm)	Φ40
Turning diameter of tool axle (mm)	Φ108-145
Max.length of installing blade (mm)	240
Axial adjusting range of tool axle (mm)	20
Motor power kw(HP)	5.5(7.5)
Right-and-left vertical milling tool spindle
Speed(rpm)	6000(7500)
Diameter of tool axle (mm)	Φ40
Max.turning diameter of tool (mm)	Φ125-180
Max.length of installing blade (mm)	130
Axle adjusting range of tool axle (mm)	30
Motor power kw(HP)	7.5(10)
Uppper and lower horizontal tool axle
Speed(rpm)	6000
Diameter of tool axle (mm)	Φ40
Turning diameter of tool for maxhining shaped form pieces (mm)	Φ108-145
Turning diameter of tool for maxhining plane pieces (mm)	Φ108-160
Turning diameter of the second lower horizontal tool axle (mm)	Φ108-180
Max.length of installing blade(mm)	240
Axle adjusting range(mm)	30
Motor power of upper tool axle kw (HP)	7.5(10)
Motor power of lower tool axle kw(HP)	5.5(7.5)
Feeding pinch wheel (mm)	Φ140
Feed motor power (kw)	3
Feeding girder lift motor power kw (HP)	0.55(0.75)
Outer diameter of chip discharge pipe (mm)	Φ150
Total capacity of installed motor (kw)	29.55
Air pressures (MPa)	0.3-0.6
Overall dimensions (mm)	3545×1700×1600
Weight(kg)	2800
