Boring Machine for panel style furnitures

Specifications

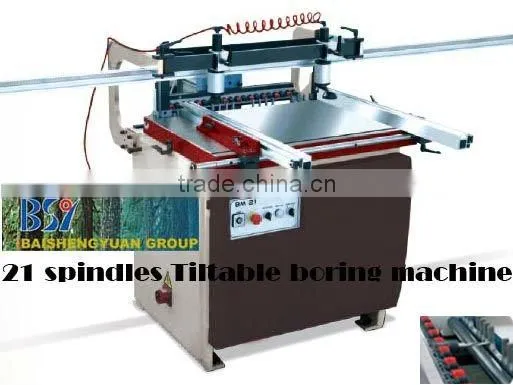

Boring row with 21 heads drilling bits,the row could rotation freely.

Panel board boring machine BM21,special for MDF,HDF and other panel boards drilling,

widely used for cabinet and other panel style furniture production.

--Drilling bit row could rotation,

--Number of drilling spindles 21

--Distance between two spindles 32 mm

--Maximum boring depth 50 mm

--Spindle rotation speed 2850 rpm

--Motor power 2hp

--Dimension 1000*969*1200 mm

--Net weight 350 kg.



Long rail rule  as optional device.
