I. Description:

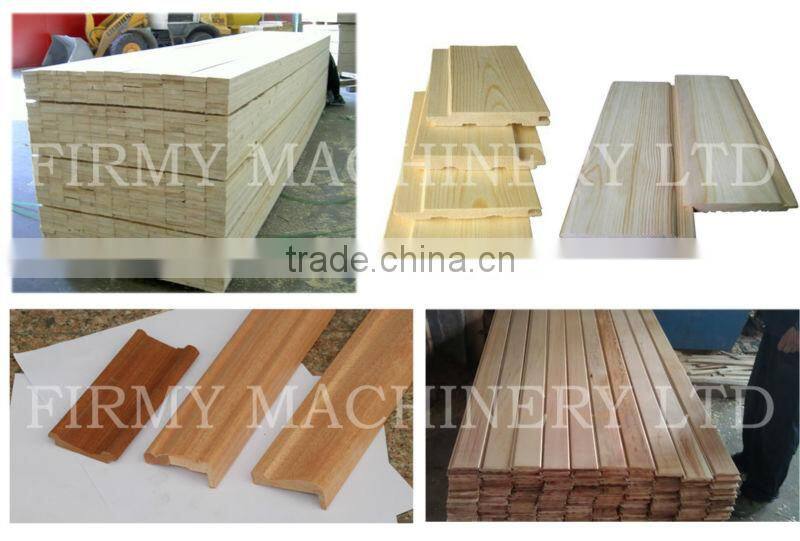

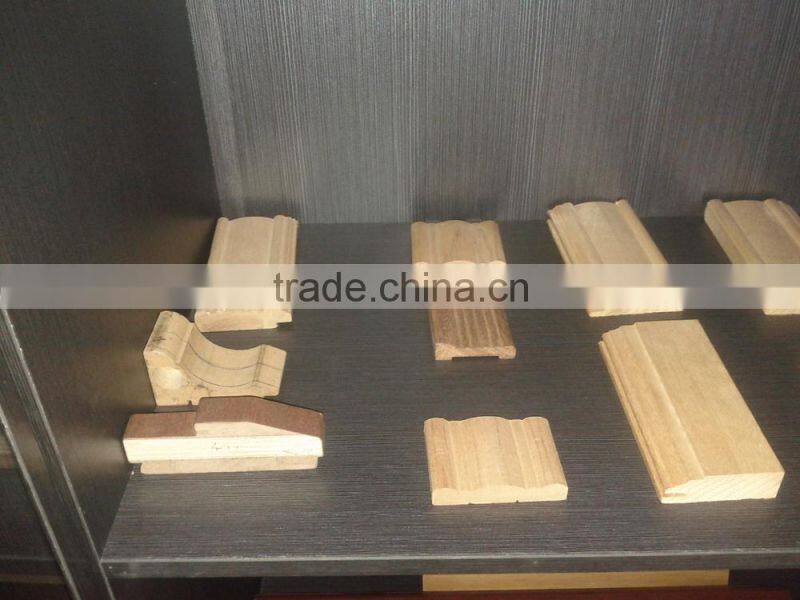

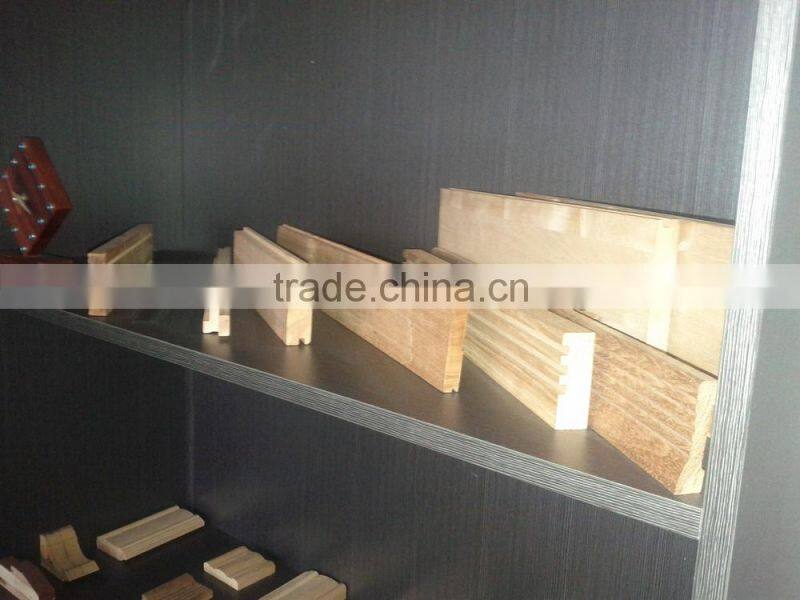

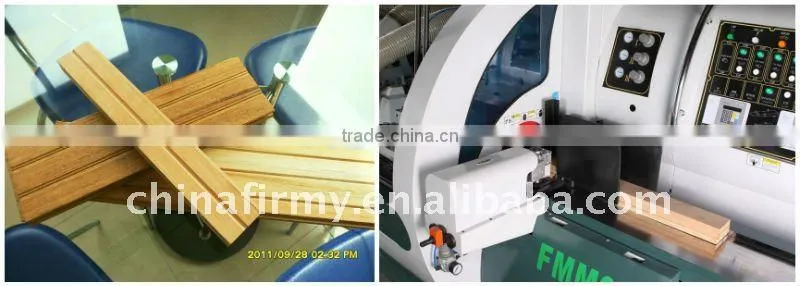

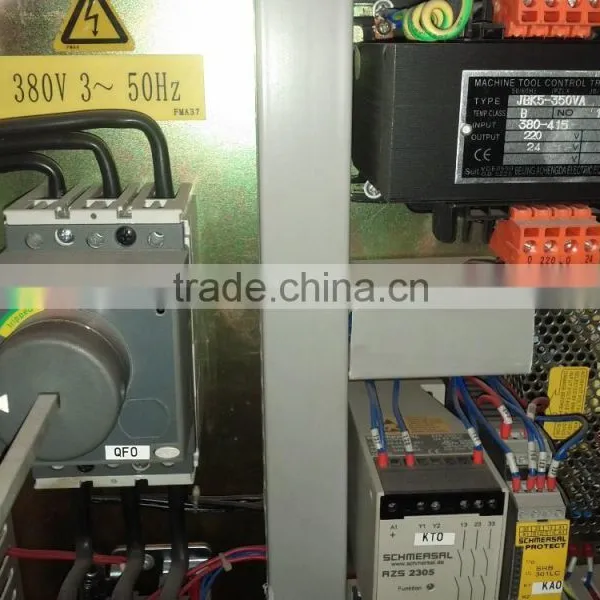

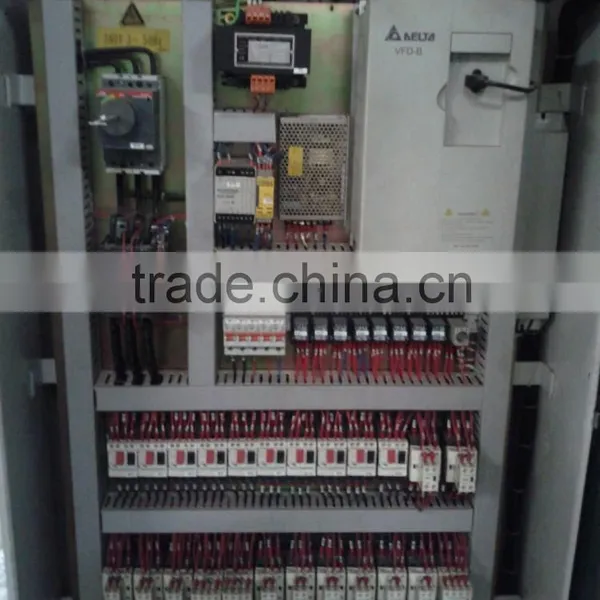

It is suitable to process flooring, profile, window, cabinet etc products. The bases of model FMM520 are precessed by big CNC machine to assure the high precision. The width of working table is 250mm and working thickness is 120mm. The wider machine base is good to keep good stability and working precision. All the electric components are adopted international brands to assure stable and excellence performance.
II. Specification:

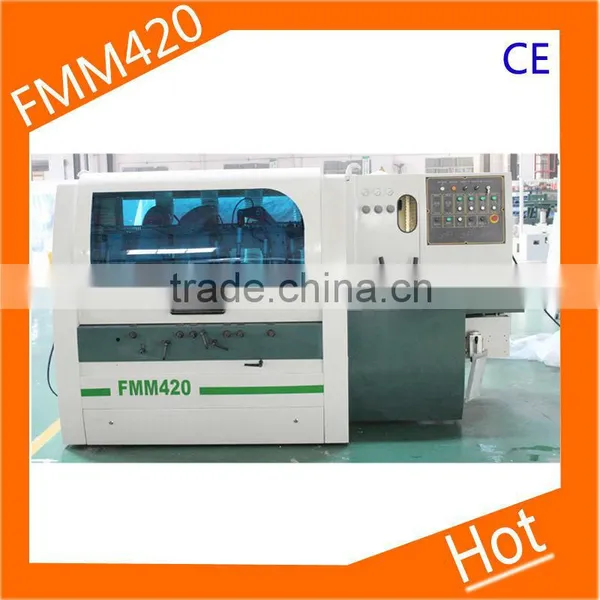

Specification | Model | |
FMM420 | ||
Working size | Working Width | 20-200mm |

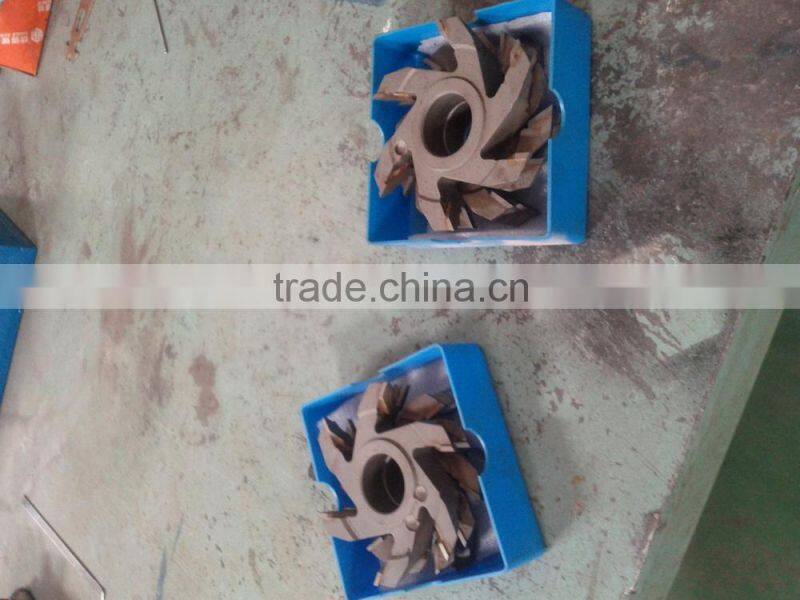

Tools size | ID. of Tools | Φ40 |
OD. Of 1# Bottom Spindle | Φ110-Φ145 | |
OD. Of other Spindle | Φ110-Φ180 | |
Moter Power
| 1 # Bottom Spindle | 5.5kw |
L & R Spindle | 4kw | |
1 # Top Spindle | 5.5kw | |
2 # Top Spindle | -------- | |
2 # Bottom Spindle | -------- | |
Universal Spindle | --------- | |
Feeding motor power | 3KW | |
Total Motor power | 22.75kw | |
Feeding speed | 6-24m/min | |
Dust outlet diameter | Φ130X4 | |
Length of working table | 1545 | |
weight | 3.0T | |
Size (L*W*H) | 3400X1720X1750 | |
III. Advantage:

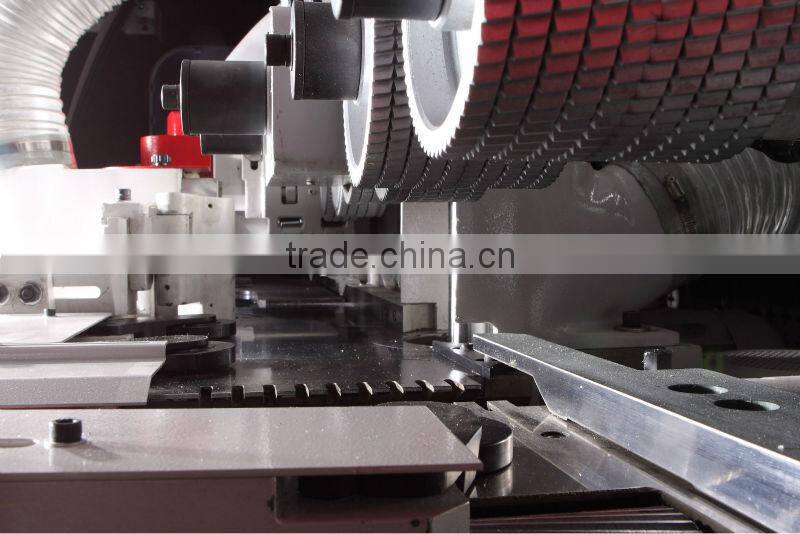

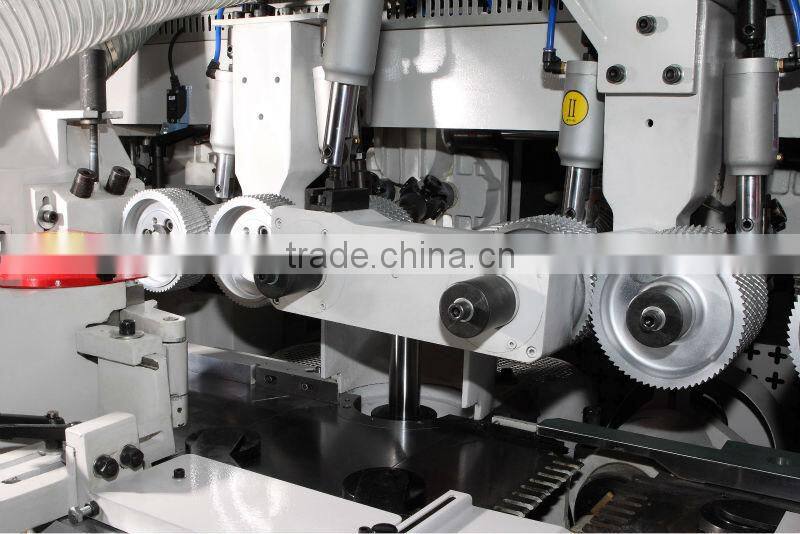

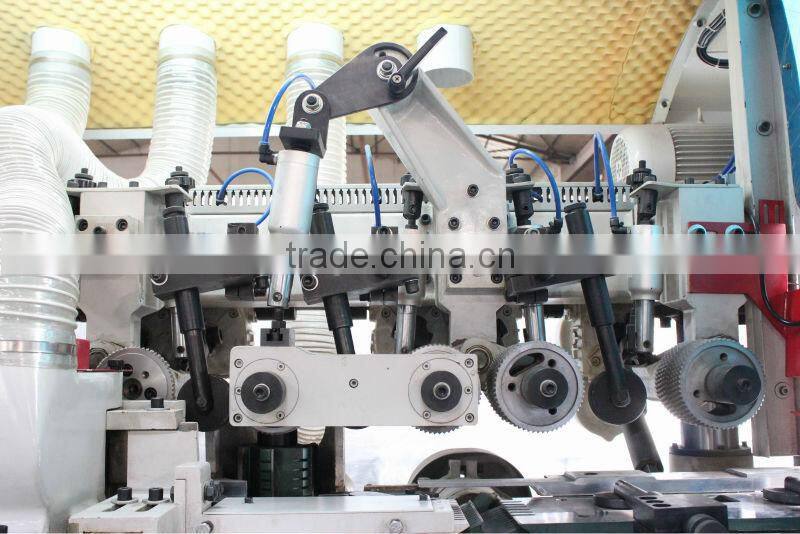

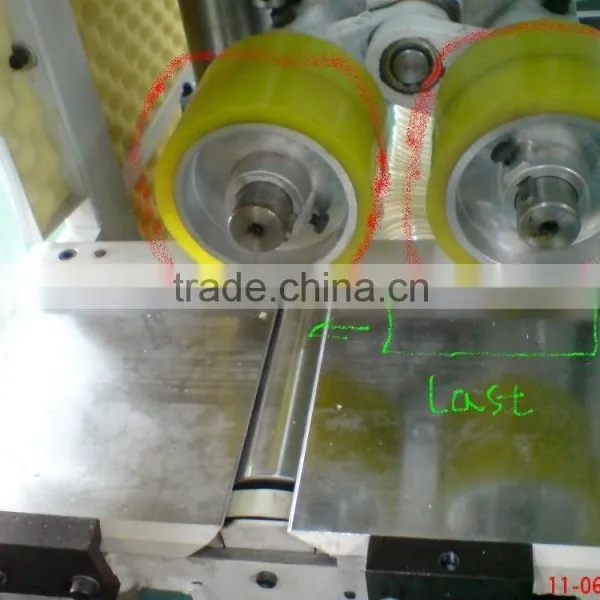

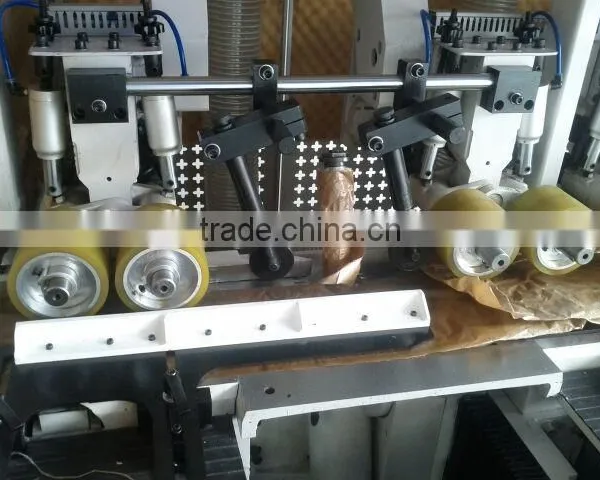

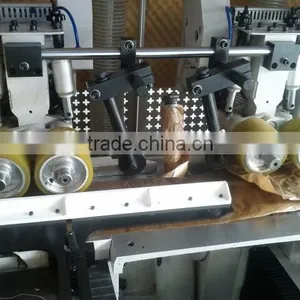

1. Groups of bottom rollers to assure feeding smoothly. The first bottom feeding rollers is moved up-down with the working table.

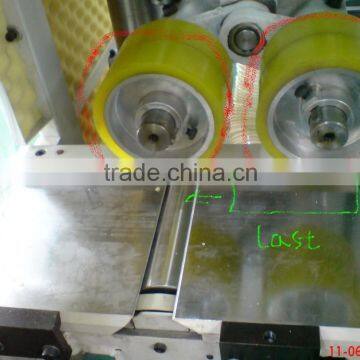

2. Adopted upturning short pieces device.
3. High speed spindle is made by alloy steel and assembled SKF bearings inside.
4. Centralized lubrication system. Slide parts and working table are lubricated by two manual oil pumps separately.
IV. Options:
1. Y-delta start for each spindle
2. Inverter for feeding, speed is 6-30m/min
3. Short piece device for 150mm length processing
4. Electric oil pump to lubricate
5. CE norm
FIRMY MACHINERY CO.,LTD is a Sino-foreign joint venture with 20 years of experience in precision machining.Since it was established,FIRMY MACHINERY CO.,LTD has engaged in developing , manufacturing and marketing injection moulding machines, glass machines and made a great achievement in his development.
In 2007, FIRMY MACHINERY strongly stepped in the industry of China's Top -grade woodworking machinery. With its abundant technical strength, FIRMY has developed and manufactured four -side moulders,double-end tenoners,flooring production line, wood door production line and other woodworking machines and achieved its goal to keep abreast of the technology development of Germany and Italy in developing new products, owing to its introduction of high-tech and self-innovation. In the wake of continuously improving product quality, expanding market market share and glowing comprehensive strength, in recent years, FIRMY's products are in abundant supply in domestic market and developing actively in the international market, while many distributors from Europe, America and South Asia apply for become agents of FIRMY's products, which enjoy high reputation in both domestic and international markets, owing to their economy, dynamic,reliability and durability.
