Double end tenoner woodworking machine
FMD8830
I. Description
For wooden double end tenoner, it is suitable to process the cutting and grooving in flooring, doors, furniture etc fields. The machine base is processed in large CNC machine. Two high precision linear orbits are assembled to assure the stable movement as well. To keep good performance, machine is widened by servo motor system.
All the electric components are adopted international brands to assure stable and excellence performance. We also use digital controlled system and servo motor for feeding to prevent the shock when starting and stopping the convey belt. This precision location can satisfy to install sided drilling device.
II. Specification:
1. Working length(mm): 250-3000
2. Working thickness(mm): 6-80
3. OD for tools(mm)
Scoring saw: dia 160
Cut-off saw: dia 300
1st milling cutter: dia 125-180
2nd milling cutter: dia 125-180
4. ID for tools(mm)
Scoring saw: dia 25.4
Cut-off saw: dia 35
1st milling cutter: dia 40
2nd milling cutter: dia 40
5. Motor power(kw)
Scoring saw: 2.2
Cut-off saw: 4
1st milling cutter: 4
2nd milling cutter: 5.5
Total motor power: 35
6. Speed
Feeding speed: 5-30(m/min)
Milling cutter speed: 7500r/min
Cut-off saw speed: 3000r/min
7. Weight: 6T
8. Size(L*W*H)(mm): 5000*3300*1950
III. Advantage
1. Machine base is over 1300mm width with high precision linear orbits and with steel dusty proof to protect the orbits.

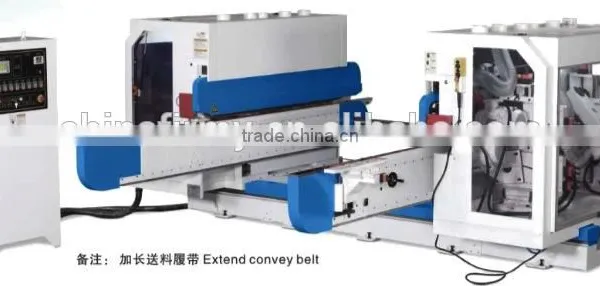

2. High precision lightweight convey belt is assembled with bearings. High feeding speed and less noise, it is suitable for high speed precessing.
3. With the special location locked system and the little fence against the work pieces just with the surface, it will not leave pressed mark in the work pieces.
Options:
2.Y-Δ start for each spindle
3.Feeding speed is 6-30m/min
4.Electrical oil pump to lubricate
5.CE norm
we'd like to send you video of this machine,feel free to contact us.
