Door making machine / furniture making amchine / double end tenoner
- SHUNDE PORT
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Double Side Planer | |
| Place of Origin | Guangdong, China | Brand Name | FIRMY | |
| Model Number | FMD8825 | Voltage | 380V/415V/230V | |
| Dimension(L*W*H) | 4500X3300X1800 (MM) | Weight | 5.6T | |
| Certification | CE CERTIFICATION | Warranty | 1 YEAR | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

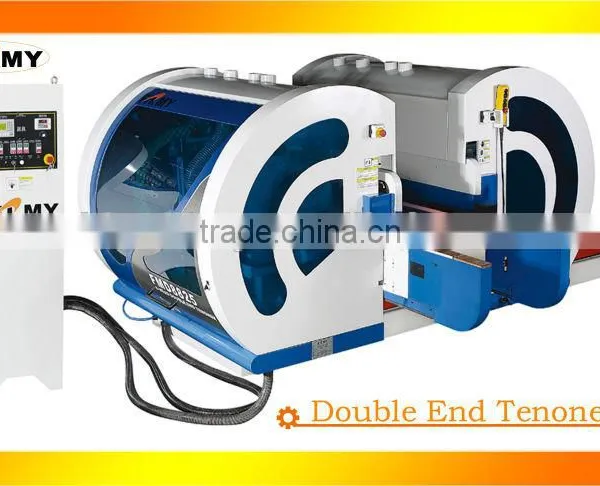

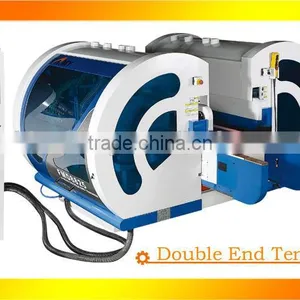

Double end tenoner
| Specification & type | FMD8825 | |
| Working Size | Working Length | 250-2500 |
| Working Thickness | 6-8 | |
| OD for Tools | Scoring saw | φ200 |
| Cut-off saw | φ305 | |
| 1st Milling Cutter | φ125- φ180 | |
| 2nd Milling Cutter | φ125- φ180 | |
| ID for tools | Scoring saw | φ25.4 |
| Cut-off saw | φ30 | |
| 1st & 2nd Milling cutter | φ40 | |
| Motor Power | Scoring saw | 2.2kw |
| Cut-off saw | 4/5.5kw | |
| 1st Milling Cutter | 4kw | |
| 2nd Milling Cutter | 5.5kw | |
| Feed speed | --- | 5-25m/min |
| Milling Cutter Speed | 8000r/min | |
| Saw speed | 3000r/min | |
| Total motor power | 35/38kw | |
| Dust outlet diameter | 120mm x 8pcs 60mm x 2pcs | |
| Weight | 5.6T | |
| Size (L x W x H) mm | ||
Electric machine equipment:
Operating voltage 380 Voltage, 50 Cycles
Machine base, tables and fences:
Machine base is 1.3m width and processed by CNC;
500mm effective feeding table ( The distance from the cover to the pivot of convey wheel);
With the special location locked system and the little fence against the work pieces just with the surface, so it will not leave pressed mark in the work pieces;

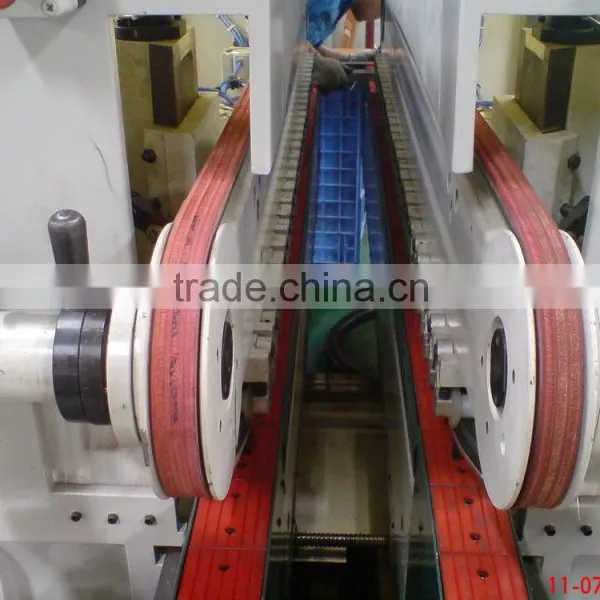

High precision lightweight convey belt is assembled with bearings. High feeding speed and less noise, it is suitable for high speed processing.;
Manual oil pump to remove resin from machine table.
Machine operation(PLC system):
Central position of lubrication points at the side of the machine.
Pressure belt and the widen is adjusted by PLC system.The working thickness and width can be adjusted automatically.
Safety and noise protection:
Easily liftable safety hood with window covers the entire work area and protects against mechanical hazards. The safety hood can only be opened during testing of the machine.

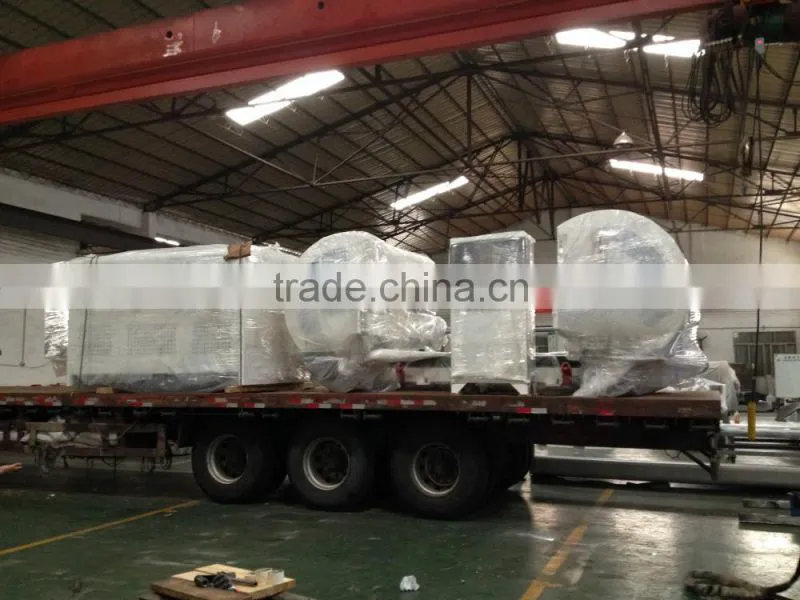

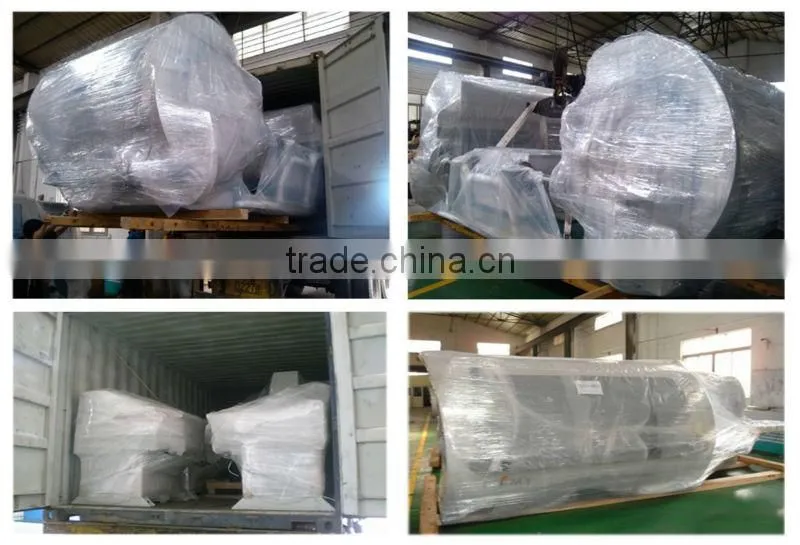

Transport steel tubes:
Machine can unloading with two fork-lift trucks or crane.
