Technical data:
Working width: 3000* mm
Working height: 6~80* mm

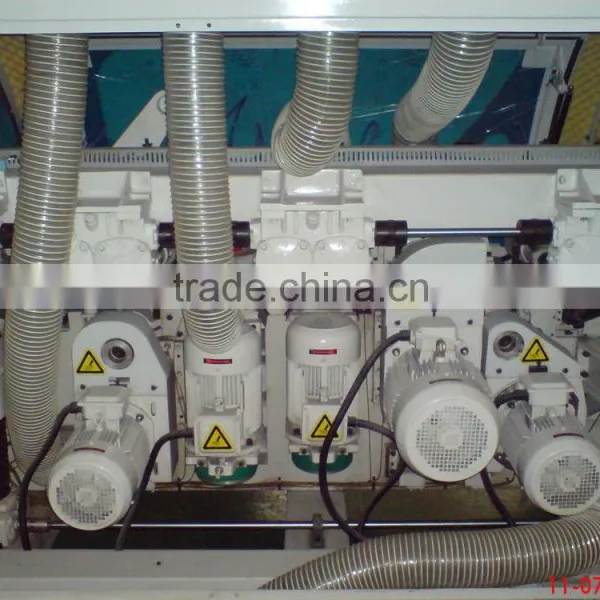

Scoring saw
Motor power: 2.2kW
Diameter: 25.4 mm
Speed: 3000 rpm
OD Of Tools Ø 200mm
Setting range axial adjustable
Jumping device optional
Cut off saw
Motor power: 4kW
Diameter: 30 mm
Speed: 3000 rpm
OD Of Tools Ø 305mm
Setting range axial adjustable
1# Milling cutter
Motor power: 4kW
Diameter: 40 mm
Speed: 8000 rpm
OD Of Tools Ø 125~ Ø 180mm
Setting range axial adjustable
Jumping device Available
2# Milling cutter
Motor power: 5.5kW
Diameter: 40 mm
Speed: 8000 rpm
OD Of Tools Ø 125~ Ø 180mm
Setting range axial adjustable
Feed system:
Feeding by inverter 5~30m/min
Motor for feed system 3kW
Electric machine equipment:
Operating voltage 380 Voltage, 50 Cycles

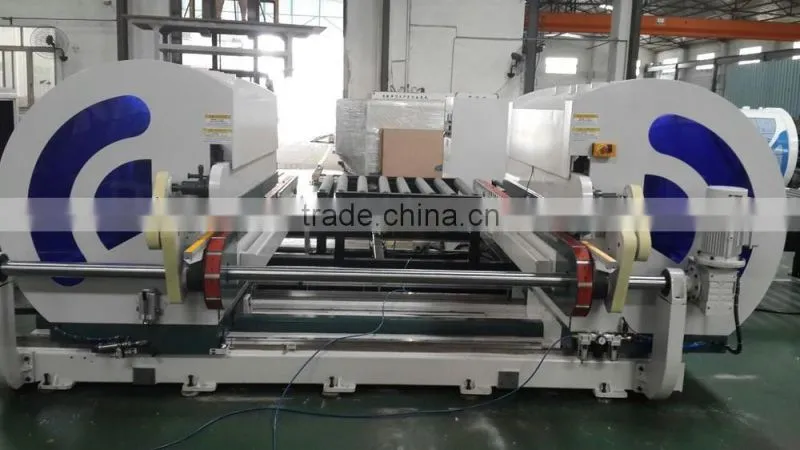

Machine base, tables and fences:
Machine base is 1.3m width and processed by CNC;
500mm effective feeding table ( The distance from the cover to the pivot of convey wheel);
With the special location locked system and the little fence against the work pieces just with the surface, so it will not leave pressed mark in the work pieces;
High precision lightweight convey belt is assembled with bearings. High feeding speed and less noise, it is suitable for high speed processing.;
Manual oil pump to remove resin from machine table.
Machine operation(PLC system):
Central position of lubrication points at the side of the machine.
Pressure belt and the widen is adjusted by PLC system.The working thickness and width can be adjusted automatically.
Safety and noise protection:
Easily liftable safety hood with window covers the entire work area and protects against mechanical hazards. The safety hood can only be opened during testing of the machine.

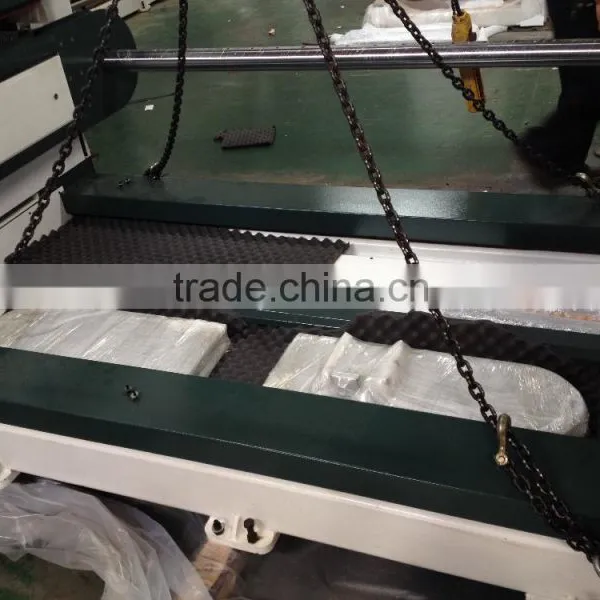

Transport steel tubes:
Machine can unloading with two fork-lift trucks or crane.
Measurements and weights:
The machine will be delivered in one package
Length / width / height =
4880*3300*1800mm(FMD8830)
Weight: 6000kgs

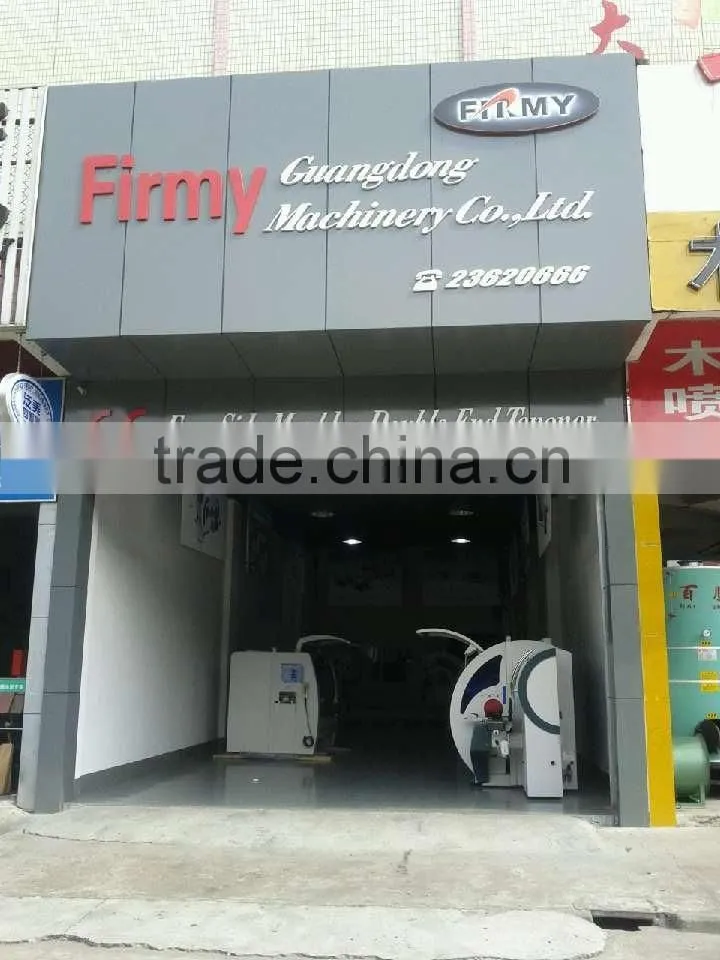

FIRMY MACHINERY CO.,LTD is a Sino-foreign joint venture with 20 years of experience in precision machining.Since it was established,FIRMY MACHINERY CO.,LTD has engaged in developing , manufacturing and marketing injection moulding machines, glass machines and made a great achievement in his development.
In 2007, FIRMY MACHINERY strongly stepped in the industry of China's Top -grade woodworking machinery. With its abundant technical strength, FIRMY has developed and manufactured four -side moulders,double-end tenoners,flooring production line, wood door production line and other woodworking machines and achieved its goal to keep abreast of the technology development of Germany and Italy in developing new products, owing to its introduction of high-tech and self-innovation. In the wake of continuously improving product quality, expanding market market share and glowing comprehensive strength, in recent years, FIRMY's products are in abundant supply in domestic market and developing actively in the international market, while many distributors from Europe, America and South Asia apply for become agents of FIRMY's products, which enjoy high reputation in both domestic and international markets, owing to their economy, dynamic,reliability and durability.
