US$ 10 - 500
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Material:
Carbon Steel
Technics:
Casting
Type:
Flange
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Flange Ball Valve Stainless Steel Ball ValveUS$ 10 - 500MOQ: 10 Pieces -
Stainless Steel Butterfly ValveUS$ 1 - 1,000MOQ: 1 Piece
-
Butterfly Valve Drawing 6 Inch Butterfly ValveUS$ 50 - 700MOQ: 1 Piece
-
Butterfly Valve for Cement Flange ConnectionUS$ 20 - 20MOQ: 1 Piece
-
Type A Manual-Operated Wafer Butterfly ValveUS$ 50 - 50MOQ: 1 Piece
Material
Carbon Steel
Technics
Casting
Type
Flange
Place of Origin
Fujian, China
Model Number
Cast steel ball valve
Brand Name
Minshan
Connection
Other, Flange, Flange end
Shape
Equal
Head Code
Square
Banner
Product Description

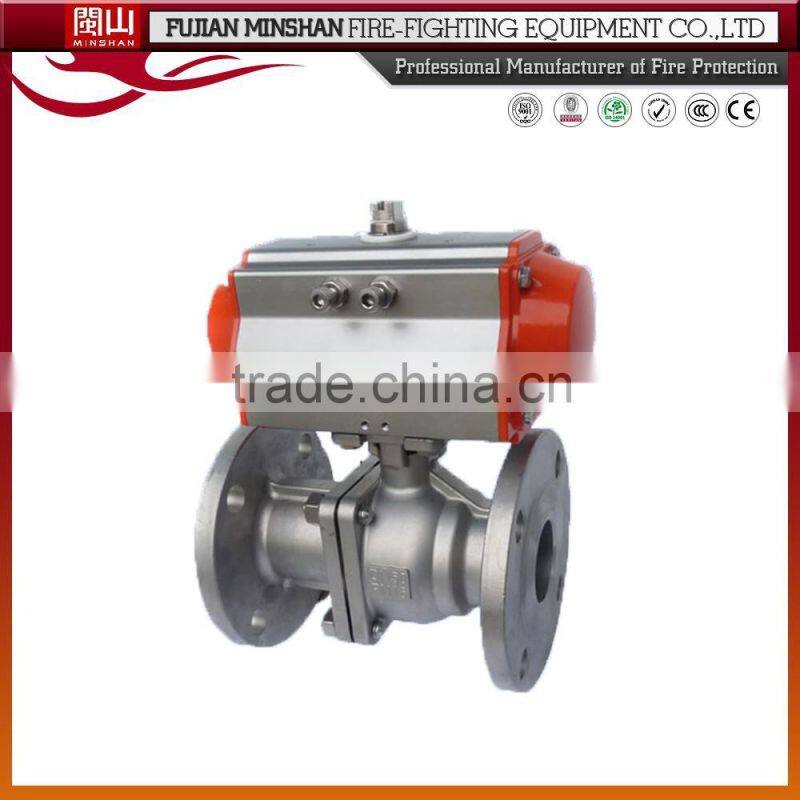

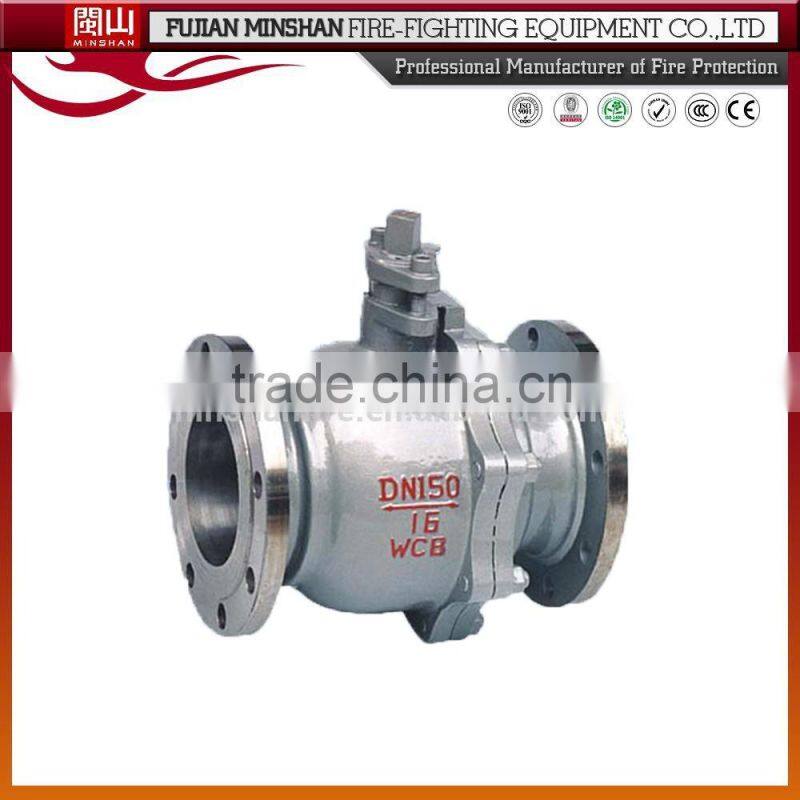

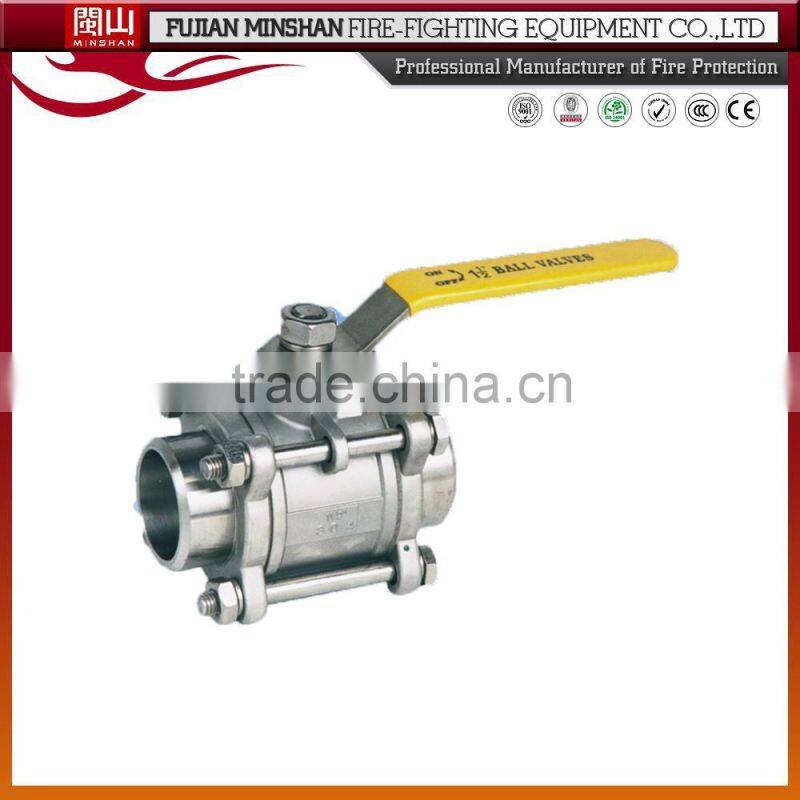

Ball valve picture cast iron ball valve with ISO, CCC Certificates
| Model | Nominal Pressure | Testing | Temperature(°C) | Medium | ||
| Strength(Water)Mpa | Seat(Water.oil)(Mpa) | Low pressure seat(Water,oil)Mpa | ||||
| Q41F-16P(R) | 1.6 | 2.4 | 1.8 | 0.6 | ≤200 | Nitric Acid |
| Q41F-25P(R) | 2.5 | 3.8 | 2.8 | 0.6 | ≤200 | Nitric Acid |
| Q41F-40P(R) | 4 | 6 | 4.4 | 0.6 | ≤200 | Nitric Acid |
Material List:
| Parts | Material | |
| Q41F-16-25-40C | Q41F-16-25P-40R | |
| Body | Carbon stee | Stainless steel,Cr.Ni.Mo.Tisteel |
| Ball | ||
| Stem | ||
| Seat | PTFE | |
| Handle | Gray Cast Iron,Foged cast iron | |
Main Dimension:
| Model | DN | Size (mm) | |||||||
| L | D | D1 | D2 | H | b-f | Z-Φd | Do | ||
| Q41F-16P(R) | 15 | 130 | 95 | 65 | 45 | 60 | 2~14 | 4`14 | 108 |
| 20 | 140 | 105 | 75 | 55 | 64 | 2~14 | 4`14 | 120 | |
| 25 | 150 | 115 | 85 | 65 | 90 | 2`16 | 4`15 | 165 | |
| 32 | 165 | 135 | 100 | 78 | 105 | 2`16 | 4`16 | 180 | |
| 40 | 180 | 145 | 110 | 85 | 150 | 3`16 | 4`17 | 240 | |
| 50 | 200 | 160 | 125 | 100 | 190 | 3`16 | 4`18 | 240 | |
| 65 | 220 | 180 | 145 | 120 | 195 | 3`18 | 4`19 | 320 | |
| 80 | 250 | 195 | 160 | 135 | 215 | 3`20 | 4`20 | 350 | |
| 100 | 280 | 215 | 180 | 155 | 250 | 3`21 | 4`21 | 400 | |
| 125 | 320 | 245 | 210 | 185 | 280 | 3`22 | 4`22 | 500 | |
| 150 | 360 | 280 | 240 | 210 | 320 | 3`23 | 4`23 | 600 | |
| 200 | 400 | 335 | 295 | 265 | 370 | 3`24 | 4`24 | 800 | |
| Q41F-25P(R) | 40 | 180 | 145 | 110 | 85 | 160 | 3`25 | 4`25 | 240 |
| 50 | 200 | 160 | 125 | 100 | 205 | 3`26 | 4`26 | 270 | |
| 65 | 220 | 180 | 145 | 120 | 215 | 3`27 | 4`27 | 350 | |
| 80 | 250 | 195 | 160 | 135 | 230 | 3`28 | 4`28 | 400 | |
| 100 | 280 | 230 | 190 | 160 | 270 | 3`29 | 4`29 | 500 | |
| 125 | 320 | 270 | 220 | 188 | 300 | 3`30 | 4`30 | 600 | |
| 150 | 360 | 300 | 250 | 218 | 340 | 3`31 | 4`31 | 900 | |
| 200 | 400 | 360 | 310 | 278 | 400 | 5~34 | 4`32 | 1100 | |
| Q41F-40P(R) | 15 | 130 | 95 | 65 | 45 | 60 | 2`16 | 4`33 | 40 |
| 20 | 140 | 105 | 75 | 55 | 65 | 2`16 | 4`34 | 51 | |
| 25 | 150 | 115 | 85 | 65 | 90 | 2`18 | 4`35 | 58 | |
| 32 | 180 | 135 | 100 | 78 | 105 | 3`18 | 4`36 | 66 | |
| 40 | 200 | 145 | 110 | 85 | 170 | 3`18 | 4`37 | 76 | |
| 50 | 220 | 160 | 125 | 100 | 230 | 3`20 | 4`38 | 88 | |
| 65 | 250 | 180 | 145 | 120 | 250 | 3`21 | 4`39 | 110 | |
| 80 | 280 | 195 | 160 | 135 | 250 | 3`22 | 4`40 | 121 | |
| 100 | 320 | 230 | 190 | 160 | 295 | 3`23 | 4`41 | 150 | |
| 125 | 400 | 270 | 220 | 188 | 330 | 3`24 | 4`42 | 176 | |
| 150 | 400 | 300 | 250 | 218 | 375 | 3`25 | 4`43 | 204 | |
| 200 | 550 | 375 | 320 | 282 | 440 | 3`26 | 4`44 | 260 | |
Product Image
Hot Selling Products
|
|
|
| |
Factory View
Our Services
Primary Competitive Advantages:
1. Our company has several years's experience in producing all kind of forged brass ball valve and fittings , we have the self-operated importing and exporting rights .
2.Our products are approved by ACS ,CE ,ISO9001/14001 approved .
3.We can produce the fire fighting products according to our customer's requirement, and if the order is large , we don't charge any mould fee .
4. We insist to popularize our brand"Minshan" to our customers , and welcome to become our sales agency , We'll give our customer the special prices once the customer become our approved agency .
Outstanding Service:
Fast feedback: we promise to reply your inquiry within 24hours
Positive cooperation with your esteemed company
Good suggestions to your choice if necessary with our own rich experience
OEM accepted
Your visited to factory welcomed!
FAQ
Q: Are you a factory or trading company?
We are factory specialized on fire fighting equipment.
Q: Can I get a sample?
For certainly, please contact us for detail.
Q: What's the terms of the payment?
T/T, L/C, Western Union, MoneyGram, etc.
