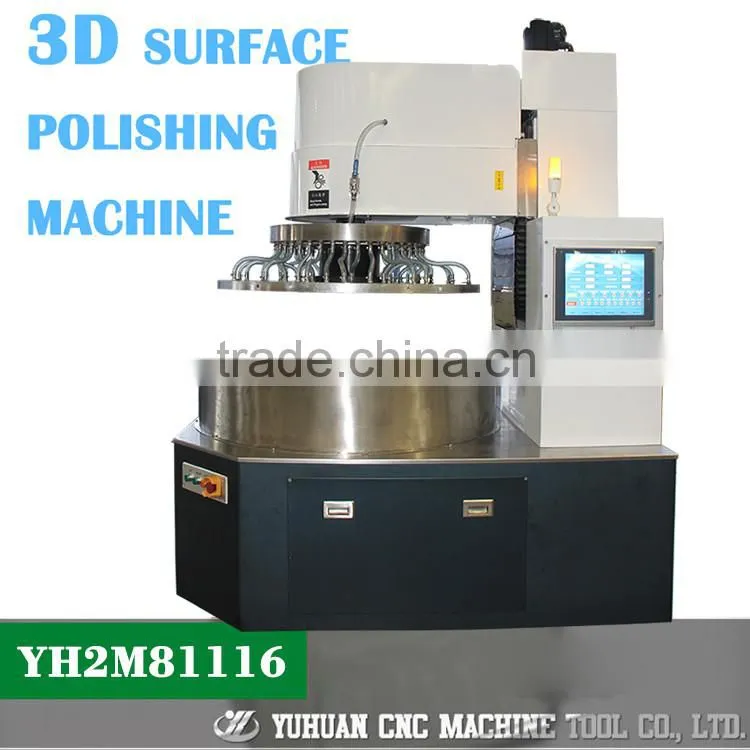

3D Glass Polishing Machine Universal Milling Machine
- Shenzhen Guangzhou Shanghai etc.
- Money Gram
You May Like
-
High Precision Vertical Double-side Surface Polishing/lapping Machine for Sapphire Glass
-
China Supplier Milling Machine for Sale
-
YHSJS380 Holoaxial Servo Robot
-
High Precision Dispenser Arm/ Cnc Robot for Industrial
-
Best Selling Machine Automatic Robot
-
CNC Valve Grinder From China Manufacturer Grinder
Product Details
| Condition | New | Type | Surface Grinding Machine | |
| CNC or Not | CNC | Place of Origin | Hunan, China | |
| Brand Name | YUHUAN | Model Number | YH2M81116 | |
| Voltage | 380V 50Hz | Dimension(L*W*H) | 1900*1500*2800mm(2.85㎡) | |
| Weight | 3000kg | Certification | ISO9001:2008 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Main purpose
This machine is mainly used for 2.5D and 3D smartphone glass cover polishing. This machine is provided with revolution and auto rotation for carrier,meanwhile polishing plate’s lifting motion is driven by servo motor and ball screws,productivity is improved,consumables’ lifetime is extended, and higher qualification rate can be achieved.
Technical characters:
1. This machine is kind of 5-station vacuum absorption polishing machine.Put work piece on carrier jig,work piece will be fixed on jig by vacuum absorption,brush plate is fixed on polishing plate,which reversely rotates with the carrier,polishing liquid flows onto carrier through spray pipe,make use of friction between brush,polishing liquid and glass to polish glass camber surface.
2. This machine’s carrier and polishing plate are precisely controlled by CNC program,continuous speed governing is realized according to technological requirements,in order to satisfy different polishing process requirements.Revolution and autorotation are controlled by variable frequency motor,revolution speed is 1-12r/min,autorotation speed is 4-45r/min.Polishing plate is driven by independent variable motor,rotation speed is 0-90r/min,meanwhile polishing plate’s lifting pressure is driven by servo-motor,ball screw and linear guideway,polishing plate’s up and down movement is precisely controlled by program,keep pressure stable to ensure polishing precision.
3.Anti-corrosion materials such as stainless steel or aluminum alloy are adopted for this machine’s flume,panel,basin which are in contact with polishing liquid.
4. Machine vacuum system is equipped with digital vacuum pressure gauge,real-time monitoring negative pressure,in order to prevent work piece from falling down if pressure is not enough.
5. Machine is equipped with vacuum air&liquid separating device for automatic draining.
6.This machine adopts HMI(15Inch touch screen)with PLC,operation is convenient and efficient with friendly interface and huge amount of information.
Item | Unit | Spec. |
Lower plate size(OD×Thickness) | mm | φ400mm×35mm(Aluminum alloy) |
Upper plate size(OD) | mm | φ1135mm |
Polishing head numbers |
| 5 |
Carrier autorotation speed | r/min | 2~45±2 r/min |
Carrier plate revolution speed | r/min | 1~12 r/min |
Polishing plate rpm | r/min | 2~90±2r/min |
Polishing plate lifting stroke | mm | 350mm |
Overall dimension(L×W×H) | mm | 1900×1500×2800mm |
Total weight | kg | 3000Kg |
Ground Bearing | 3000/2.85=1052 |
1,The process can be applied for:2.5D and 3D glass curve surface polishing;
2,Compared machine type: Overturn Lapping Machine and YH2M81116/ YH2M8118 Lapping Machine
3,Compared items:
Compared items | Overturn Lapping Machine (YH or Others) | YH2M81116 (YH) | YH2M8118 (YH) |
Applied for | 2.5D polishing | 2.5D and 3D | 2.5D and 3D |
Polishing method | Lower Plate polishing | Up Plate polishing | Up Plate polishing |
Machine stability | Low rigidity,big vibration | Stable | Stable |
Machine fault rate | High | Low | Low |
Machine operation height | 1300-1500 | 900 | 960 |
Auto loading&unloading | No | No | Available |
Our company has modern production workshop, Complex efficient grinding Laboratory , Computer Design Studio , has a variety of testing instruments and equipment over 30 sets of experimental facilities , a variety of processing equipment over 60 sets .
1.Fumigated wooden packages with IPPC stamp.
2.Special packing requirements available.
The R&D team has about over 50 engineers, occupied 20% of total staffs. Includes 19 SenierMechanical engineers( 4with doctor’s degree,8 with master’s degree),7 Senierelectrical engineers,5 CNC soft engineers
- The workshop and office area covers 20K Sqmeters.
- With over 270 staffs, including over 50 R&D technical engineers.
- Main products output more than 1000 sets per year.
Our R & D team establish a long - term partnership with National University of Defense Technology , Dalian University of Technology , Hunan University , Central South University , and other renowned institutions . Yuhuan is also research base for Hunan University’s doctoral student , get 5—9 patents per year .
- has got 36 related patents
- A certificate of international standard products in 2005
- has passed ISO9001 : 2000 international quality system certification, has estabished corporate product standards
Our products are widely used in automotive, IT electronic, military, and aerospace, shipbuilding, bearings,seals, household appliances, and other key areas of national economy.
Our products have been in great demand by more than twenty provinces including Taiwan all around China, and Vietnam, Portugal, Russia, Kenya, Brazil and other countries. We have obtained high prestige from our customers for the high quality products, satisfactory after-sales services and competitive price.
3. We will offer free the training for machine’s management ,operation , maintenance to user’s related people.
Please feel free to contact us,we will reply within 24h!
We want to know:
How much the laser power you need
What materials do you need to process
The Cutting size and thickness
Contact Us
- Yuhuan CNC Machine Tool Co., Ltd.
- Contact nameSimon Xie Chat Now
- Phone86-731-83201588
- AddressNo. 9, Yongyang Road, Manufacturing Industry Base, Changsha, Hunan, China
